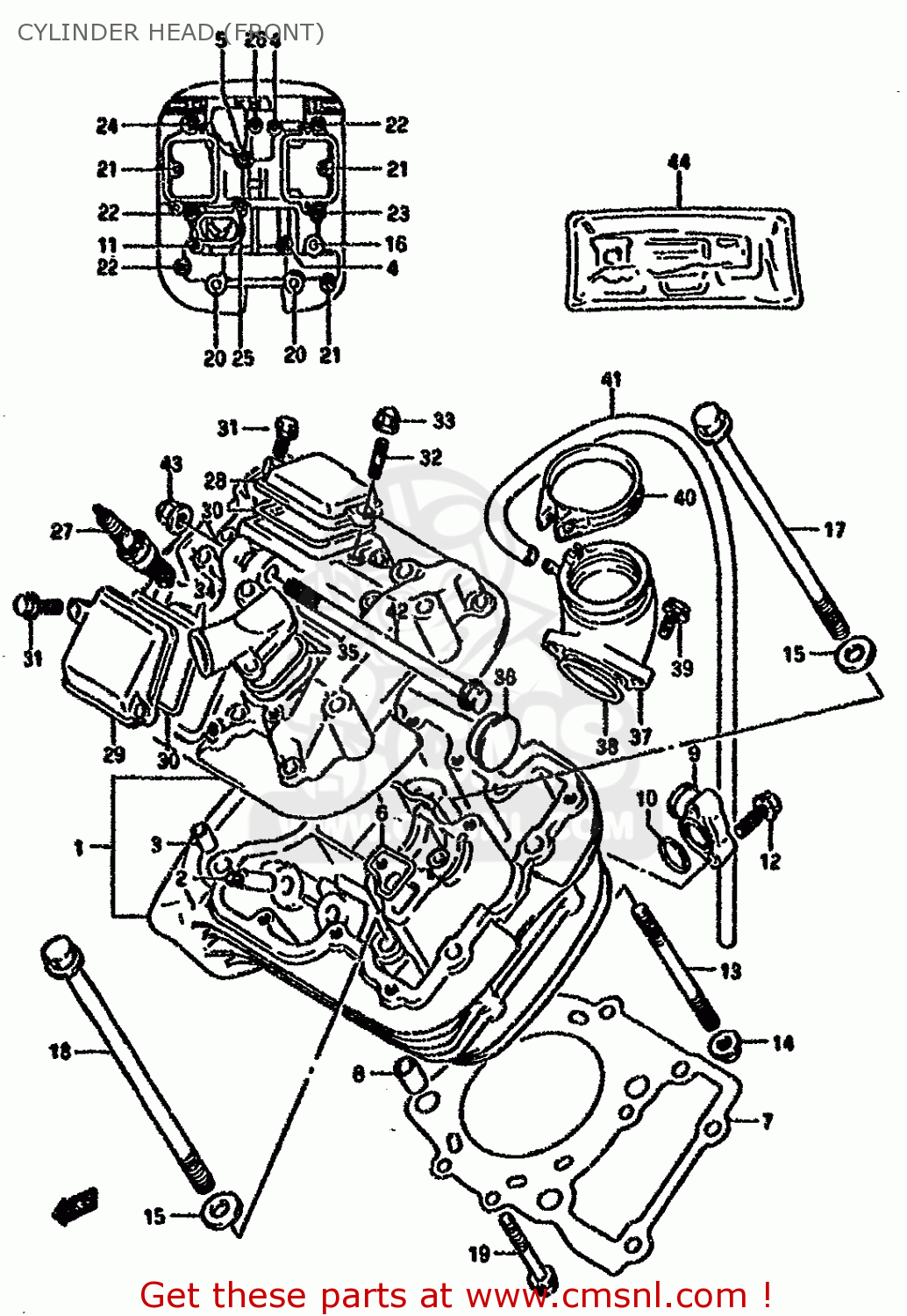

CYLINDER HEAD (FRONT)

ref

parte #

descripción

cantidad

1-1

1110145C00
ref: 1-1
MODEL L/M/N/P

HEAD ASSY,CYLINDER FRONT

€ 712.00

1-2

1110145C21
ref: 1-2
MODEL R/T

HEAD ASSY,CYLINDER FRONT

€ 869.00

2

1111538A71
ref: 2

GUIDE,VALVE

€ 18.50

3

0920611011
ref: 3

PIN(11X14)

€ 4.50

4-1

0910306101
ref: 4-1
MODEL L/M/N/P

BOLT(6X50)

€ 2.00

4-2

0910306502
ref: 4-2
MODEL R/T

BOLT (6X50)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.00

6

1112338A00
ref: 6

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

7

1114145C00
ref: 7

GASKET,CYLINDER HEAD FR (NAS)

€ 45.50

8

0421113189
ref: 8

PIN

€ 2.00

9

1116945C10
ref: 9
-11169-45C00

UNION,CYLINDER HEAD WATER

€ 27.00

10

0928018004
ref: 10

O RING(D:2.4,ID:17.8)

€ 4.00

11-1

0155006207
ref: 11-1
MODEL L/M/N/P

BOLT

€ 2.00

11-2

0155006203
ref: 11-2
MODEL R/T

BOLT

€ 1.50

12-1

0154706257
ref: 12-1
MODEL L/M/N/P

BOLT

€ 1.50

12-2

0154706253
ref: 12-2
MODEL R/T

SCREW

€ 2.00

13

0910808144
ref: 13

BOLT,STUD

€ 4.00

14-1

0831610087
ref: 14-1
MODEL L/M/N/P

NUT

€ 2.00

14-2

0831610083
ref: 14-2
MODEL R/T

NUT

€ 2.50

15

0916010039
ref: 15

WASHER(10.5X22X2.3)

€ 2.00

16-1

0910308040
ref: 16-1
MODEL L/M/N/P

BOLT(8X140)

€ 4.00

16-2

0910308502
ref: 16-2
MODEL R/T

BOLT (8X140)

€ 3.00

17

0910310133
ref: 17

BOLT(10X155)

€ 7.50

18

0910310134
ref: 18

BOLT(10X165)

€ 7.50

19-1

0155006407
ref: 19-1
MODEL L/M/N/P

BOLT

€ 3.00

19-2

0155006403
ref: 19-2
MODEL R/T

BOLT

€ 2.00

20

0910308501
ref: 20

BOLT 8X235

€ 8.50

21-1

0155006257
ref: 21-1
MODEL L/M/N/P

BOLT

€ 1.50

21-2

0155006253
ref: 21-2
MODEL R/T

BOLT

€ 1.50

22-1

0155006307
ref: 22-1
MODEL L/M/N/P

BOLT

€ 2.00

22-2

0155006303
ref: 22-2
MODEL R/T

BOLT

€ 2.00

23-1

0712006307
ref: 23-1
MODEL L/M/N/P

BOLT

€ 2.50

23-2

0712006303
ref: 23-2
MODEL R/T

BOLT

€ 3.00

24-1

0155006407
ref: 24-1
MODEL L/M/N/P

BOLT

€ 3.00

24-2

0155006403
ref: 24-2
MODEL R/T

BOLT

€ 2.00

25

0910306102
ref: 25

BOLT(6X55)

€ 2.00

26-1

0910306101
ref: 26-1
MODEL L/M/N/P

BOLT(6X50)

€ 2.00

26-2

0910306502
ref: 26-2
MODEL R/T

BOLT (6X50)

€ 2.00

27-1

0948200334
ref: 27-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

27-2

0948200335111
ref: 27-2

SPARK PLUG X24EPR-U9

€ 4.00

27-3

0948200354
ref: 27-3
OPT

PLUG,SPARK(DPR7EA-9)

€ 4.00

27-4

0948200355111
ref: 27-4
OPT

SPARK PLUG X22EPR-U9

€ 4.00

27-5

0948200330
ref: 27-5
OPT

PLUG,SPARK(DPR9EA-9)

€ 4.00

27-6

0948200331111
ref: 27-6
OPT

SPARK PLUG X27EPR-U9

€ 4.00

28-1

1117545C00
ref: 28-1
MODEL L/M/N

CAP,INSPECTION,INTAKE

€ 9.50

28-2

1117538A10
ref: 28-2
MODEL P/R/T

CAP,INSP.INT

€ 13.50

29-1

1117645C00
ref: 29-1
MODEL L/M/N

CAP,INSPECTION,EXHAUST

€ 14.00

29-2

1117638A10
ref: 29-2
MODEL P/R/T

CAP,INSPECTION,EXHAUST

€ 14.00

30

1117738A00
ref: 30

GASKET,INSPECTION CAP (NAS)

€ 4.00

31-1

0154706207
ref: 31-1
MODEL L/M/N/P

BOLT

€ 1.50

31-2

0154706203
ref: 31-2
MODEL R/T

SCREW

€ 2.00

32

0142106168
ref: 32

STUD 6X16

€ 2.50

33-1

0831320067
ref: 33-1
MODEL L/M/N/P

NUT

€ 1.50

33-2

0831320063
ref: 33-2
MODEL R/T

NUT

€ 2.00

34-1

1118145C00
ref: 34-1
MODEL L/M/N

UNION,WATER OUTLET

€ 33.00

34-2

1118145C10
ref: 34-2
MODEL P/R/T

UNION,WATER OUTLET

€ 33.00

35

1118238A00
ref: 35

GASKET,WATER OUTLET UNION (NAS)

€ 2.00

36

0924130004
ref: 36

PLUG(OD:30)

€ 5.00

37-1

1311045C00
ref: 37-1
MODEL L/M/N/P/R

PIPE,INTAKE

€ 87.00

37-2

1311045C01
ref: 37-2
MODEL T

PIPE COMP,INTAKE,FRONT

€ 87.00

38

0928040003
ref: 38

O-RING (D:2.4 ID:39.7)

€ 3.00

39

0155006163
ref: 39

BOLT

€ 2.50

40

0940252501
ref: 40
-13170-05A00

CLAMP

€ 8.00

41

093525090300B
ref: 41
L:2000-730

HOSE(5X9X2000)

€ 23.00

42

0910308268
ref: 42

BOLT,ENGINE MOUNTING (8X150)

€ 4.50

43-1

0915908064
ref: 43-1
MODEL L/M/N/P

NUT (8MM)

€ 5.50

43-2

0915908074
ref: 43-2
MODEL R/T

NUT

€ 5.50

44-1

1140245814
ref: 44-1

GASKET SET (NAS)

€ 255.50

44-2

1140245823
ref: 44-2
E18

GASKET SET

€ 203.50

todas las asambleas
