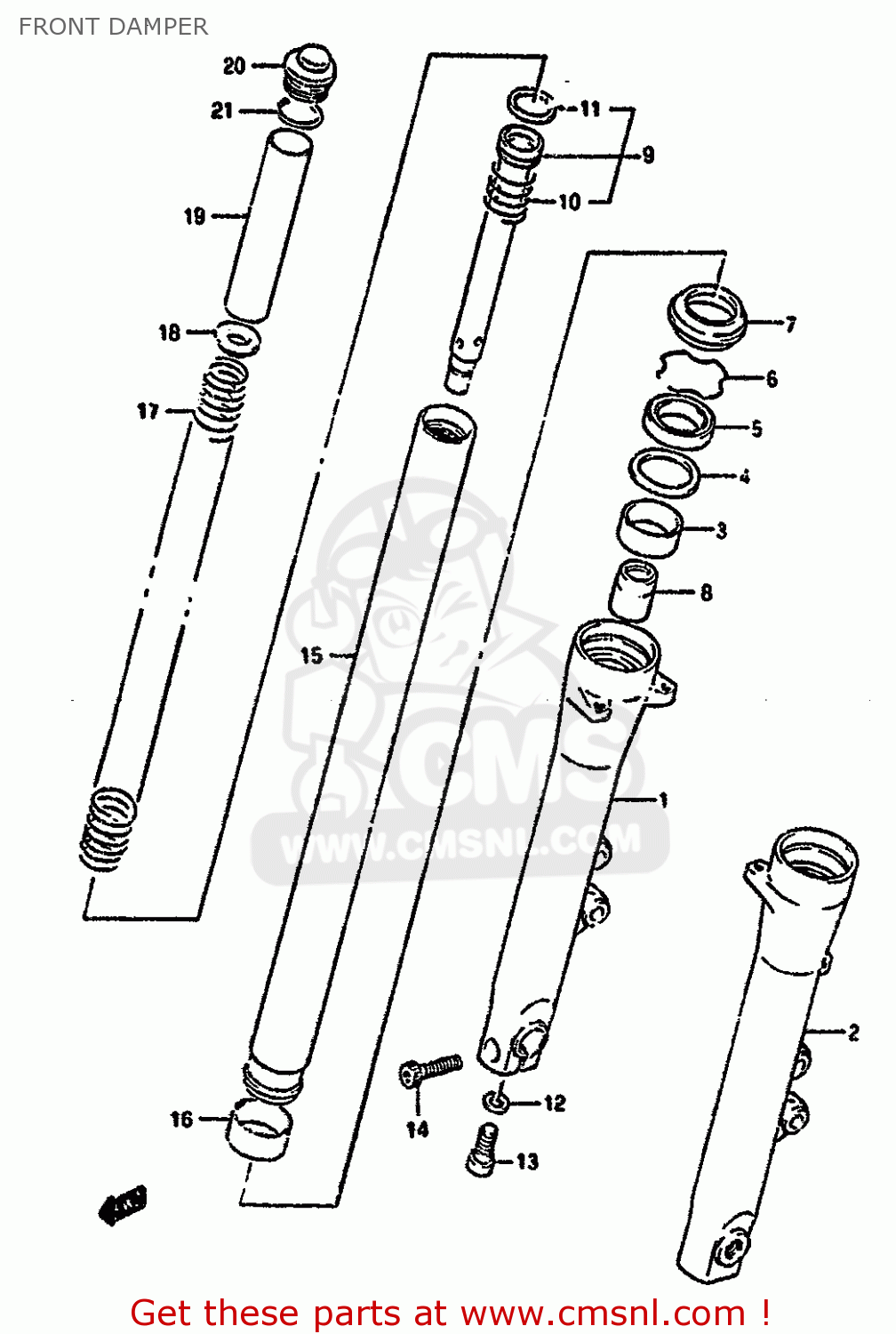

FRONT DAMPER

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

Front damper diagrama GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

los precios están en EUR

ref

parte #

descripción

cantidad

5110326D20
ref: 0

DAMPER ASSY,RH

€ 660.50

5110426D20
ref: 0

DAMPER ASSY,LH

€ 576.00

5113026D00
ref: 1

TUBE,OUTER,RIGHT

€ 425.00

5114026D00
ref: 2

TUBE,OUTER,L

€ 454.50

5116740C00
ref: 3

METAL,SLIDE

€ 12.00

5115814200
ref: 4

WASHER

€ 4.00

5115340C00
ref: 5

OIL SEAL,FRONT FORK

€ 13.50

5115614200
ref: 6

RING,STOPPER

€ 3.50

5117340C00
ref: 7

SEAL,DUST

€ 16.00

5119506C00
ref: 8

PIECE,OIL LOCK

€ 12.00

5114626D00
ref: 9

CYLINDER

€ 58.50

5117726D00
ref: 10

SPRING,REBOUND

€ 6.00

5119631D00
ref: 11

RING,PISTON

€ 5.50

5114814200
ref: 12

GASKET (NAS)

€ 2.00

5114714200
ref: 13

BOLT(14X25)

€ 5.50

0713008407
ref: 14

BOLT

€ 3.50

5111026D00
ref: 15

TUBE,INNER

€ 279.50

5112140C00
ref: 16

PISTON

€ 15.50

5117126D00
ref: 17

SPRING,MAIN

€ 52.50

5117226D00
ref: 18

GUIDE,SPRING

€ 7.00

5117626D10
ref: 19

SPACER

€ 8.50

5135131D00
ref: 20

CAP,FORK

€ 38.50

5111714200
ref: 21

O RING

€ 2.00

FRONT DAMPER

todas las asambleas
