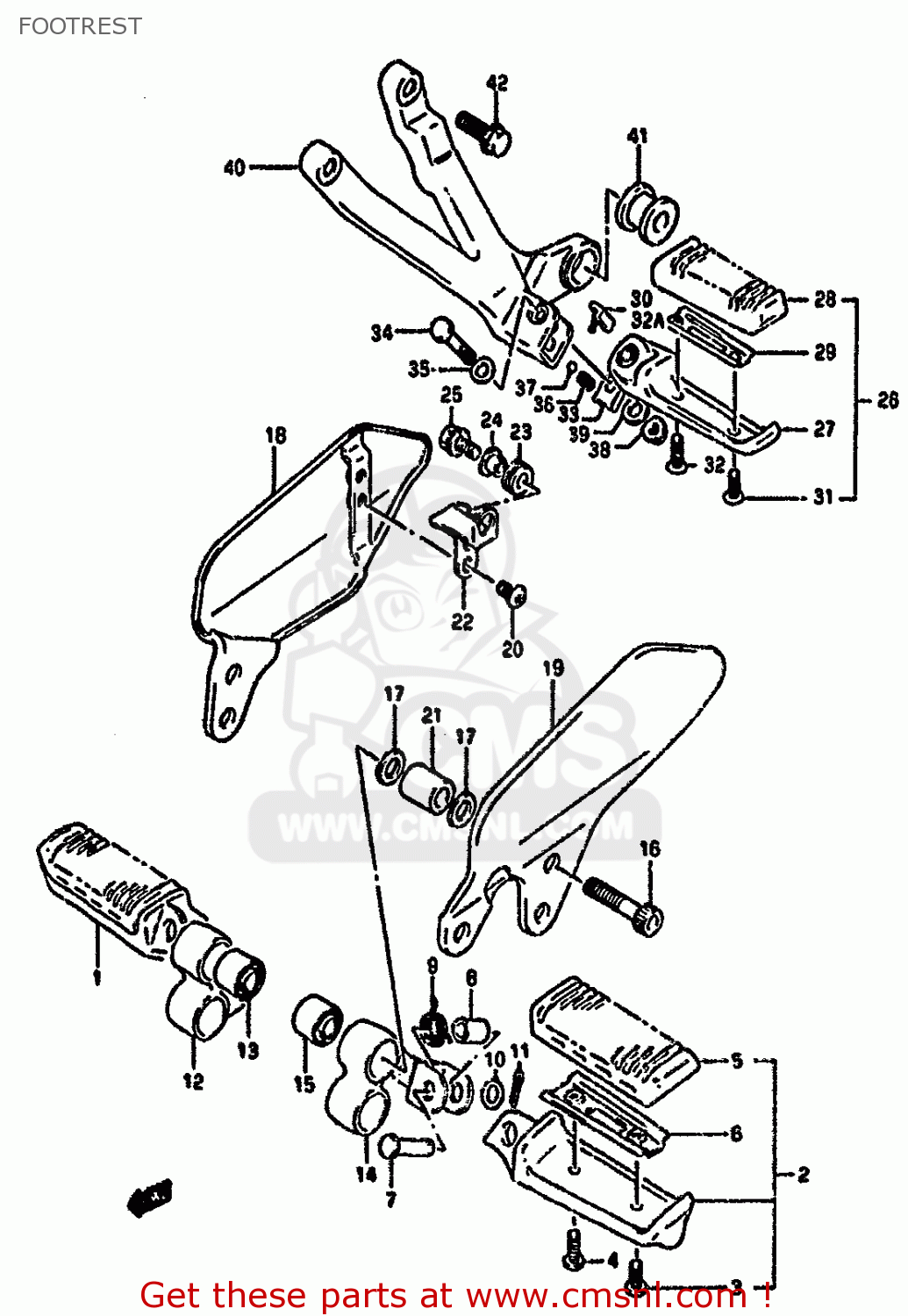

FOOTREST

ref

parte #

descripción

cantidad

1

4350145C00
ref: 1

FOOTREST ASSY,FR,R

€ 109.50

2

4350245C00
ref: 2

FOOTREST ASSY,FR,L

€ 92.00

3

0211205123
ref: 3

SCREW

€ 1.00

4

0211205163
ref: 4

SCREW

€ 1.50

5-1

4355131301
ref: 5-1
MODEL M/N/P

RUBBER,FOOTREST

€ 22.50

5-2

4355031300
ref: 5-2
MODEL R

RUBBER,FOOTREST

€ 22.50

6

4358033301
ref: 6

PLATE,FR FOOTREST RUBBER

€ 4.50

7

0920008057
ref: 7

PIN

€ 2.50

8

0918008149
ref: 8

SPACER(8.1X12X22)

€ 5.50

9

0944818022
ref: 9

SPRING

€ 3.00

10-1

0832211084
ref: 10-1
MODEL M/N/P

WASHER

€ 1.50

10-2

0832201087
ref: 10-2
MODEL R

WASHER

€ 1.50

11

0411120208
ref: 11

PIN 20X20

€ 1.00

12

4353026D00
ref: 12

HOLDER,FRONT FOOTREST

€ 131.00

13

0931910047
ref: 13

BUSH

€ 8.00

14

4354026D00
ref: 14

HOLDER COMP,FRONT FOOT

€ 125.50

15

0931910047
ref: 15

BUSH

€ 8.00

16-1

0711010457
ref: 16-1
MODEL M/N/P

BOLT

€ 3.50

16-2

0712010457
ref: 16-2
MODEL R

BOLT

€ 3.50

17

0916010057
ref: 17

WASHER

€ 1.50

18

4356026D01
ref: 18
43560-26D00

GUARD,FRONT FOOTREST,RIGHT

€ 87.00

19

4357026D00
ref: 19

FOOT GUARD,LH

€ 75.00

20-1

0912506071
ref: 20-1
MODEL M

SCREW(6X8)

€ 2.50

20-2

0214206088
ref: 20-2
MODEL N/P

SCREW, PLATE

€ 1.00

20-3

0214206083
ref: 20-3
MODEL R

SCREW

€ 1.50

21

4359726D00
ref: 21

SPACER,FRONT FOOTREST

€ 8.50

22

4358126D00
ref: 22

PLATE,FRONT FOOTREST GUARD

€ 12.00

23

0932008051
ref: 23

CUSHION

€ 6.00

24

0916906063
ref: 24

WASHER

€ 2.50

25-1

0911606065
ref: 25-1
MODEL M

BOLT

€ 1.50

25-2

0911606111
ref: 25-2
MODEL N/P/R

BOLT 6X20,WITH PLAIN WASHER

€ 1.50

26-1

4360026D01
ref: 26-1
43600-26D00

FOOTREST ASSY,PILLION,R

€ 83.50

26-2

4370026D01
ref: 26-2
43700-26D00

FOOTREST ASSEMBLY,PILLION

€ 44.50

27-1

4361026D00
ref: 27-1

BAR COMP,PILLION FOOTREST

€ 83.50

27-2

4371026D00
ref: 27-2

BAR COMP,PILLION FOOTREST

€ 44.50

28

4361231300
ref: 28

RUBBER,RR FOOTREST

€ 11.00

29

4363245501
ref: 29

PLATE,RUBBER STOPPER

€ 3.00

30

4354226D01
ref: 30
MODEL M

CUSHION,PILLION FOOTREST

€ 28.00

31-1

0212205127
ref: 31-1
MODEL M/N/P

SCREW

€ 2.50

31-2

0212205123
ref: 31-2
MODEL R

SCREW

€ 2.00

32-1

0213205167
ref: 32-1
MODEL M/N/P

SCREW 5X16

€ 1.50

32-2

0212205163
ref: 32-2
MODEL R

SCREW,SUNVISOR

€ 2.00

32A

4354226D01
ref: 32A
MODEL N/P/R

CUSHION,PILLION FOOTREST

€ 28.00

33-1

4363545C00
ref: 33-1

PLATE,SPRING STOP,R

€ 3.00

33-2

4373545C00
ref: 33-2

PLATE,SPRING STOP,L

€ 2.00

34

0911106048
ref: 34

BOLT(6X45)

€ 3.50

35

0918108004
ref: 35

SHIM(8.2X22X0.2)

€ 2.50

36

0944005028
ref: 36

SPRING

€ 2.50

37

0611108003
ref: 37

BALL

€ 1.00

38

0831931067
ref: 38

NUT

€ 1.50

39

0832201087
ref: 39

WASHER

€ 1.50

40-1

4381126D00
ref: 40-1

BRACKET,PILLION FOOTREST

€ 121.00

40-2

4382126D00
ref: 40-2

BRACKET,PILLION FOOTREST

€ 104.50

41

0931910033
ref: 41
MODEL M

BUSH(10.2X25X19)

€ 6.50

42-1

0713008257
ref: 42-1
MODEL M

BOLT

€ 2.50

42-2

0155008257
ref: 42-2
MODEL N/P

BOLT

€ 2.50

42-3

0155008253
ref: 42-3
MODEL R

BOLT

€ 2.50

todas las asambleas
