CAM SHAFT-VALVE

GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

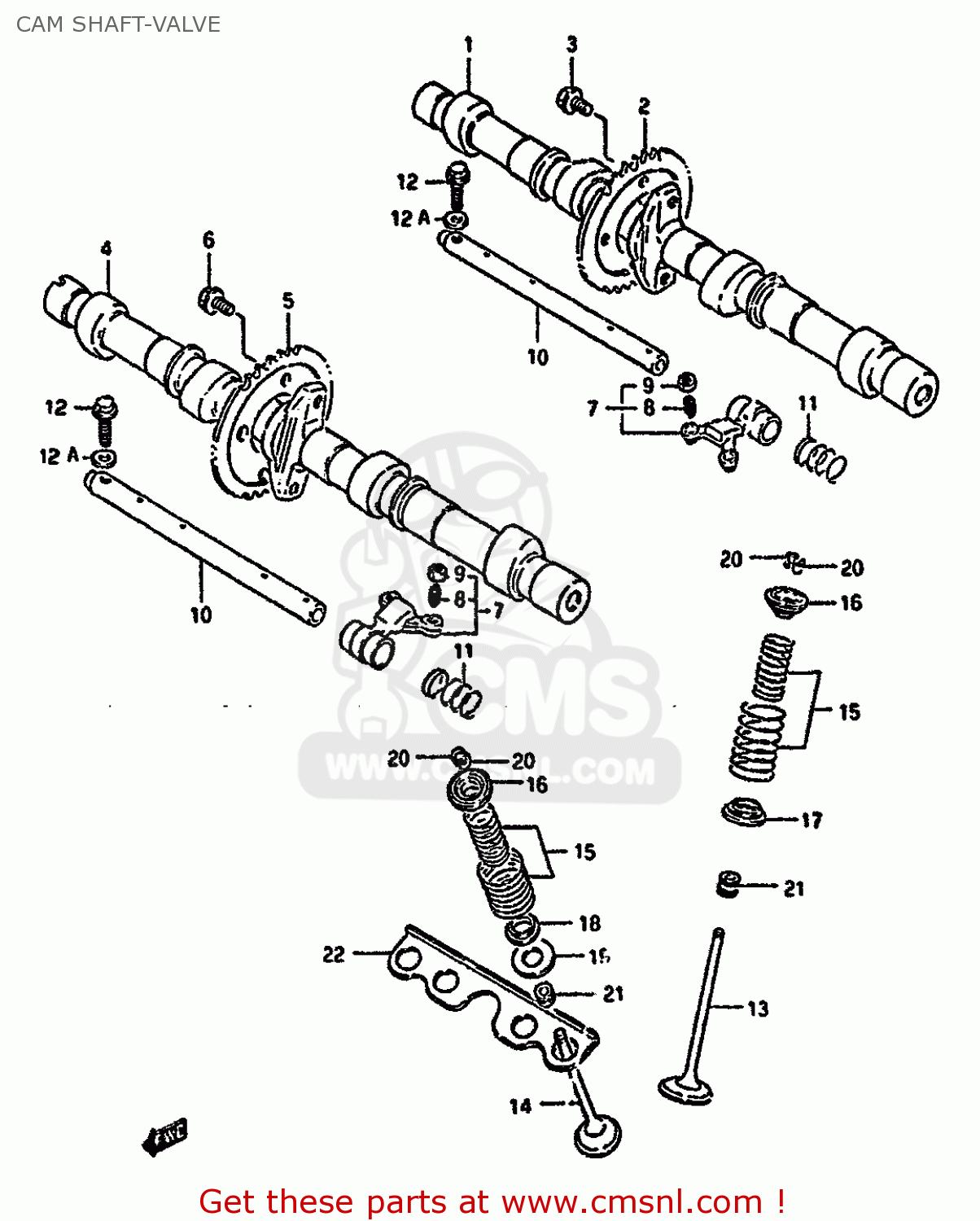

Cam shaft-valve diagrama GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)

CAM SHAFT-VALVE GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
CAM SHAFT-VALVE GSX1100G 1991 (M) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
los precios están en EUR
ref
parte #
descripción
cantidad
1
1271126D00
ref: 1
CAMSHAFT,INTAKE
1271126D00
€ 464.50
2
1274126D00
ref: 2
SPROCKET,CAMSHAFT
1274126D00
€ 52.00
3
0910307001
ref: 3
BOLT(7X11)
0910307001
€ 2.00
4
1272126D00
ref: 4
CAMSHAFT,EXHAUST
1272126D00
€ 277.50
5
1274126D00
ref: 5
SPROCKET,CAMSHAFT
1274126D00
€ 52.00
6
0910307001
ref: 6
BOLT(7X11)
0910307001
€ 2.00
7
1284027A01
ref: 7
12840-27A00
ARM,VALVE ROCKER
1284027A01
€ 46.50
8
1284249201
ref: 8
12842-49210
SCREW,TAPPET ADJUSTING
1284249201
€ 5.00
9
1284304A00
ref: 9
NUT,ADJUSTING
1284304A00
€ 3.00
10
1286127A00
ref: 10
SHAFT,VALVE ROCKER ARM
1286127A00
€ 28.50
11
0944013014
ref: 11
SPRING
0944013014
€ 2.50
12-1
0155006303
ref: 12-1
MODEL M/N/P
BOLT
0155006303
€ 2.00
12-2
0180006303
ref: 12-2
MODEL R
BOLT
€ 0.00
12A
0832201063
ref: 12A
MODEL R
WASHER
0832201063
€ 1.50
13
1291106B02
ref: 13
VALVE,INTAKE
1291106B02
€ 75.00
14
1291206B00
ref: 14
VALVE,EXHAUST
1291206B00
€ 79.00
15
1292006B00
ref: 15
SPRING SET,VALVE
1292006B00
€ 13.00
16
1293127A01
ref: 16
RETAINER,VALVE SPRING
1293127A01
€ 5.00
17
1293381400
ref: 17
SEAT,VALVE SPRING
1293381400
€ 4.00
18-1
1293427A00
ref: 18-1
MODEL M/N
SEAT,VALVE SPRING
1293427A00
€ 6.50
18-2
1293427A01
ref: 18-2
MODEL P/R
SEAT,VALVE SPRING EXH INNER
1293427A01
€ 6.50
19
1293527A00
ref: 19
SEAT,VALVE SPRING EXH OUTER
1293527A00
€ 3.50
20
1293227A00
ref: 20
COTTER VALVE
1293227A00
€ 1.50
21
0928905011
ref: 21
SEAL,OIL(5X10X9.7)
0928905011
€ 5.00
22-1
1113727A01
ref: 22-1
MODEL M/N/P
PLATE
€ 7.50
22-2
1113727A02
ref: 22-2
MODEL R
PLATE,VALVE SEAT
1113727A02
€ 7.50
