STARTING MOTOR (MODEL M/N/R)

GN125 1989 (K) (E01 E04 E18)

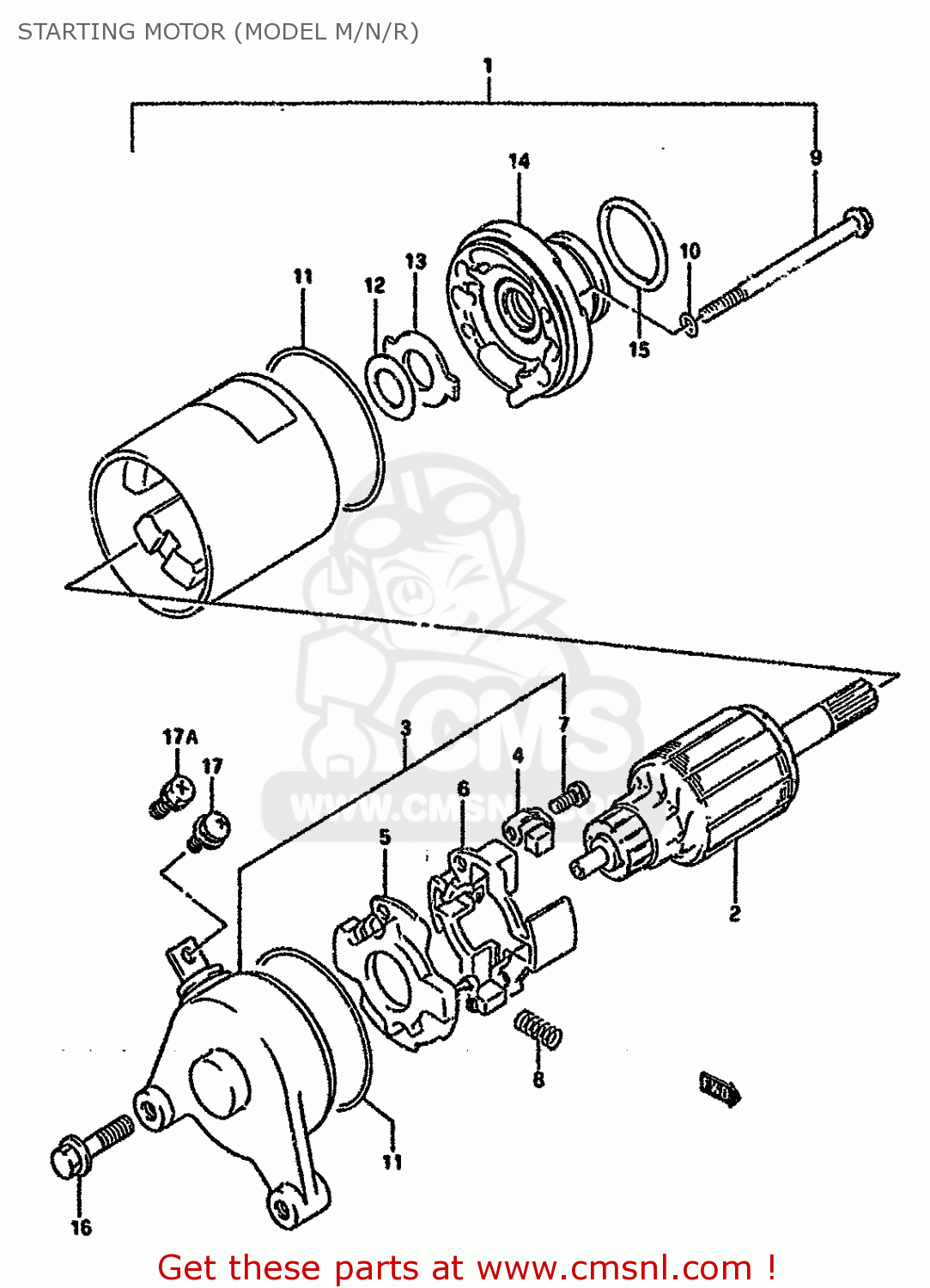

Starting motor (model m/n/r) diagrama GN125 1989 (K) (E01 E04 E18)

STARTING MOTOR (MODEL M/N/R) GN125 1989 (K) (E01 E04 E18)
STARTING MOTOR (MODEL M/N/R) GN125 1989 (K) (E01 E04 E18)
los precios están en EUR
ref
parte #
descripción
cantidad
1-1
3110005320
ref: 1-1
MODEL M/N
MOTOR ASSEMBLY,STARTING
€ 842.50
1-2
3110005500
ref: 1-2
MODEL R
MOTOR ASSEMBLY,STARTING
€ 842.50
2
3131011D00
ref: 2
ARMATURE
€ 248.50
3-1
3117505320
ref: 3-1
MODEL M/N
FRAME ASSEMBLY,COMMUTATOR
€ 62.50
3-2
3117529B00
ref: 3-2
MODEL R
FRAME ASSEMBLY,COMMUTATOR
€ 62.50
4
3113232C10
ref: 4
BRUSH
3113232C10
€ 13.00
5
3113032C20
ref: 5
BRUSH SUB ASSY,STARTER
3113032C20
€ 26.00
6
3113332C10
ref: 6
HOLDER,BRUSH
3113332C10
€ 8.50
7
0211234123
ref: 7
SCREW
0211234123
€ 2.00
8
3113532C10
ref: 8
SPRING
3113532C10
€ 3.50
9
3128132C10
ref: 9
BOLT
3128132C10
€ 8.00
10
3115638300
ref: 10
O RING
3115638300
€ 3.00
11
3126432C10
ref: 11
O RING
3126432C10
€ 8.50
12
3136138300
ref: 12
SHIM
3136138300
€ 1.50
13
3136132C10
ref: 13
PLATE,LOCK
€ 2.50
14-1
3115032C10
ref: 14-1
MODEL M/N
BRACKET
€ 105.50
14-2
3115006C00
ref: 14-2
MODEL R
BRACKET
3115006C00
€ 105.50
15
0928024003
ref: 15
O RING(D:3,ID:24.5)
0928024003
€ 1.50
16
0154706357
ref: 16
BOLT
0154706357
€ 1.50
17
0211275087
ref: 17
MODEL M
SCREW
€ 0.00
17A
0913705004
ref: 17A
MODEL N/R
SCREW(5X8)
0913705004
€ 2.00
21
0832121067
ref: 21
WASHER,LOCK
0832121067
€ 1.50
22
0916006003
ref: 22
WASHER (6.7X16X1.8)
€ 2.00
23
0928024003
ref: 23
O RING(D:3,ID:24.5)
0928024003
€ 1.50
24
0154706307
ref: 24
BOLT
0154706307
€ 2.00
