HEADLAMP (E4 F.NO.140198~)

GN125 1989 (K) (E01 E04 E18)

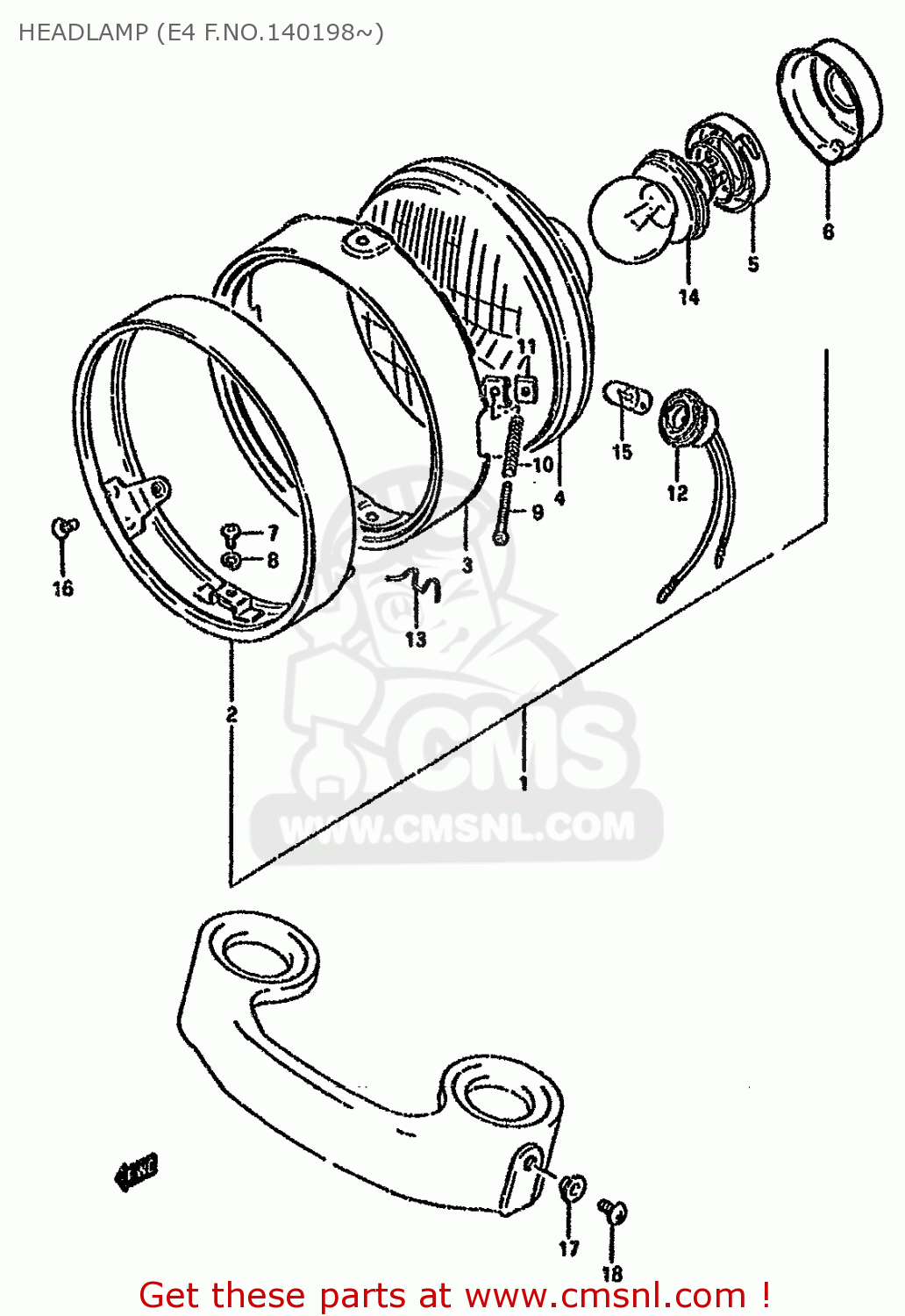

Headlamp (e4 f.no.140198~) diagrama GN125 1989 (K) (E01 E04 E18)

HEADLAMP (E4 F.NO.140198~) GN125 1989 (K) (E01 E04 E18)
HEADLAMP (E4 F.NO.140198~) GN125 1989 (K) (E01 E04 E18)
los precios están en EUR
ref
parte #
descripción
cantidad
1
3510044260999
ref: 1
HEADLAMP ASSY
€ 138.50
2
3511144250
ref: 2
RIM
3511144250
€ 34.50
3
3512729610
ref: 3
RETAINER
3512729610
€ 14.50
4
3512144260
ref: 4
LAMP UNIT
3512144260
€ 67.00
5
3513634670
ref: 5
SETTER,BULB
3513634670
€ 4.00
6
3517972600
ref: 6
COVER,HEADLAMP BULB
3517972600
€ 4.00
7
3513629610
ref: 7
SCREW
3513629610
€ 3.00
8
0832121057
ref: 8
LOCK WASHER
0832121057
€ 2.00
9
3515131610
ref: 9
SCREW
3515131610
€ 4.00
10
3515433630
ref: 10
SPRING
3515433630
€ 2.50
11
3515215611
ref: 11
NUT
3515215611
€ 3.50
12
3611830500
ref: 12
SOCKET
3611830500
€ 9.50
13
3512846720
ref: 13
SPRING
3512846720
€ 4.00
14
0947112048
ref: 14
EXECUTED LOCALLY
BULB(12V45/40W)
0947112048
€ 7.50
15
0947112063
ref: 15
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 5.50
16
0912705013
ref: 16
SCREW(5X12)
0912705013
€ 2.50
17
0916905008
ref: 17
WASHER
0916905008
€ 3.00
18
0214205087
ref: 18
SCREW
0214205087
€ 2.00
