AIR CLEANER

GN125 1989 (K) (E01 E04 E18)

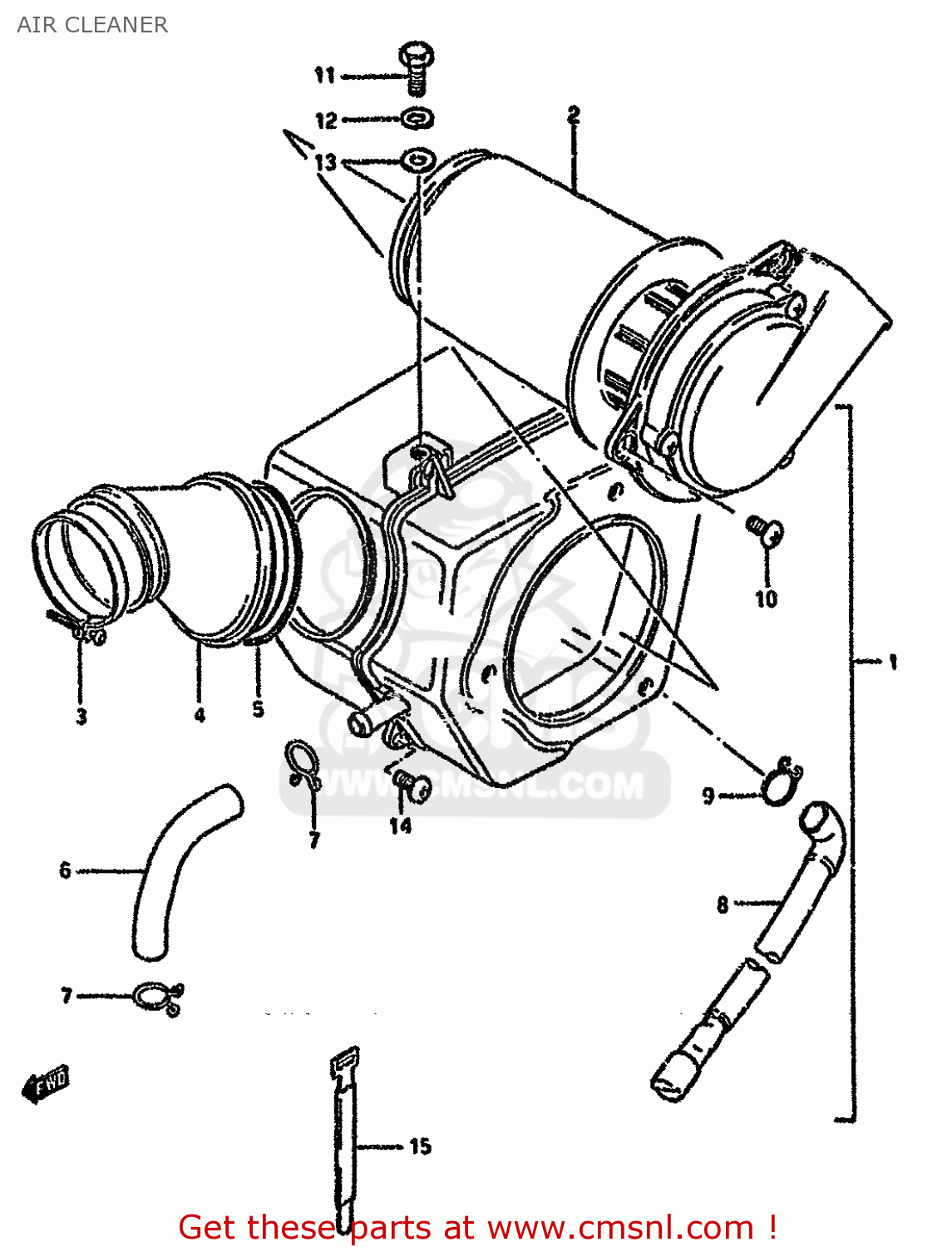

Air cleaner diagrama GN125 1989 (K) (E01 E04 E18)

los precios están en EUR

ref

parte #

descripción

cantidad

1-1

1370005302
ref: 1-1

CLEANER ASSY,AIR

€ 113.00

1-2

1370005380
ref: 1-2
E22

CLEANER ASSY,AIR

€ 120.00

1378038301
ref: 2

FILTER

€ 21.00

0940256208
ref: 3

CLAMP

€ 3.50

1388105300
ref: 4

TUBE,OUTLET

€ 19.50

1382638300
ref: 5

CLAMP,AIR CLEANER SIDE

€ 3.00

6-1

1385305300
ref: 6-1

TUBE,BREATHER

€ 13.00

6-2

1385005380
ref: 6-2
E22

TUBE,BREATHER

€ 13.00

0940114401
ref: 7

CLIP

€ 2.00

1387021308
ref: 8

TUBE,DRAIN

€ 15.50

0940113409
ref: 9

CLIP

€ 2.50

0214205127
ref: 10

SCREW

€ 1.50

0110706167
ref: 11

BOLT

€ 2.00

0832121067
ref: 12

WASHER,LOCK

€ 1.50

0916006006
ref: 13

WASHER

€ 1.50

0214206167
ref: 14

SCREW

€ 1.50

0940711301
ref: 15

CLAMP L:110

€ 5.50
