LEFT CRANKCASE COVER

CMX250C REBEL 1996 (T) USA CALIFORNIA

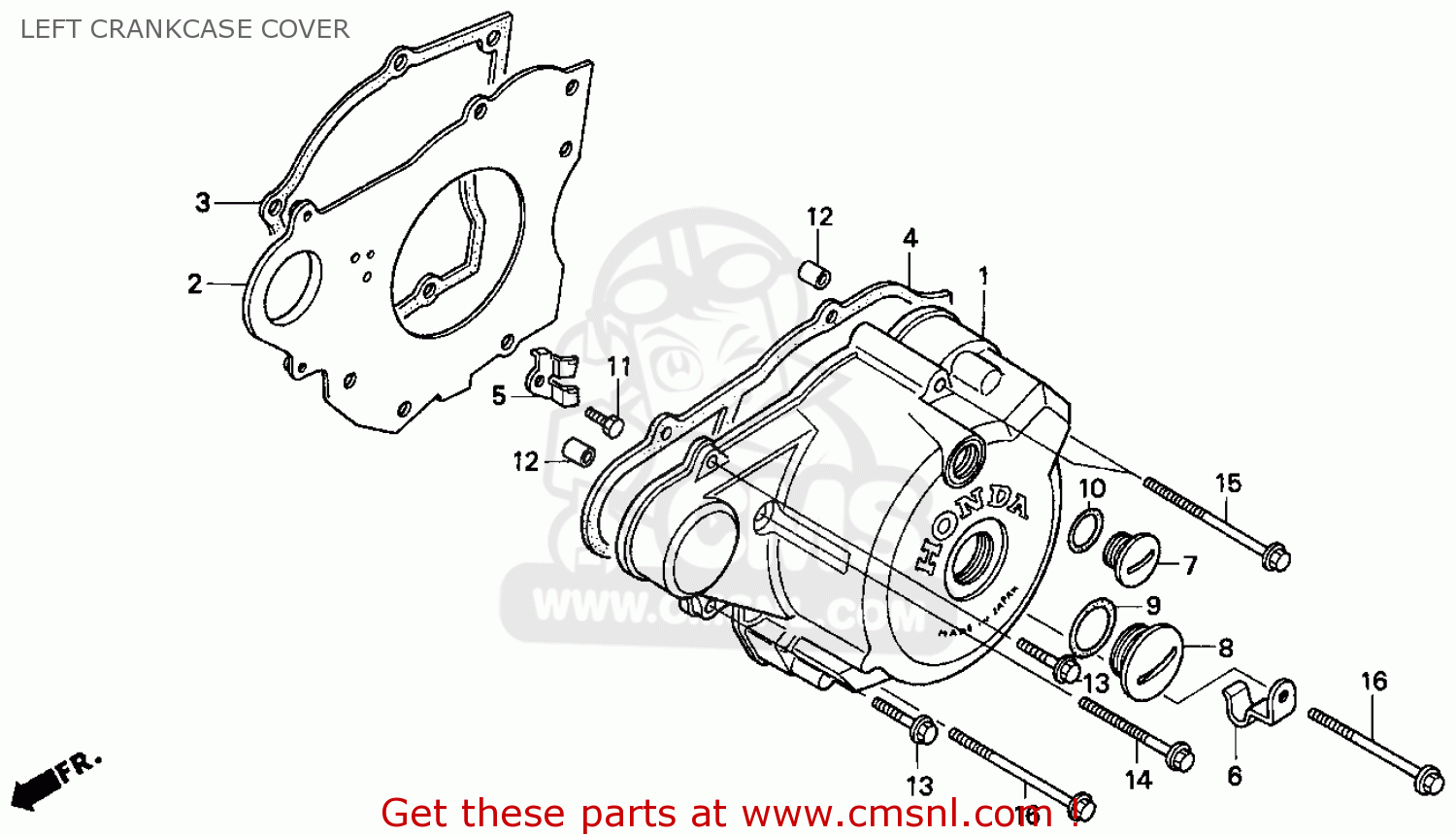

Left crankcase cover diagrama CMX250C REBEL 1996 (T) USA CALIFORNIA

LEFT CRANKCASE COVER CMX250C REBEL 1996 (T) USA CALIFORNIA

los precios están en EUR

ref

parte #

descripción

cantidad

1

11341KB4700
ref: 1

COVER,L,CRANKCASE

€ 237.00

2

11371KB4670
ref: 2

SPACER,L,SIDE

€ 71.00

3

11394KBG771
ref: 3

GASKET,L.CRANKCAS (NAS)

€ 12.50

4

11395KBG771
ref: 4

GASKET,L.SIDE SPA (NAS)

€ 16.50

5

28117402000
ref: 5

PLATE,SPROCKET

€ 4.00

6

32911KB4670
ref: 6

CLIP,START CABLE

€ 5.50

7

90084471000
ref: 7

CAP,A.C.GENERATOR

€ 9.00

8

90087471000
ref: 8

CAP,30MM

€ 15.00

9

91302567003
ref: 9

O RING 27.4-2.4

€ 7.50

10

91303377000
ref: 10

O-RING,13.8X2.5

€ 4.50

11

92101060100A
ref: 11

BOLT,HEX.,6X10

€ 1.00

13

960010602000
ref: 13

BOLT FLANG 6X20

€ 1.50

14

960010604000
ref: 14

BOLT,FLANGE,SH,6X40

€ 1.50

15

960010605000
ref: 15

BOLT,FLANGE,6X50

€ 2.00

16

960010606500
ref: 16

BOLT,FLANGE SH 6X65

€ 2.50
