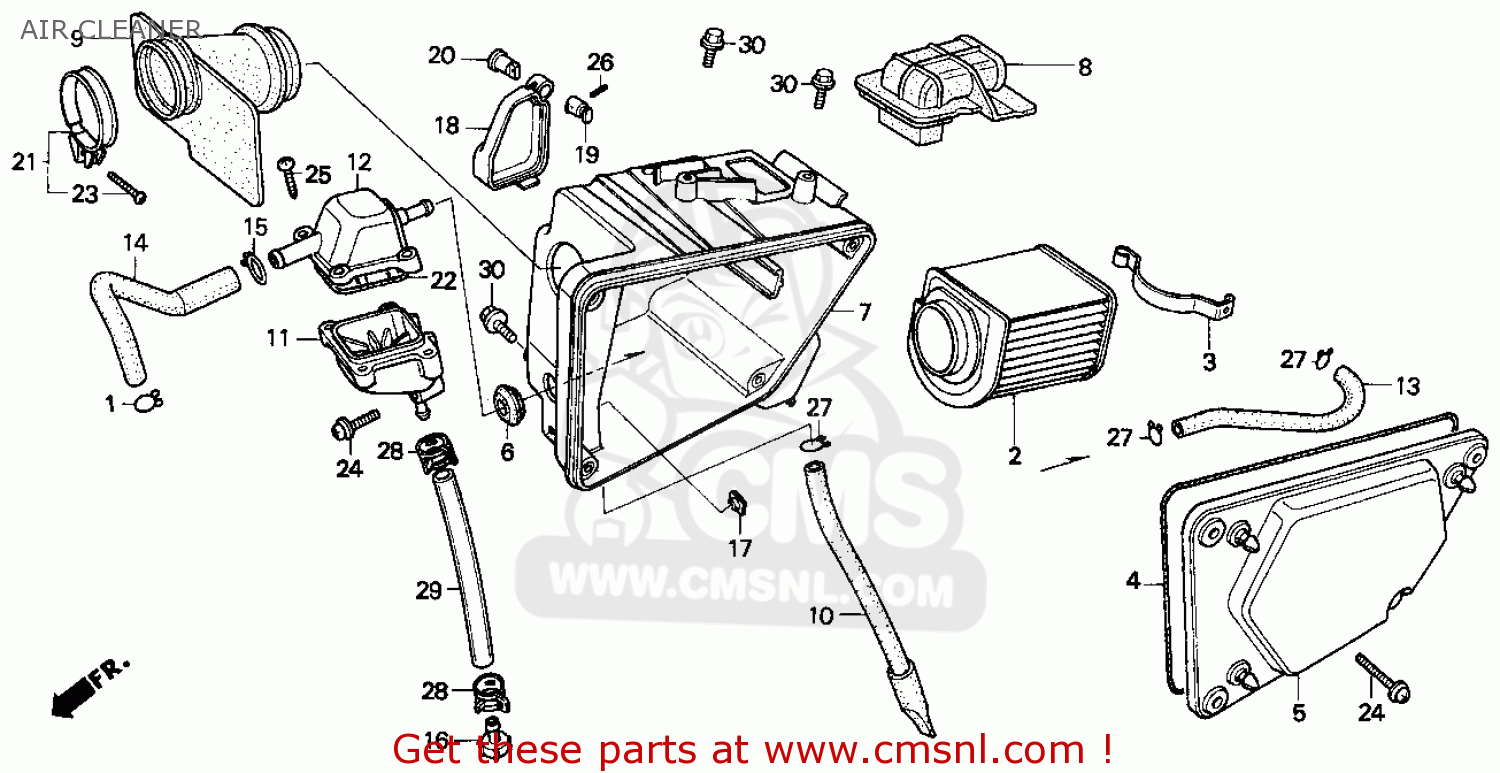

AIR CLEANER

ref

parte #

descripción

cantidad

1

15772292010
ref: 1

CLIP,BRTHR TUBE

€ 2.50

2

17211KR3600
ref: 2

ELEMENT AIR/C

€ 39.50

3

17216KR3000
ref: 3

SPRING,AIR CLEANE

€ 10.00

4

17219KR3000
ref: 4

SEAL AIR/C COVER

€ 5.00

4

17222MN4405
ref: 4

SEAL,AIR/C CVR

€ 5.00

5

17220KR3600
ref: 5

COVER,AIR CLEANER

€ 25.00

6

17225415300
ref: 6

GROMMET, TUBE

€ 4.00

7

17230KR3600
ref: 7
A

CASE COMP.,AIR CL

€ 94.00

7

17230KR3750
ref: 7
AC

HOUSING, AIR CLEANER

€ 95.00

7

17230KR3780
ref: 7
AC

HOUSING, AIR CLEANER

€ 95.00

8

17240KR3000
ref: 8

DUCT,AIR/C

€ 16.00

9

17253KEN670
ref: 9

TUBE,AIR/C.CONN.

€ 17.50

10

17336KR3000
ref: 10

TUBE COMP.,DRAIN

€ 5.00

11

17361KR3770
ref: 11

CHAMBER,BREATHER

€ 14.50

12

17362KR3000
ref: 12

COVER,BREATHER CH

€ 11.00

13

17365KR3000
ref: 13

TUBE B,BREATHER

€ 4.00

14

17368KR3670
ref: 14

TUBE,BREATHER

€ 6.00

15

17369KB4670
ref: 15

CLIP,BRTHR.TUBE

€ 2.50

16

17370382870
ref: 16

PLUG,BRTHR,TUBE

€ 2.00

17

61304958003
ref: 17

NUT,SPECIAL,6X7

€ 4.00

18

83502KR3000
ref: 18

CAP,TOOL BOX

€ 11.50

19

83507422000
ref: 19

BODY,KEY

€ 3.00

20

83508KBG000
ref: 20

STOPPER,KEY BODY

€ 4.00

20

83508438000
ref: 20

STOPPER,KEY BODY

€ 4.00

21

90652GHB710
ref: 21

BAND,AIR CLEANER

€ 5.00

21

9501856250
ref: 21

BAND 56,AIR/C CON

€ 5.00

22

91305KB4670
ref: 22

SEAL,BRTHR CHBR

€ 4.00

23

93500040250G
ref: 23

SCREW,PAN,4X25

€ 1.00

24

938910602807
ref: 24

SCREW-WASHER,6X28

€ 1.00

25

9390135480
ref: 25

SCREW,TAP,5X20

€ 0.50

26

9430520141
ref: 26

PIN,SPRING,2X14

€ 1.50

27

9500202130
ref: 27

CLIP,TUBE,B12.5

€ 1.00

28

950024130008
ref: 28

CLAMP,TUBE,D13

€ 2.50

29

950033702831
ref: 29

V.TUBE,11X15X280

€ 1.50
