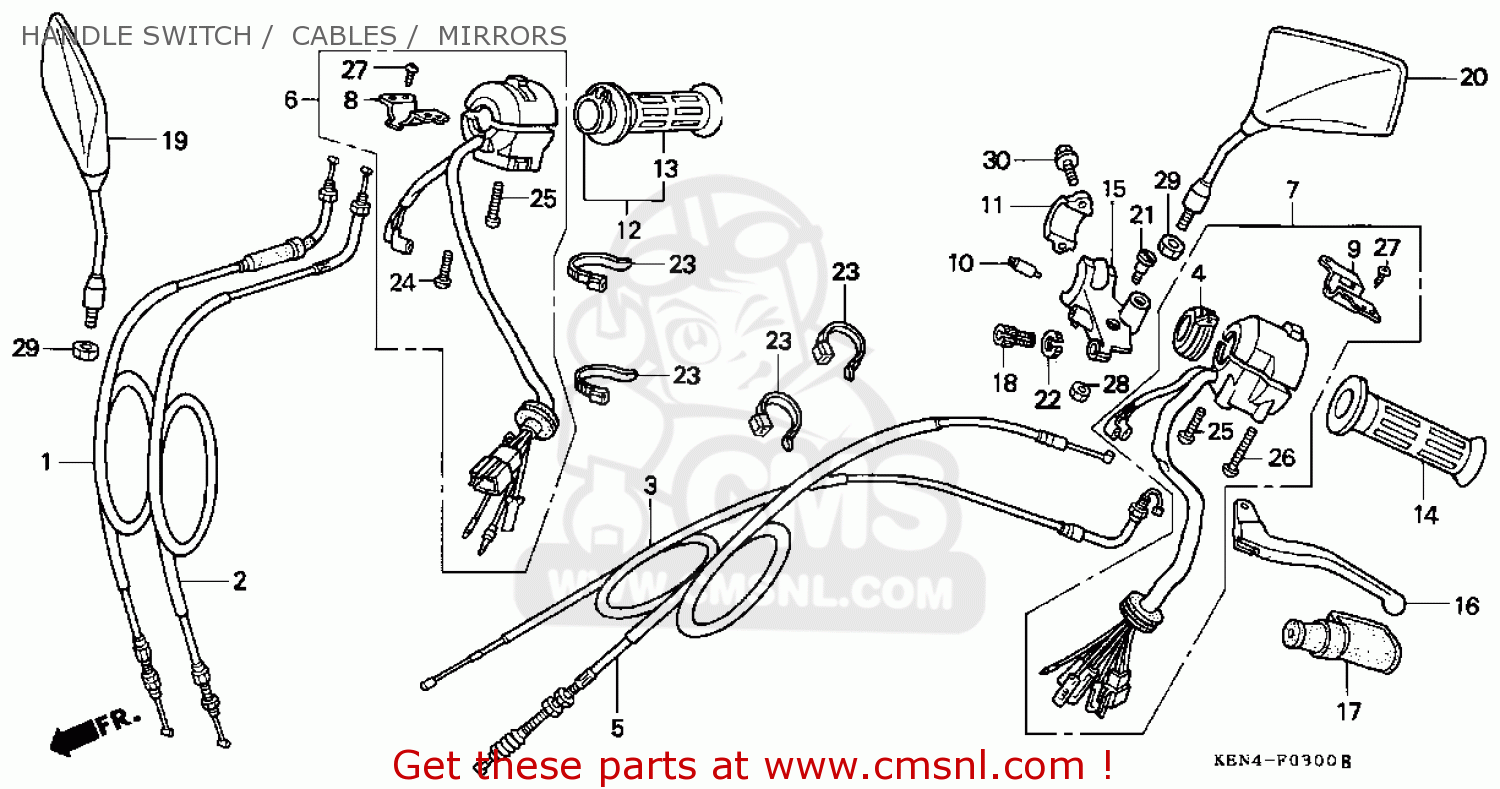

HANDLE SWITCH / CABLES / MIRRORS

ref

parte #

descripción

cantidad

1

17910KEN670
ref: 1

CABLE COMP,A THRO

€ 29.50

2

17920KEN670
ref: 2

CABLE COMP,THROT.

€ 29.50

3

17950KEN670
ref: 3

CABLE COMP.CHOKE

€ 36.50

4

17962KE8701
ref: 4

LEVER,CHOKE

€ 17.00

4

17962ML7003
ref: 4

LEVER,CHOKE

€ 17.00

5

22870KEN670
ref: 5

CABLE COMP.CLUTCH

€ 32.00

6

35013KEN670
ref: 6

SET,SW ASSY.ST KI

€ 81.50

7

35020KEN670
ref: 7

SET,SW ASSY.WINKE

€ 99.00

8

35152KE8703
ref: 8

PLATE SET

€ 3.50

9

35204KE8702
ref: 9

PLATE SET

€ 3.50

10

35330413003
ref: 10

SWITCH,FR.LEVER

€ 21.00

11

45516KR3900
ref: 11

HOLDER,MASSTER CY

€ 23.50

12

53140KR3600
ref: 12

GRIP COMP.,THROTT

€ 20.00

13

53165KR3680
ref: 13

GRIP,R.HANDLE

€ 10.00

14

53166KR3680
ref: 14

GRIP,L.HANDLE

€ 9.50

15

53172KR3900
ref: 15

BRACKET,HANDLE LE

€ 47.00

16

53178KV0000
ref: 16

LEVER COMP.,L HND

€ 21.50

17

53180425010
ref: 17

BOOT,HANDLE LEVER

€ 19.00

18

53192268000
ref: 18

BOLT

€ 7.50

19

88210KR3000
ref: 19

MIRROR COMP,R BAC

€ 52.00

20

88220KR3000
ref: 20

MIRROR COMP,L BAC

€ 54.50

21

90113438000
ref: 21

BOLT,LEVER PIVOT

€ 6.50

22

90321MA6750
ref: 22

NUT,FIXING

€ 11.50

23

90652KT1771
ref: 23

BAND,WIRE

€ 2.50

24

938920502007
ref: 24

SCREW WASHER 5X20

€ 1.00

25

938920502807
ref: 25

SCREW-WASHER,5X28

€ 0.50

26

938920504507
ref: 26

SCREW-WASHER,5X45

€ 2.50

27

9390132120
ref: 27

SCREW,TAPPING,3X8

€ 1.00

28

94001060000S
ref: 28

NUT,HEX 6MM

€ 1.00

28

94001062000S
ref: 28

NUT,HEX.,6MM

€ 1.00

29

9403110020
ref: 29

NUT,HEX 10MM

€ 1.50

30

960010602202
ref: 30

BOLT,FLANGE,6X22

€ 2.00

todas las asambleas
