STARTING MOTOR

AN400A BURGMAN 2007 (K7) USA (E03)

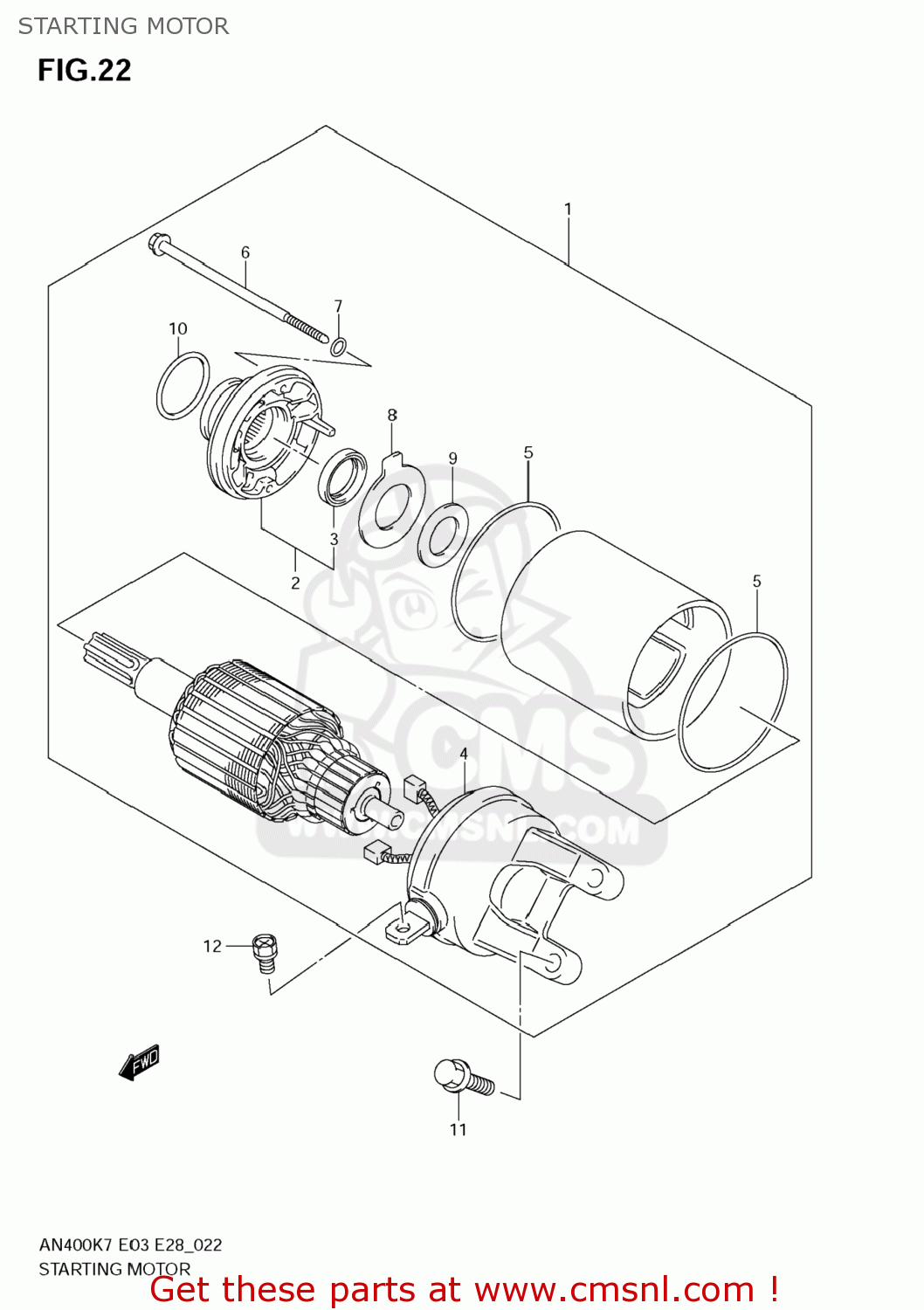

Starting motor diagram AN400A BURGMAN 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110006H00
ref: 1
31100-06H01

MOTOR ASSY,STARTING

€ 630.00

3115008F00
ref: 2

BRACKET

€ 81.50

3115349210
ref: 3

SEAL,OIL

€ 14.00

3117514F00
ref: 4

FRAME ASSY,COMMUTATOR END

€ 90.00

3126432C10
ref: 5

O RING

€ 8.50

3128108F00
ref: 6

BOLT

€ 4.50

3115608F00
ref: 7

O RING

€ 3.00

3136132C10
ref: 8

PLATE,LOCK

€ 2.50

3136138300
ref: 9

SHIM

€ 1.50

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 1.50

0910306223
ref: 11

BOLT(6X20)

€ 2.00

0913705004
ref: 12

SCREW(5X8)

€ 2.00
