AN400A BURGMAN 2007 (K7) USA (E03)

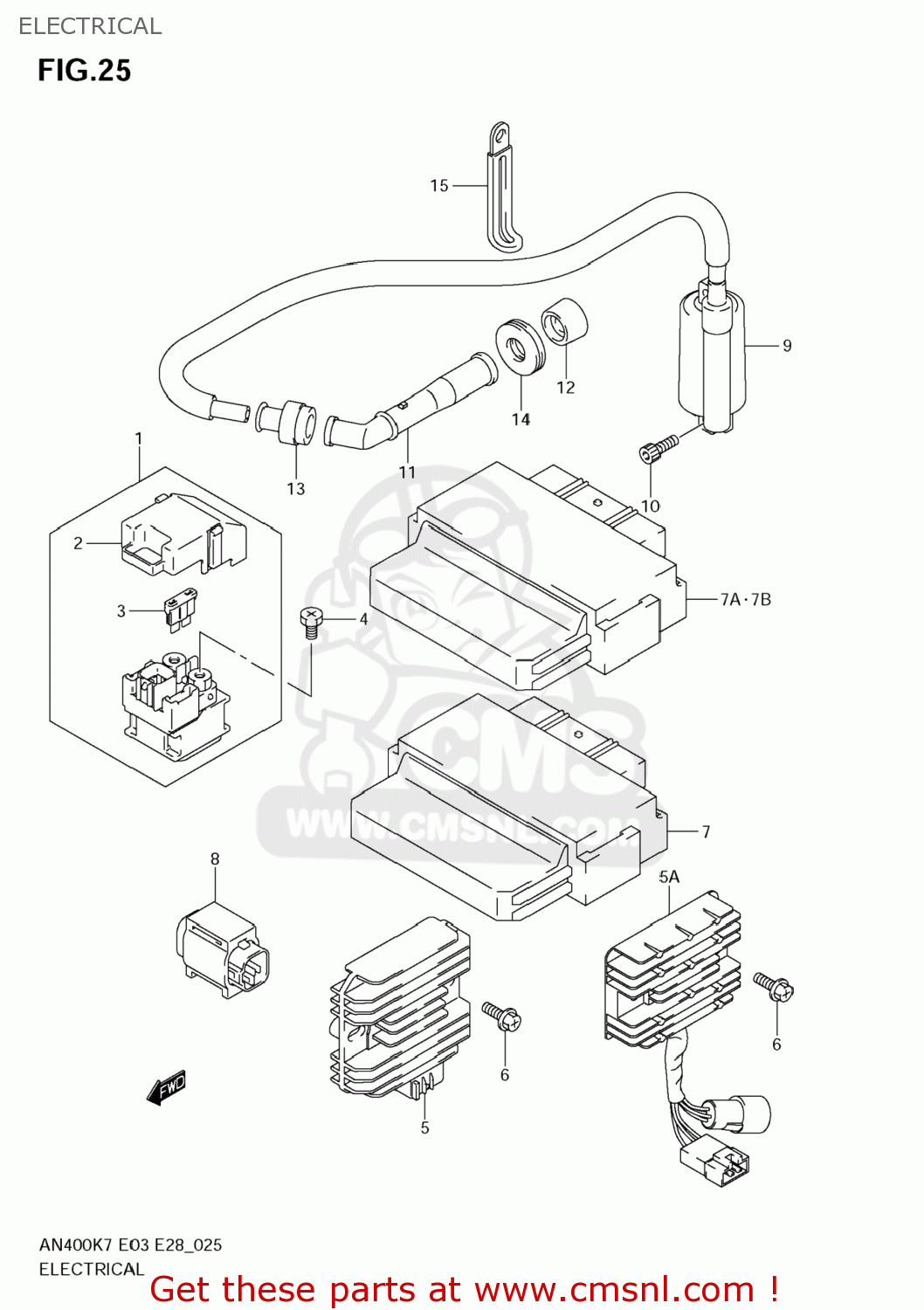

Electrical diagram AN400A BURGMAN 2007 (K7) USA (E03)

ELECTRICAL AN400A BURGMAN 2007 (K7) USA (E03)
ELECTRICAL AN400A BURGMAN 2007 (K7) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
3180021E20
€ 57.00
2
3186147E00
ref: 2
COVER
3186147E00
€ 10.00
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 5.50
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280020H00
ref: 5
RECTIFIER ASSY
€ 311.00
5A-1
3280005H11
ref: 5A-1
RECTIFIER ASSY
€ 172.00
5A-2
3280005H20
ref: 5A-2
RECTIFIER ASSY
€ 172.00
6
021620620B
ref: 6
SCREW
€ 1.50
7
3292005H12
ref: 7
CONTROL UNIT,FI
€ 351.50
7A
3292005H40
ref: 7A
CONTROL UNIT,FI
€ 351.50
7B
3292005HB0
ref: 7B
CONTROL UNIT,FI
€ 351.50
8
3396006G10
ref: 8
SENSOR ASSY,FUEL CUT
3396006G10
€ 67.00
9
3341005H00
ref: 9
COIL ASSY,IGNITION
€ 104.00
10
071300525A
ref: 10
BOLT
071300525A
€ 1.50
11
3351048B10
ref: 11
CAP,SPARK PLUG
3351048B10
€ 24.00
12
3354123E10
ref: 12
SEAL,SPARK PLUG
3354123E10
€ 5.00
13
3354238B00
ref: 13
SEAL,HIGH TENSION CORD
3354238B00
€ 4.00
14
3354333E01
ref: 14
COVER,SPARK PLUG CAP
3354333E01
€ 3.50
15
0940406429
ref: 15
CLAMP(L:45)
€ 2.00
