GEAR SHIFTING

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

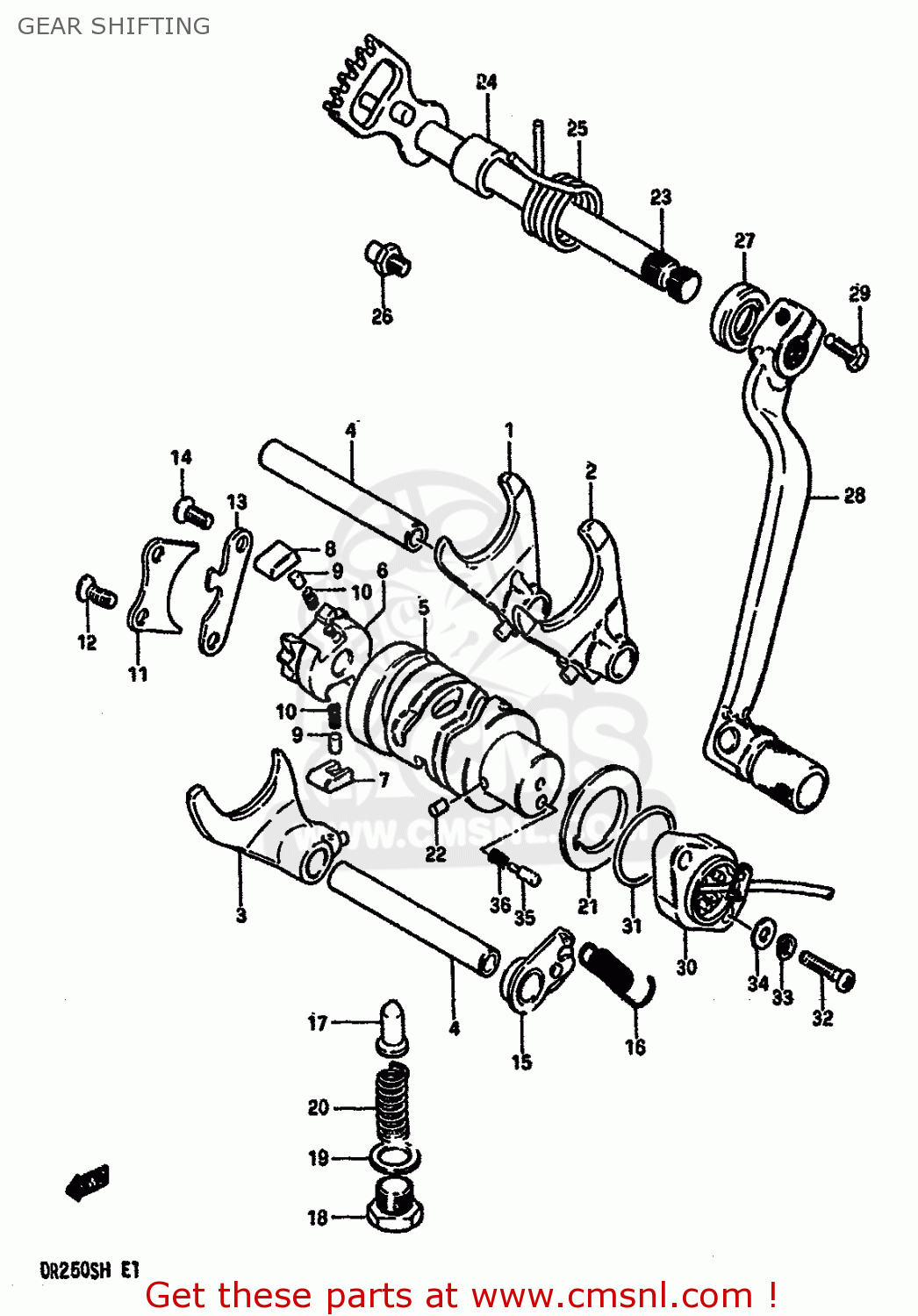

Gear shifting diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

GEAR SHIFTING DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
GEAR SHIFTING DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
2521132401
ref: 1
FORK,GEAR SHIFT NO.1
25211-32401 | 2521132401
€ 77.50
2
2522132401
ref: 2
FORK,GEAR SHIFT
25221-32401 | 2522132401
€ 77.50
3
2523132401
ref: 3
FORK,GEAR SHIFT NO.3
€ 77.50
4
2541114330
ref: 4
SHAFT,GEAR SHIFT FORK
25411-14330 | 2541114330
€ 15.50
5
2531038200
ref: 5
CAM,GEAR SHIFT
25310-38200 | 2531038200
€ 67.00
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
25322-31301 | 2532231301
€ 15.50
7
2532334200
ref: 7
PAWL,GEAR SHIFT NO.1
€ 7.00
8
2532434200
ref: 8
PAWL,GEAR SHIFT NO.2
€ 7.00
9
0926105003
ref: 9
PIN(5X8)
09261-05003 | 0926105003
€ 2.00
10
0944004003
ref: 10
SPRING
09440-04003 | 0944004003
€ 2.00
11
2533138201
ref: 11
LIFTER,GEAR SHIFT POLE
25331-38201 | 2533138201
€ 5.00
12
0212206167
ref: 12
SCREW
02122-06167 | 0212206167
€ 2.50
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 9.50
14
0212206128
ref: 14
SCREW
02122-06128 | 0212206128
€ 3.50
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
25350-34000 | 2535034000
€ 11.50
16
0944308026
ref: 16
SPRING
09443-08026 | 0944308026
€ 2.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
25351-30010 | 2535130010
€ 7.00
18
0924714012
ref: 18
PLUG (14X12)
09247-14012 | 0924714012
€ 4.00
19
0916814004
ref: 19
GASKET(14X19.2X2) (NAS)
09168-14004 | 0916814004
€ 2.50
20
0944011016
ref: 20
SPRING
09440-11016 | 0944011016
€ 8.00
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
25381-45400 | 2538145400
€ 11.50
22
0621104063
ref: 22
PIN 4X6
06211-04063 | 0621104063
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
25510-38200 | 2551038200
€ 91.00
24
0918012068
ref: 24
SPACER(12X20X15.3)
09180-12068 | 0918012068
€ 3.50
25
0944426004
ref: 25
SPRING
09444-26004 | 0944426004
€ 5.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
25671-01000 | 2567101000
€ 3.50
27
0928512002
ref: 27
OIL SEAL
09285-12002 | 0928512002
€ 7.00
28
2560038200
ref: 28
LEVER ASSY,GEAR SHIFT
25600-38200 | 2560038200
€ 177.50
29
0910006100
ref: 29
BOLT
€ 2.50
30
3772044600
ref: 30
TERMINAL BASE,NEUTRAL SWITCH
37720-44600 | 3772044600
€ 51.00
31
0928026003
ref: 31
O-RING (D:2.4 ID:26.2)
09280-26003 | 0928026003
€ 3.00
32
0211205208
ref: 32
SCREW 5X20
02112-05208 | 0211205208
€ 3.00
33
0832121057
ref: 33
LOCK WASHER
08321-21057 | 0832121057
€ 2.00
34
0832221057
ref: 34
WASHER
08322-21057 | 0832221057
€ 2.50
35
0920905011
ref: 35
PIN(5X15.5)
09209-05011 | 0920905011
€ 2.00
36
0944004010
ref: 36
SPRING
09440-04010 | 0944004010
€ 2.00
