AIR CLEANER

DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

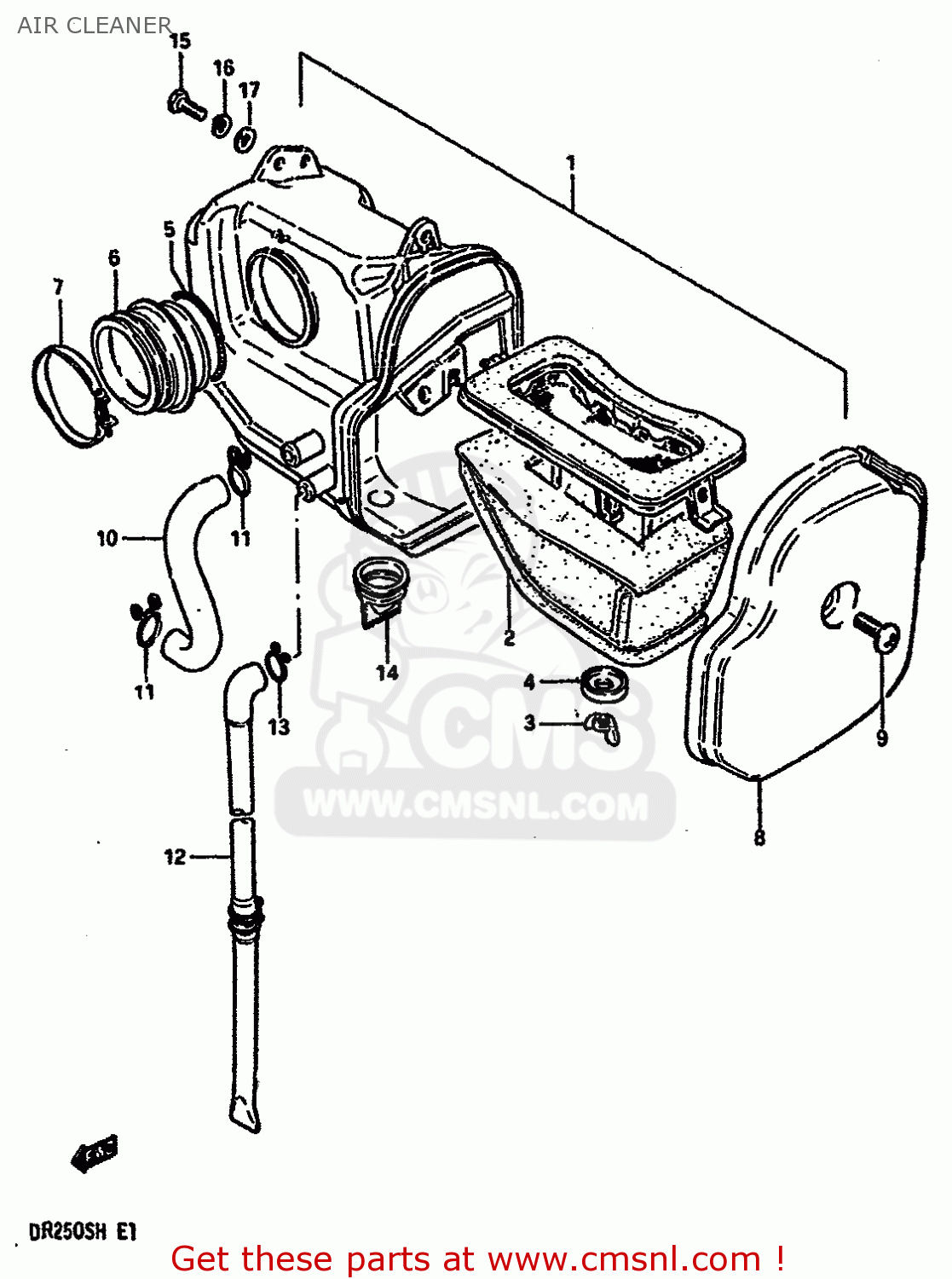

Air cleaner diagram DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)

AIR CLEANER DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
AIR CLEANER DR250S 1984 (E) (E01 E02 E04 E6 E18 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
1370038202
ref: 1
CLEANER ASSEMBLY,AIR
€ 173.00
2
1378138200
ref: 2
ELEMENT,AIR CLEANER
1378138200
€ 41.50
3
0831711056
ref: 3
NUT
€ 2.00
4
1379620400
ref: 4
WASHER
1379620400
€ 4.00
5
1393102100
ref: 5
CLAMP,CLEANER SIDE
1393102100
€ 4.00
6
1388138200
ref: 6
TUBE,AIR CLEANER OUTLET
1388138200
€ 17.50
7
0940256208
ref: 7
CLAMP
0940256208
€ 3.50
8
1374038201
ref: 8
CAP
1374038201
€ 22.00
9
0214206257
ref: 9
SCREW
€ 3.00
10
1385338200
ref: 10
TUBE,BREATHER
1385338200
€ 8.50
11
0940116301
ref: 11
CLAMP
€ 2.50
12
1387021441
ref: 12
DRAIN TUBE
€ 22.00
13
1382400A00
ref: 13
CLIP
1382400A00
€ 2.50
14
1387320400
ref: 14
HOSE,AIR CLEANER DRAIN
1387320400
€ 12.50
15
0110706167
ref: 15
BOLT
0110706167
€ 2.00
16
0832121067
ref: 16
WASHER,LOCK
0832121067
€ 1.50
17
0916006007
ref: 17
WASHER
0916006007
€ 1.50
