REAR FENDER (MODEL M/N/P/R/S)

LTF4WD 1989 (K) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)

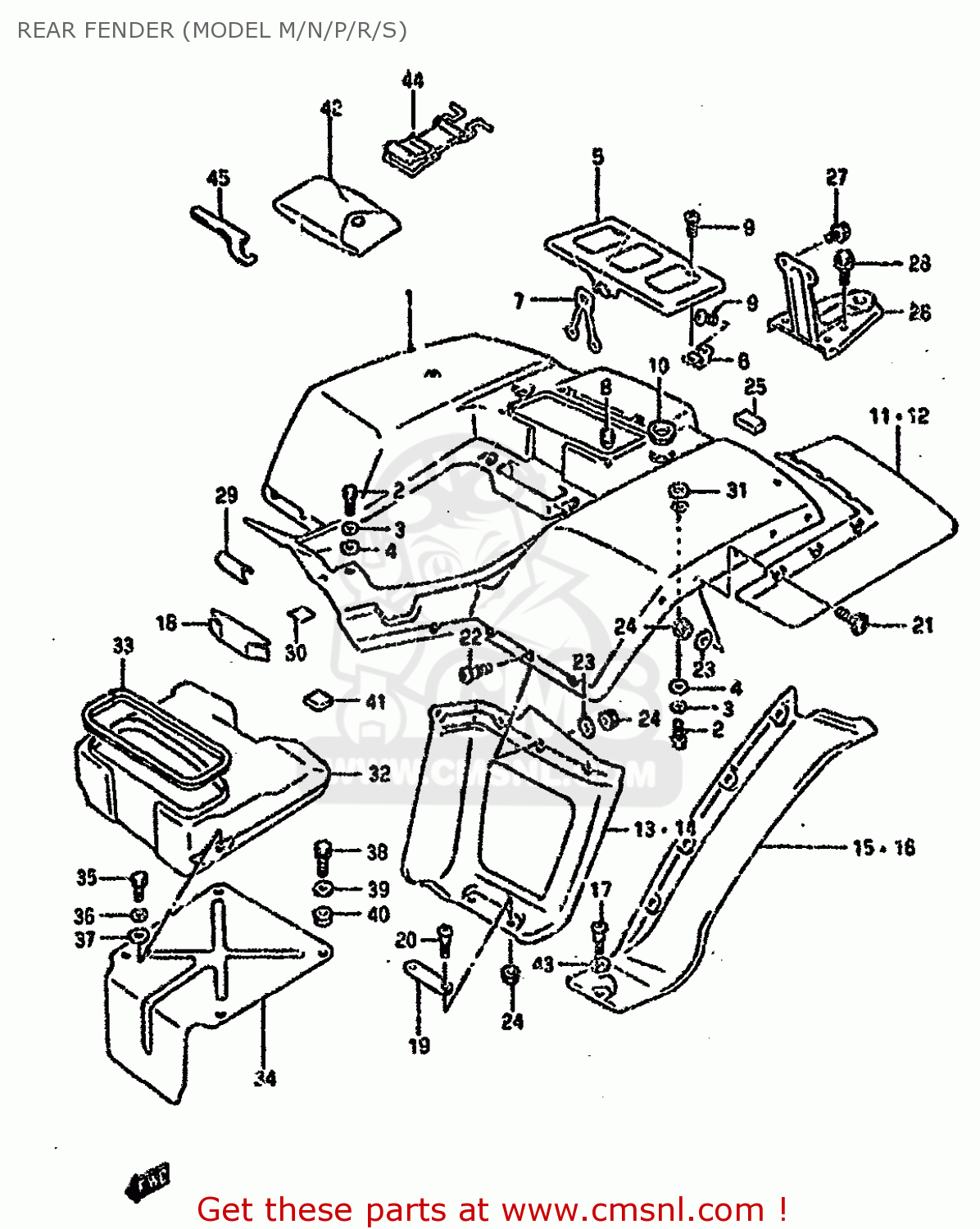

Rear fender (model m/n/p/r/s) diagram LTF4WD 1989 (K) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)

REAR FENDER (MODEL M/N/P/R/S) LTF4WD 1989 (K) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)
REAR FENDER (MODEL M/N/P/R/S) LTF4WD 1989 (K) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)
prices are in EUR
ref
part #
description
quantity
1-1
6311119B1025G
ref: 1-1
MODEL M/N/P/R/S-6311
FENDER,REAR
€ 304.00
1-2
6311119B100VT
ref: 1-2
MODEL P/R/S
FENDER,RR
€ 276.50
1-3
6311119X5025G
ref: 1-3
FENDER SET,RR
6311119X5025G
€ 304.00
2-1
0110706166
ref: 2-1
MODEL M
BOLT
€ 1.50
2-2
0911006006
ref: 2-2
MODEL N/P/R/S
BOLT
€ 0.00
3
0832121066
ref: 3
MODEL M
WASHER,LOCK
0832121066
€ 1.50
4
0916006004
ref: 4
MODEL M
WASHER (6.5X24X1.6)
0916006004
€ 1.50
5
6319519B00
ref: 5
LID,RR FENDER
6319519B00
€ 19.50
6
6327019B00
ref: 6
HINGE,RR FENDER LID
€ 0.00
7
6319619B00
ref: 7
BAND,RR FENDER LID
6319619B00
€ 12.50
8
0932106013
ref: 8
CUSHION
0932106013
€ 2.00
9-1
0214205104
ref: 9-1
MODEL M/N/P
SCREW 5X10
0214205104
€ 1.50
9-2
0214205103
ref: 9-2
MODEL R
SCREW
0214205103
€ 1.50
9-3
0912505073
ref: 9-3
MODEL S
SCREW(5X8)
0912505073
€ 1.00
10
0930825003
ref: 10
GROMMET
0930825003
€ 4.50
11
6333118B10
ref: 11
MUDGUARD,RR FENDER,R
6333118B10
€ 40.00
12
6334118B10
ref: 12
MUDGUARD,RR FENDER,L
6334118B10
€ 36.00
13
6335119B10
ref: 13
MUDGUARD,RR FENDER FR,R
6335119B10
€ 41.50
14
6336119B10
ref: 14
MUDGUARD,RR FENDER FR,L
6336119B10
€ 43.50
15
6331119B00
ref: 15
EXTENSION,RR FENDER MUD FR,R
6331119B00
€ 48.50
16
6332119B00
ref: 16
EXTENSION,RR FENDER MUD FR,L
6332119B00
€ 45.00
17
0913905040
ref: 17
SCREW(5X15.1)
0913905040
€ 2.50
18
6335519B10
ref: 18
SHIELD,RR MUDGUARD HEAT FR
€ 0.00
19
6334119B10
ref: 19
PLATE,MUDGUARD FR
6334119B10
€ 7.50
20
0913905040
ref: 20
SCREW(5X15.1)
0913905040
€ 2.50
21
0913605038
ref: 21
SCREW(5X16)
0913605038
€ 3.00
22
0913905038
ref: 22
SCREW(5X15.3)
0913905038
€ 2.00
23
0916005039
ref: 23
WASHER (5.1X20X1.4)
0916005039
€ 1.50
24
0915905026
ref: 24
NUT
0915905026
€ 2.50
25
6314919B00
ref: 25
CUSHION
6314919B00
€ 3.50
26-1
9521019B00
ref: 26-1
-95210-20B00
PLATE,TRAILER TOW
€ 0.00
26-2
9521020B00
ref: 26-2
PLATE,TRLR TOW
€ 0.00
27-1
0151708165
ref: 27-1
MODEL M/N/P
BOLT, LOWER
0151708165
€ 2.00
27-2
0155008163
ref: 27-2
MODEL R/S
BOLT
0155008163
€ 2.00
28-1
0151710205
ref: 28-1
MODEL M/N/P
BOLT,LOWER
€ 2.50
28-2
0155010203
ref: 28-2
MODEL R/S
BOLT
0155010203
€ 2.50
29
6326119B00
ref: 29
SHEET,RR FENDER NO.1
6326119B00
€ 6.00
30
6326219B00
ref: 30
SHEET,RR FENDER NO.2
6326219B00
€ 4.00
31-1
0916006038
ref: 31-1
MODEL M/N/P/R
WASHER
€ 1.50
31-2
0916006077
ref: 31-2
MODEL S
WASHER(6.5X20X1.2)
0916006077
€ 1.50
32
4743119B00
ref: 32
BOX,RR
€ 0.00
33
9211419B00
ref: 33
MOLDING,RR BOX
€ 0.00
34
4743219B02
ref: 34
PLATE,HEAT SHIELD
€ 0.00
35-1
0910006067
ref: 35-1
MODEL M
BOLT(6X14)
0910006067
€ 2.50
35-2
0911806019
ref: 35-2
MODEL N/P/R/S
BOLT(6X14)
€ 0.00
36
0832121067
ref: 36
MODEL M
WASHER,LOCK
0832121067
€ 1.50
37
0916006006
ref: 37
MODEL M
WASHER
0916006006
€ 1.50
38-1
0113706167
ref: 38-1
MODEL M/N/P
BOLT
€ 2.00
38-2
0157006163
ref: 38-2
MODEL R/S
BOLT
0157006163
€ 2.50
39
0916906040
ref: 39
WASHER
0916906040
€ 1.50
40
0932008030
ref: 40
CUSHION
0932008030
€ 3.00
41
0925010011
ref: 41
CAP(OD:18)
€ 2.50
42-1
0980000343
ref: 42-1
MODEL M/N/P/R
TOOL ASSY
0980000343
€ 33.00
42-2
0980021019
ref: 42-2
MODEL S
TOOL ASSY
€ 33.00
43
0916008107
ref: 43
WASHER
€ 1.50
44
0946200090
ref: 44
BAND
0946200090
€ 9.00
45
0982200004
ref: 45
MODEL S
CLAMP
0982200004
€ 6.50
24
0916016003
ref: 24
WASHER(16X30X1)
0916016003
€ 2.50
25
6445119B01
ref: 25
LEVER,RR BRAKE CAM
€ 92.00
26-1
0151706256
ref: 26-1
MODEL H/J/K/L/M/N/P
BOLT
€ 1.50
26-2
0155006253
ref: 26-2
MODEL R/S
BOLT
0155006253
€ 1.50
27
0944313022
ref: 27
SPRING
€ 2.50
28-1
0110708206
ref: 28-1
MODEL H/J/K/L
BOLT,8X1.25X2
€ 2.00
28-2
0114708206
ref: 28-2
MODEL M/N/P
BOLT
€ 2.00
28-3
0157008203
ref: 28-3
MODEL R/S
BOLT
0157008203
€ 2.00
29
0832131086
ref: 29
MODEL H/J/K/L
WASHER,LOCK,8.
€ 2.50
30-1
6510019B50
ref: 30-1
MODEL H
TIRE
€ 258.00
30-2
6510019B30
ref: 30-2
MODEL H
TIRE
€ 258.00
30-3
6510019B51
ref: 30-3
MODEL J/K
TIRE
€ 258.00
30-4
6510019B31
ref: 30-4
MODEL J/K
TIRE
€ 258.00
30-5
6510019B40
ref: 30-5
MODEL L/M/N/P/R
TUBELESS TIRE COMP,AT2
€ 258.00
30-6
6510019B60
ref: 30-6
MODEL L/M/N/P/R/S
TIRE,TUBELES(AT 25X12 10)
€ 258.00
31-1
4313075150
ref: 31-1
-43130-78030
VALVE,TIRE
€ 14.50
31-2
4313078030
ref: 31-2
VALVE,TIRE TR413 BS
4313078030
€ 14.50
32
1387700190
ref: 32
PLUG
1387700190
€ 3.50
33
093521115300A
ref: 33
L:1000-990
HOSE
€ 25.50
34
0935211153600
ref: 34
L:600-230
HOSE(11X15X600)
0935211153600
€ 13.50
35
0940714403
ref: 35
CLAMP(L:125)
0940714403
€ 2.50
36
0940718402
ref: 36
MODEL H
CLAMP(L:165)
0940718402
€ 2.00
37
0940114301
ref: 37
CLIP
0940114301
€ 2.00
38
6426019B00
ref: 38
BRACKET,RR BRAKE COVER
6426019B00
€ 14.50
39
6426519B00
ref: 39
COVER,RR BRAKE
6426519B00
€ 33.50
40-1
0211204166
ref: 40-1
MODEL H/J/K/L/M/N/P
SCREW
€ 1.00
40-2
0211204163
ref: 40-2
MODEL R/S
SCREW 4X16
0211204163
€ 1.00
41-1
0831011046
ref: 41-1
MODEL H/J/K/L/M/N/P
NUT M4 DIN 985
€ 2.00
41-2
0831000043
ref: 41-2
MODEL R/S
NUT
€ 2.00
42
9620018A01
ref: 42
GAUGE ASSEMBLY,AIR PRESSURE
9620018A01
€ 22.50
