CLUTCH

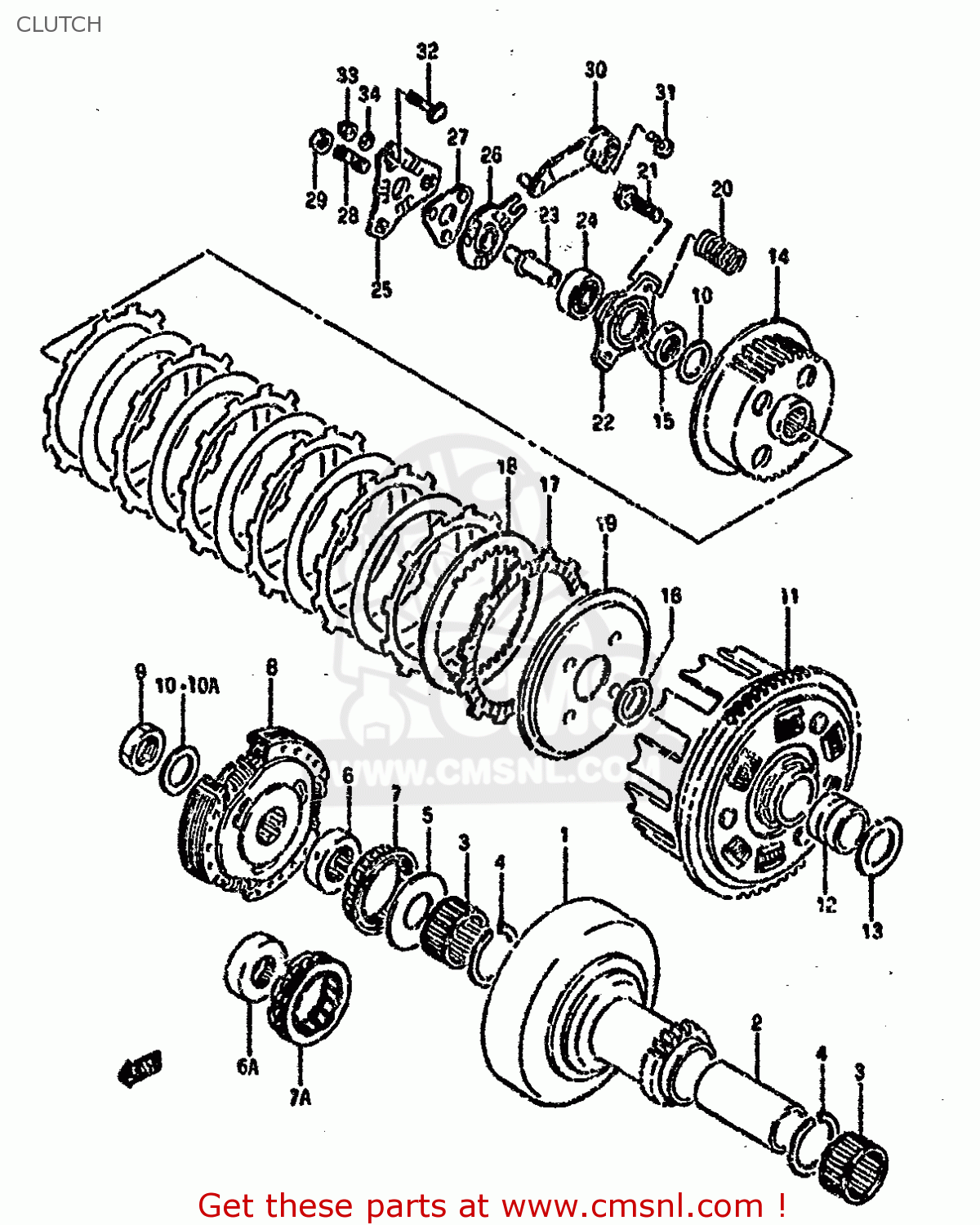

Clutch diagram
LTF4WD 1989 (K) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)
CLUTCH LTF4WD 1989 (K) UNITED KINGDOM SWEDEN AUSTRALIA (E02 E17 E24)
prices are in EUR
ref
part #
description
quantity
1-1
GEAR COMP,PRIMARY DRIVE
1-2
GEAR COMP,PRIMARY DRIVE
3
ROLLER BEARING (28X32X1
6
RACE,ONE WAY CLUTCH INNER
6A
RACE,ONE-WAY CLUTCH IN
7
OVER RUN ONE WAY ASSY,NO.2
7A
CLUTCH ASSY,ONE WAY
8-1
SHOE,CLUTCH ASSEMBLY (NAS)
8-2
SHOE,CLUTCH ASSEMBLY (NAS)
8-3
CLUTCH ASSY,SHOE (NAS)
8-4
CLUTCH ASSY,SHOE (NAS)
9-1
NUT
9-2
NUT
10-1
WASHER
10-2
WASHER
10A
WASHER
12
SPACER(22X28X23)
13
WASHER,THRUST
14
HUB,CLUTCH SLEEVE
15
NUT (20MM)
16
WASHER
17-1
PLATE,CLUTCH DRIVE (NAS)
17-2
PLATE,CLUTCH DRIVE (NAS)
18-1
PLATE,CLUTCH DRIVEN (NAS)
18-2
PLATE,DRIVEN(T:1.4)
19
DISC,CLUTCH PRESSURE
20
SPRING
21-2
BOLT
22
PLATE,RELEASE
23
PIECE,CLUTCH PUSH
24-1
BEARING
24-2
BEARING(12X28X8)
25-2
BALL GUIDE,CL RELEASE OUTER
26-1
BALL GUIDE,CLUTCH RELEASE
26-2
BALL GUIDE,CL RELEASE INNER
27-1
BALL,CLUTCH RELEASE
27-2
BALL,CLUTCH RELEASE
28
SCREW(8X19.5)
29-1
NUT 8MM
31-1
BOLT
31-2
BOLT
32
BOLT
33-2
NUT
34
GASKET(5.8X13X1.2) (NAS)
currency in EUR
notes: MODEL H
notes: MODEL J/K/L/M/N/P/R/
notes: MODEL H
notes: MODEL H
notes: MODEL H
notes: MODEL H
notes: MODEL H
notes: MODEL J/K/L/M/N/P/R/
notes: MODEL H
notes: MODEL J/K/L/M/N/P/R/
notes: MODEL H
notes: MODEL J/K/L/M/N/P/R
notes: MODEL S
notes: E17
notes: MODEL H
notes: MODEL J/K/L/M/N/P/R/
notes: MODEL H
notes: MODEL J/K/L/M/N/P/R/
notes: MODEL J/K/L/M/N/P/R/
notes: NT:60,-21200-19B02
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P-
notes: MODEL R/S
notes: MODEL H/J/K/L/M/N/P
notes: MODEL R/S
