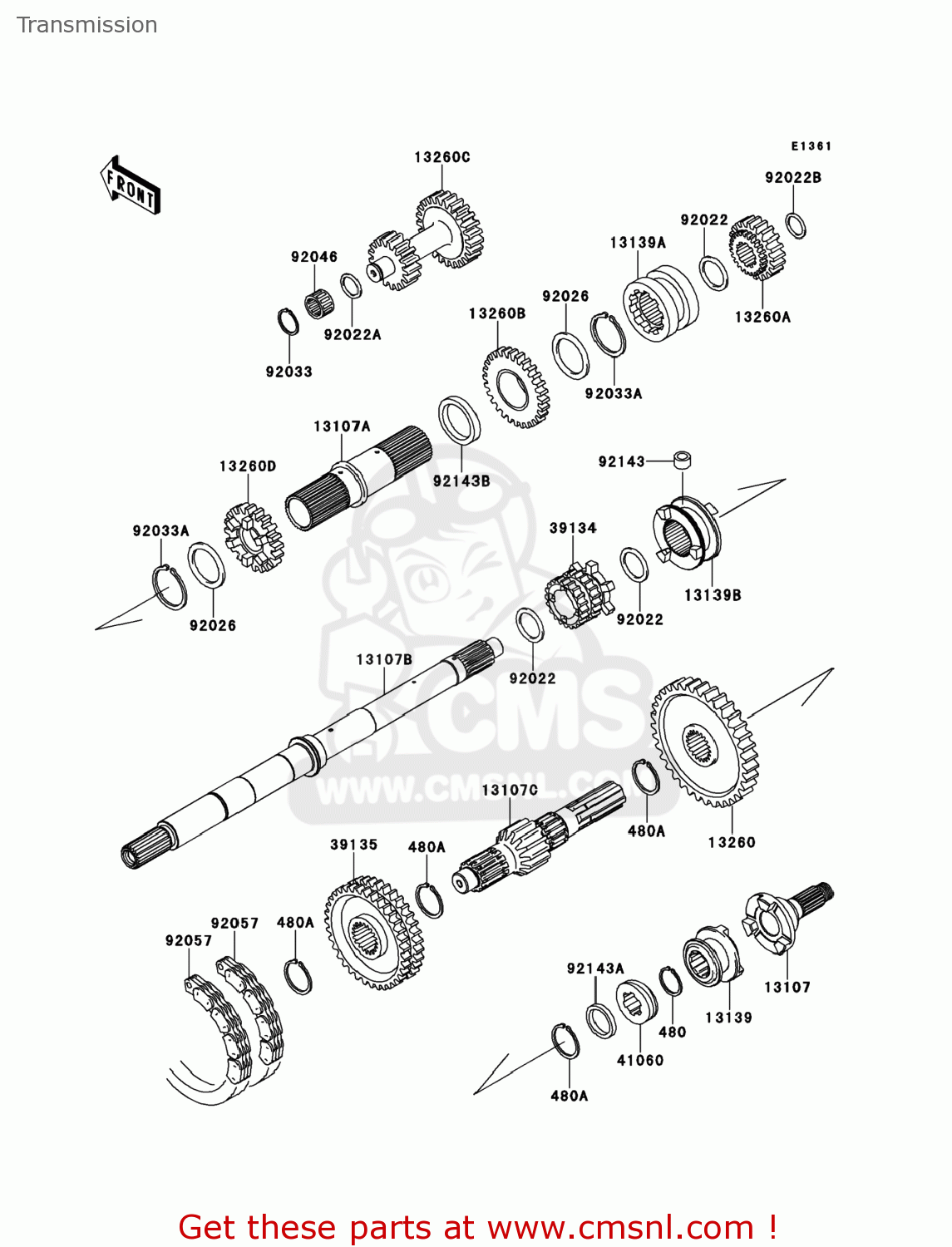

Transmission

ref

part #

description

quantity

13107

131070106
ref: 13107

SHAFT,2WD/4WD

€ 171.50

13107A

131071309
ref: 13107A

SHAFT,INPUT OUTER

€ 165.00

13107B

131071512
ref: 13107B

SHAFT,INPUT

€ 377.00

13107C

131071517
ref: 13107C

SHAFT,OUTPUT,14T

€ 225.50

13139

131390010
ref: 13139

SHIFTER,2WD/4WD

€ 78.50

13139A

131391069
ref: 13139A

SHIFTER,SPEED,HI/LOW

€ 110.50

13139B

131391072
ref: 13139B

SHIFTER,FR/RR

€ 69.50

13260

132601288
ref: 13260

GEAR,OUTPUT REVERSE,5

€ 138.00

13260A

132601289
ref: 13260A

GEAR,INPUT REDUCTION,

€ 111.00

13260B

132601290
ref: 13260B

GEAR,INPUT REDUCTION,

€ 111.00

13260C

132601291
ref: 13260C

GEAR,REDUCTION,17T&25

€ 234.50

13260D

132601462
ref: 13260D

GEAR-TRANSMISSION SPU

€ 111.00

39134

391341055
ref: 39134

SPROCKET-DRIVE,20T

€ 97.00

39135

391351055
ref: 39135

SPROCKET-DRIVEN,41T

€ 116.00

41060

410601147
ref: 41060

GEAR-METER SCREW

€ 39.50

480

480J2500
ref: 480

CIRCLIP-TYPE-C,25MM

€ 1.00

480A

480J3000
ref: 480A

CIRCLIP-TYPE-C,30MM

€ 3.50

92022

920221109
ref: 92022

WASHER,25.3X33X1

€ 4.00

92022A

92022255
ref: 92022A

WASHER

€ 5.50

92022B

92022270
ref: 92022B

WASHER,PLAIN

€ 6.50

92026

920261375
ref: 92026

SPACER

€ 4.50

92033

92033032
ref: 92033

CIRCLIP

€ 3.00

92033A

920331269
ref: 92033A

RING-SNAP

€ 5.50

92046

920461184
ref: 92046

BEARING-NEEDLE

€ 18.50

92057

920571364
ref: 92057

CHAIN,REVERSE,81RH252

€ 15.00

92143

921431497
ref: 92143

COLLAR,8X14X10.5

€ 3.00

92143A

921431597
ref: 92143A

COLLAR,25X32X4.5

€ 9.00

92143B

921431599
ref: 92143B

COLLAR

€ 15.00
