Chassis Electrical Equipment

KAF950-FCF MULE4010 2012 USA / DIESEL 4X4

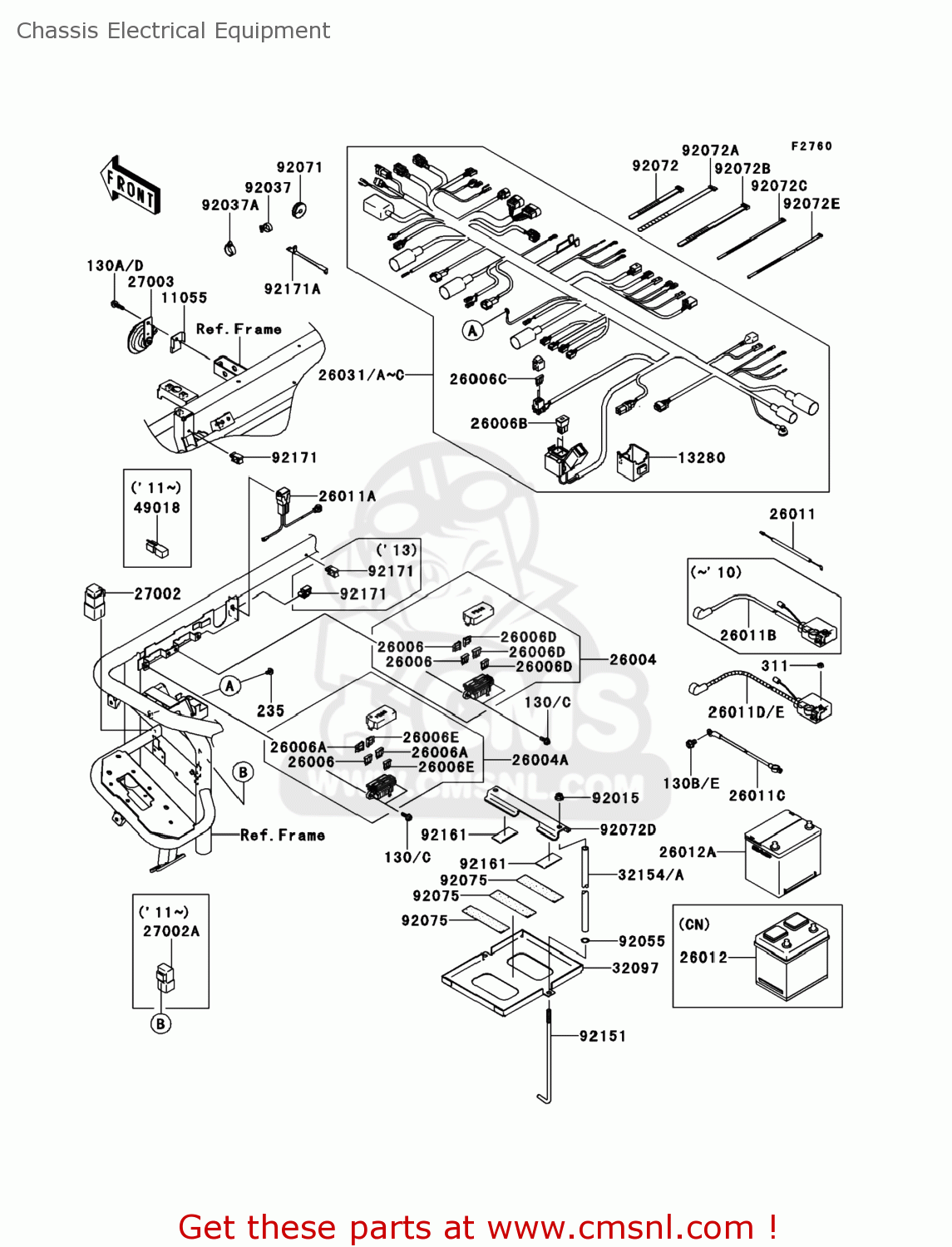

Chassis electrical equipment diagram KAF950-FCF MULE4010 2012 USA / DIESEL 4X4

Chassis Electrical Equipment KAF950-FCF MULE4010 2012 USA / DIESEL 4X4
Chassis Electrical Equipment KAF950-FCF MULE4010 2012 USA / DIESEL 4X4
prices are in EUR
ref
part #
description
quantity
11055
110550167
ref: 11055
BRACKET,HORN
110550167
€ 3.50
130
130BA0616
ref: 130
BOLT-FLANGED,6X16
130BA0616
€ 0.50
130A
130BA0620
ref: 130A
BOLT-FLANGED,6X20
130BA0620
€ 0.50
130B
130BA0812
ref: 130B
BOLT-FLANGED
130BA0812
€ 0.50
13280
132807508
ref: 13280
HOLDER
€ 3.00
235
235AA0610
ref: 235
SCREW-PAN-WP-CROS
235AA0610
€ 2.00
26004
260040018
ref: 26004
FUSE-ASSY
€ 31.50
26004A
260040020
ref: 26004A
FUSE-ASSY
€ 31.50
26006
260060004
ref: 26006
FUSE,30A
260060004
€ 4.00
26006A
260060005
ref: 26006A
FUSE,10A
260060005
€ 4.00
26006B
260060014
ref: 26006B
FUSE,40A
€ 5.50
26006C
260060015
ref: 26006C
FUSE,7.5A
€ 5.50
26006D
260061051
ref: 26006D
FUSE,20A
260061051
€ 3.00
26006E
260061082
ref: 26006E
FUSE,5A
€ 3.50
26011
260110001
ref: 26011
WIRE-LEAD,OIL PRESSUR
€ 5.00
26011A
260110219
ref: 26011A
WIRE-LEAD,ALTERNATOR
€ 49.00
26011C
260110223
ref: 26011C
WIRE-LEAD,BATTERY(-)
€ 109.00
26011D
260110266
ref: 26011D
WIRE-LEAD,BATTERY(+)
€ 131.00
26012
260121377
ref: 26012
BATTERY
260121377
€ 149.50
26012A
260127501
ref: 26012A
BATTERY,WET,(26R)
€ 149.50
26031B
260310942
ref: 26031B
HARNESS,MAIN
€ 726.00
27002
270021068
ref: 27002
RELAY-ASSY
270021068
€ 46.00
27002A
270021088
ref: 27002A
RELAY-ASSY
270021088
€ 24.50
27003
270031330
ref: 27003
HONE
€ 42.50
311
311AC0600
ref: 311
NUT-HEX
€ 0.50
32097
320971200
ref: 32097
CASE-BATTERY
€ 86.50
32154
321547502
ref: 32154
PIPE
€ 35.50
32154A
321547613
ref: 32154A
PIPE,12.7X15.18X199.5
€ 34.00
49018
490180005
ref: 49018
DIODE
490180005
€ 33.50
92015
920151406
ref: 92015
NUT,8MM
920151406
€ 3.00
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
920371163
€ 4.00
92037A
920371827
ref: 92037A
CLAMP,HOSE
920371827
€ 4.50
92055
920557501
ref: 92055
RING-O
€ 1.00
92071
920711136
ref: 92071
GROMMET
€ 4.50
92072
92072031
ref: 92072
BAND,MIDDLE
92072031
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
92072032
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
92072056
€ 3.00
92072C
920721239
ref: 92072C
BAND,L=188
920721239
€ 1.50
92072D
920721441
ref: 92072D
BAND
920721441
€ 12.50
92072E
920723872
ref: 92072E
BAND,L=368.3
920723872
€ 1.50
92075
920751829
ref: 92075
DAMPER
920751829
€ 3.00
92151
921511728
ref: 92151
BOLT
€ 4.00
92161
921610032
ref: 92161
DAMPER
€ 3.50
92171
921710290
ref: 92171
CLAMP
921710290
€ 2.50
92171A
921711365
ref: 92171A
CLAMP
€ 3.00
