STARTER MOTOR

JB650-A2 JETMATE 1990 USA CANADA

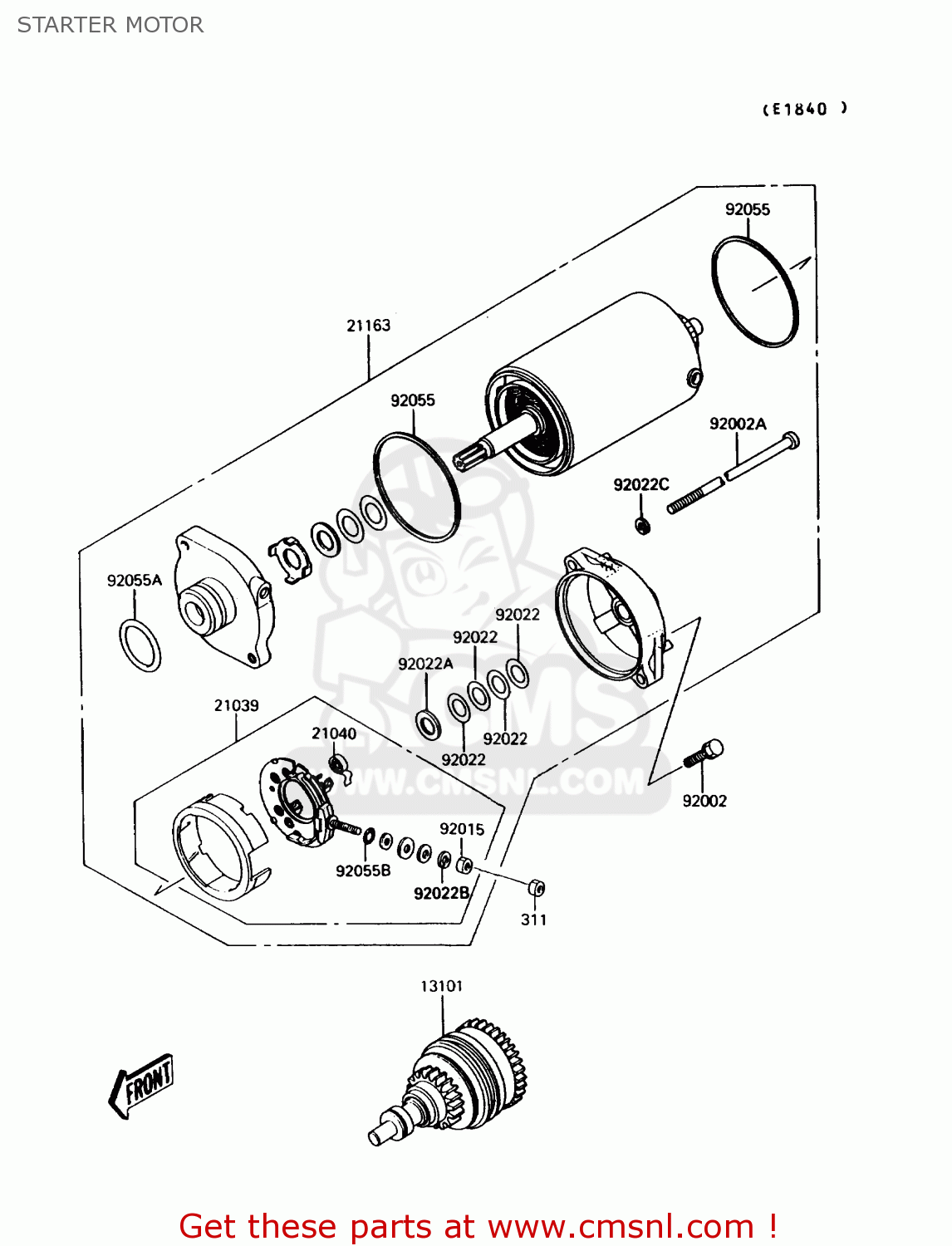

Starter motor diagram JB650-A2 JETMATE 1990 USA CANADA

STARTER MOTOR JB650-A2 JETMATE 1990 USA CANADA
STARTER MOTOR JB650-A2 JETMATE 1990 USA CANADA
prices are in EUR
ref
part #
description
quantity
311
311R0600
ref: 311
NUT,6M/M
311R0600
€ 0.50
13101
131013701
ref: 13101
GEAR-ASSY
€ 501.50
21039
210393702
ref: 21039
BRUSH,CARBON
210393702
€ 70.50
21040
210401003
ref: 21040
SPRING-BRUSH
210401003
€ 5.50
21163
211633702
ref: 21163
STARTER-ELECTRIC
€ 553.00
92002
920023714
ref: 92002
BOLT,6X25
€ 3.00
92002A
920023744
ref: 92002A
BOLT
€ 14.50
92015
920153710
ref: 92015
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
21025011
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
920221132
€ 4.00
92022B
920223711
ref: 92022B
WASHER,6MM
€ 2.50
92022C
920223712
ref: 92022C
WASHER,SPRING,5MM
920223712
€ 2.00
92055
920551086
ref: 92055
O RING,64MM
920551086
€ 6.00
92055A
920551276
ref: 92055A
RING-O
920551276
€ 6.00
92055B
920551370
ref: 92055B
RING-O,4.5X2.0
920551370
€ 2.50
