FUEL TANK

JB650-A2 JETMATE 1990 USA CANADA

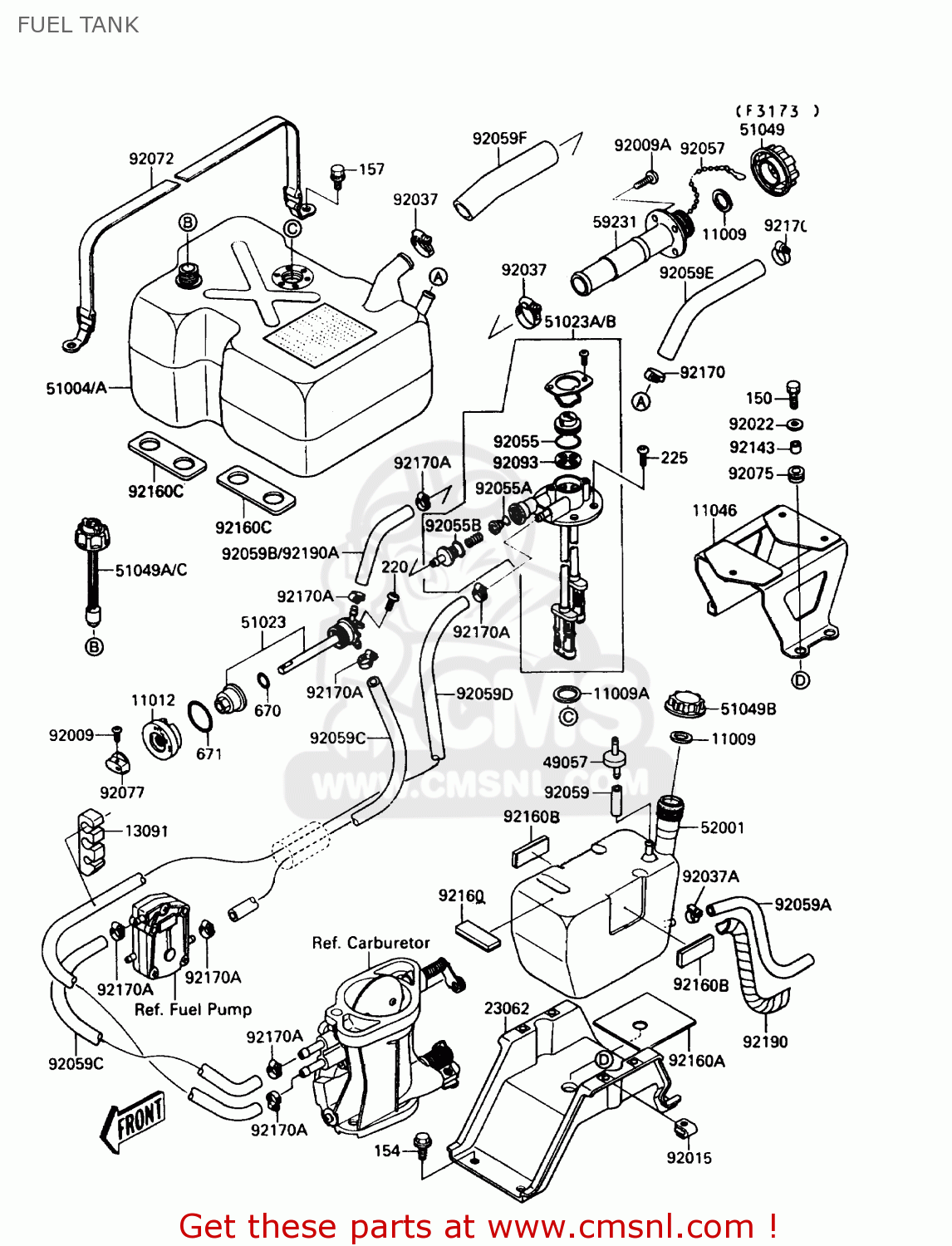

Fuel tank diagram JB650-A2 JETMATE 1990 USA CANADA

FUEL TANK JB650-A2 JETMATE 1990 USA CANADA
FUEL TANK JB650-A2 JETMATE 1990 USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110093020
ref: 11009
GASKET,TANK CAP (NAS)
110093020
€ 9.00
11009A
92065504
ref: 11009A
GASKET (NAS)
92065504
€ 10.50
11012
110123728
ref: 11012
CAP,FUEL TAP
€ 8.00
11046
110463756
ref: 11046
BRACKET,ELECTRIC
€ 77.50
13091
130913745
ref: 13091
HOLDER,TUBE
130913745
€ 8.50
23062
230623701
ref: 23062
BRACKET-COMP,OIL TANK
€ 139.00
49057
490573001
ref: 49057
VALVE-RELIEF
490573001
€ 44.00
51004A
510043713
ref: 51004A
TANK-FUEL
€ 302.00
51023
510233707
ref: 51023
TAP-ASSY,FUEL
€ 45.50
51023B
510233711
ref: 51023B
TAP-ASSY,FUEL
€ 139.50
51049
510493705
ref: 51049
CAP-TANK,FUEL
510493705
€ 10.00
51049B
510493716
ref: 51049B
CAP-TANK,OIL
510493716
€ 12.00
51049C
510493717
ref: 51049C
CAP-TANK,FUEL GAUGE
€ 85.00
52001
520013710
ref: 52001
TANK-OIL
€ 65.50
59231
592313711
ref: 59231
FILLER
€ 110.50
92009
920093729
ref: 92009
SCREW,4X8
920093729
€ 4.00
92009A
920093763
ref: 92009A
SCREW,6X24
920093763
€ 2.50
92015
920153763
ref: 92015
NUT,6MM
€ 5.00
92022
920223710
ref: 92022
WASHER
920223710
€ 2.50
92037
920373009
ref: 92037
HOSE CLAMP
920373009
€ 3.50
92037A
920373726
ref: 92037A
CLAMP
€ 3.00
92055
920553722
ref: 92055
RING-O
€ 3.00
92055A
920553723
ref: 92055A
RING-O
€ 2.50
92055B
920553724
ref: 92055B
RING-O
920553724
€ 2.00
92057
920573704
ref: 92057
CHAIN,COVER
920573704
€ 5.00
92059
920593026
ref: 92059
TUBE,FUEL,5.8X12.2X55
€ 2.50
92059A
920593743
ref: 92059A
TUBE,5.8X350
€ 8.50
92059C
920593840
ref: 92059C
TUBE,6.35X16X490
€ 31.50
92059D
920593841
ref: 92059D
TUBE,6.35X16X1450
€ 33.50
92059E
920593842
ref: 92059E
TUBE,15.9X25.8X250
€ 14.50
92059F
920593844
ref: 92059F
TUBE,38.1X51X200
€ 40.00
92072
920723726
ref: 92072
BAND
920723726
€ 14.00
92075
92075076
ref: 92075
DAMPER
92075076
€ 2.50
92077
920773709
ref: 92077
KNOB
€ 9.00
92093
920933727
ref: 92093
SEAL
€ 3.50
92143
921433714
ref: 92143
COLLAR
€ 2.00
150
150R0625
ref: 150
BOLT-WS,6X25
€ 2.00
154
154R0818
ref: 154
BOLT-WP-SMALL,8X18
€ 2.50
157
157R0614
ref: 157
BOLT-WSP,6X14
157R0614
€ 2.00
220
220R0612
ref: 220
SCREW,PAN HEAD,6X12
€ 1.50
225
225R0516
ref: 225
SCREW-PAN-WSP-CROS,5X
€ 2.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
671
671B2565
ref: 671
O RING,65MM
671B2565
€ 5.50
92160
921601004
ref: 92160
DAMPER
€ 3.50
92160A
921603719
ref: 92160A
DAMPER
€ 14.00
92160B
921603720
ref: 92160B
DAMPER
921603720
€ 7.50
92160C
921603722
ref: 92160C
DAMPER
921603722
€ 15.00
92170
920371989
ref: 92170
CLAMP
€ 12.00
92170A
921703720
ref: 92170A
CLAMP
€ 8.50
92190
921903705
ref: 92190
TUBE
€ 3.00
92190A
921903721
ref: 92190A
TUBE,6.35X16X180
€ 8.50
