KICK STARTER SPINDLE

XBR500S 1987 (H) GERMANY

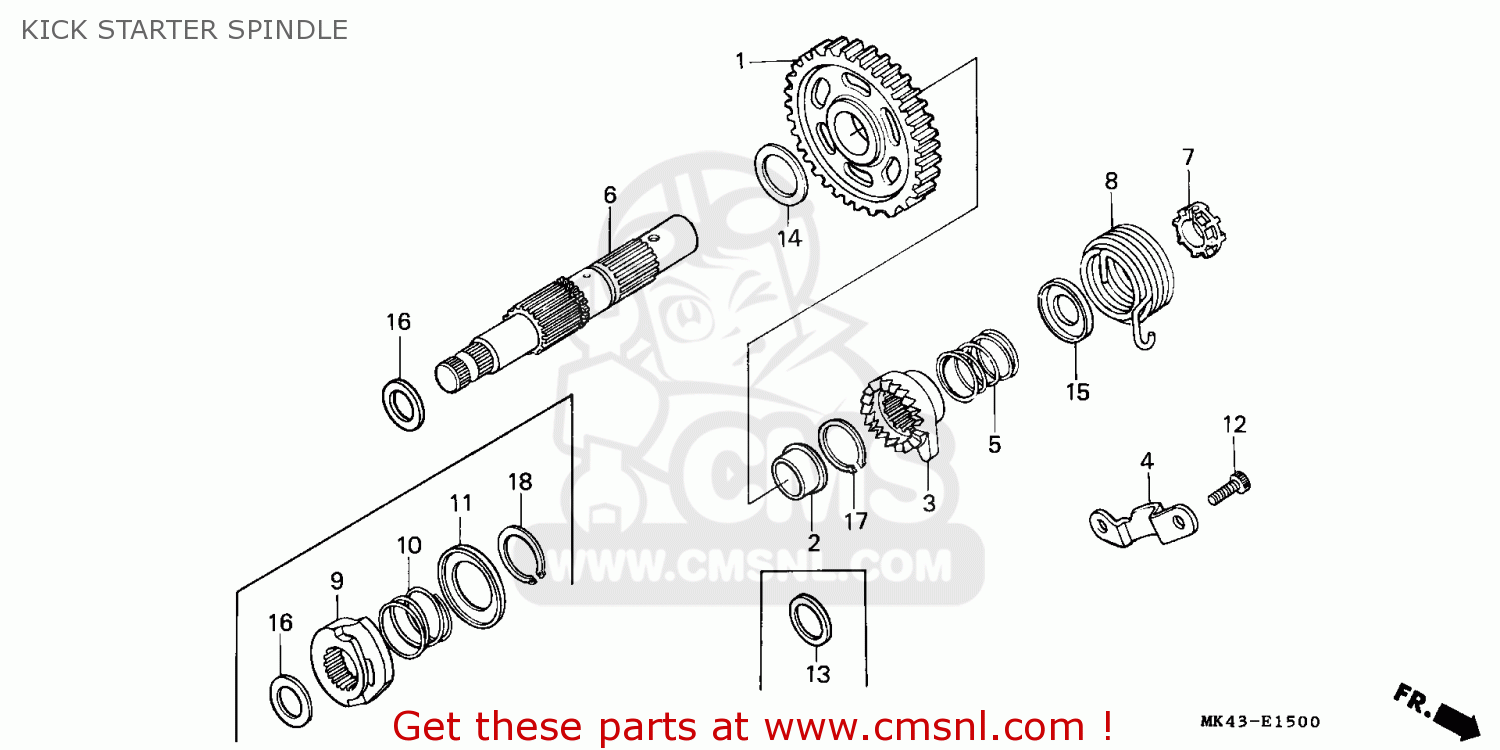

Kick starter spindle diagram XBR500S 1987 (H) GERMANY

KICK STARTER SPINDLE XBR500S 1987 (H) GERMANY
KICK STARTER SPINDLE XBR500S 1987 (H) GERMANY
prices are in EUR
ref
part #
description
quantity
1
28211ML6770
ref: 1
PINION,ONLY KICK
28211ML6770
€ 112.00
2
28212MK2680
ref: 2
COLLAR,KICK START
28212MK2680
€ 12.50
3
28213KF0000
ref: 3
RATCHET,KICK STAR
28213KF0000
€ 36.50
4
28215MK2000
ref: 4
PLATE,KICK STOP
28215MK2000
€ 14.00
5
28223KF0004
ref: 5
SPG,KICK START.
28223KF0004
€ 6.00
6
28250MG3000
ref: 6
SPINDLE,KICK STAR
28250MG3000
€ 122.00
7
28255MG3010
ref: 7
COLLAR,KICK START
28255MG3010
€ 7.00
8
28261MK2000
ref: 8
SPRING,KICK START
28261MK2000
€ 12.00
9
28272MK4600
ref: 9
CAM,KICK,SHAFT
28272MK4600
€ 37.00
10
28283MK2681
ref: 10
SPRING,CAM RESET
€ 2.50
11
28284428000
ref: 11
SEAT,CAM RESETSPG
28284428000
€ 3.00
12
90131MA7000
ref: 12
BOLT,SOCKET,8X20
90131MA7000
€ 5.50
14
90452VM0000
ref: 14
WASHER,22X46X3
90452VM0000
€ 6.50
15
90501KF0000
ref: 15
WASHER,KICK SPRIN
90501KF0000
€ 5.50
16
90554700000
ref: 16
WASHER,THRUST
90554700000
€ 1.50
17
90601329000
ref: 17
CIR-CLIP,22MM
90601329000
€ 3.00
18
9451024000
ref: 18
CIRCLIP,24MM
9451024000
€ 1.50
