GASKET KIT A

XBR500S 1987 (H) GERMANY

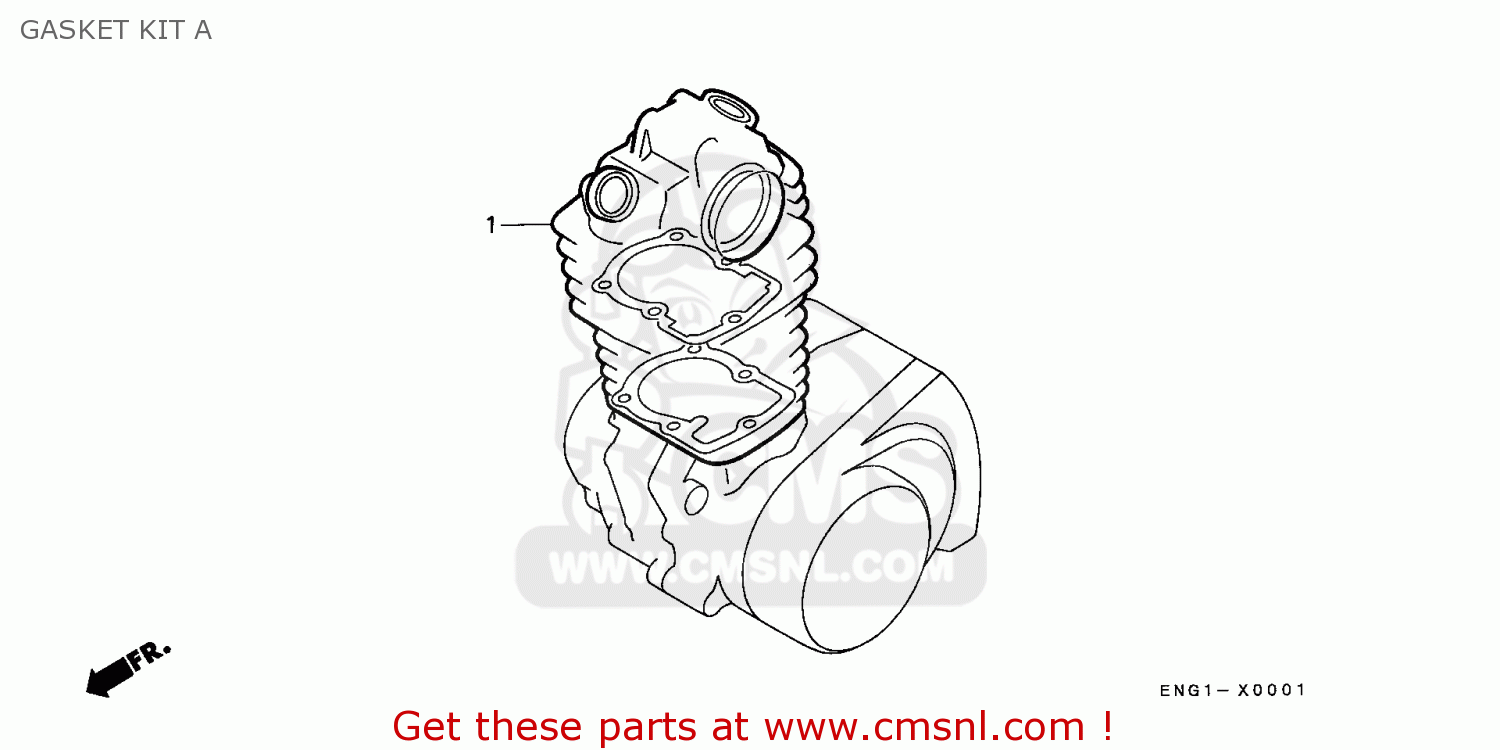

Gasket kit a diagram XBR500S 1987 (H) GERMANY

GASKET KIT A XBR500S 1987 (H) GERMANY
GASKET KIT A XBR500S 1987 (H) GERMANY
prices are in EUR
ref
part #
description
quantity
1
061A1MK4602
ref: 1
GASKET KIT A
€ 114.50
1
12191MK2000
ref: 1
GASKET,CYLINDER (MCA)
€ 10.00
1
12209MC8005
ref: 1
SEAL,VALVE STEM
12209MC8005
€ 11.50
1
12251MK4601
ref: 1
GASKET,CYLINDER (NAS)
€ 50.00
1
12391MG2790
ref: 1
GASKET,HEAD COVER (NAS)
12391MG2790
€ 42.00
1
18291216000
ref: 1
GASKET,EX PIPE (NAS)
18291216000
€ 4.50
1
90544439930
ref: 1
PACKING
90544439930
€ 2.00
1
91301MK4601
ref: 1
O-RING,SPECIAL
91301MK4601
€ 8.50
1
91301MK4602
ref: 1
O-RING,SPECIAL
€ 8.50
1
91303MG2790
ref: 1
O-RING,14.5X2.4
€ 3.00
1
91352MG2790
ref: 1
O-RING,39.5X2.6
91352MG2790
€ 5.50
1
91352MG2792
ref: 1
O-RING,39.5X2.6
91352MG2792
€ 5.50
