REAR CUSHION

CG125 1998 (W) GERMANY / KPH SL

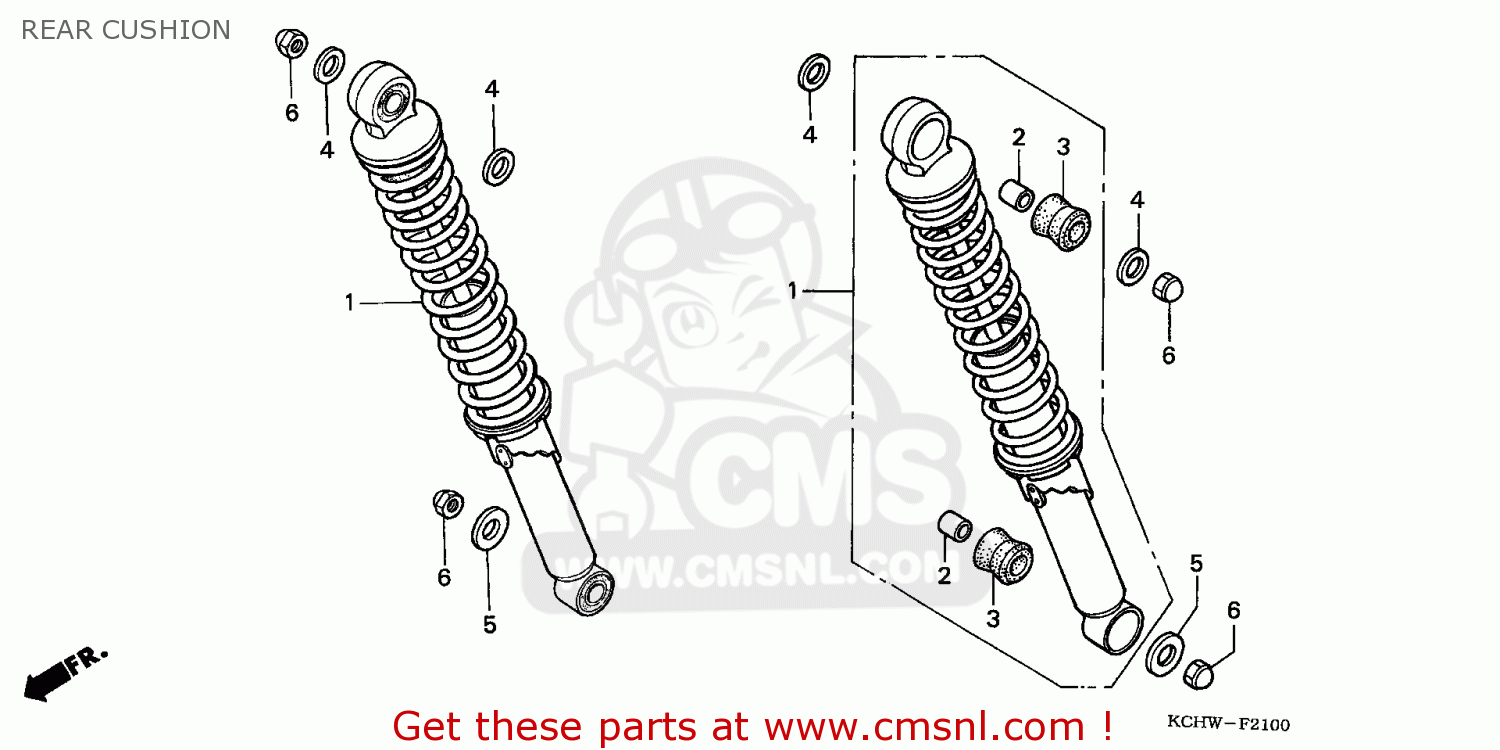

Rear cushion diagram CG125 1998 (W) GERMANY / KPH SL

REAR CUSHION CG125 1998 (W) GERMANY / KPH SL
REAR CUSHION CG125 1998 (W) GERMANY / KPH SL
prices are in EUR
ref
part #
description
quantity
1
52400KCH780
ref: 1
CUSHION ASSY,REAR
€ 150.00
2
52486056000
ref: 2
COLLAR, CUSHION
52486056000
€ 2.00
3
52489KCS690
ref: 3
BUSH,RUBBER
€ 4.00
4
90401383670
ref: 4
WASHER,PLAIN,12MM
90401383670
€ 5.00
5
90527KCH780
ref: 5
WASHER,10.3MM
€ 1.50
6
94021100200S
ref: 6
NUT, 10MM
94021100200S
€ 2.50
