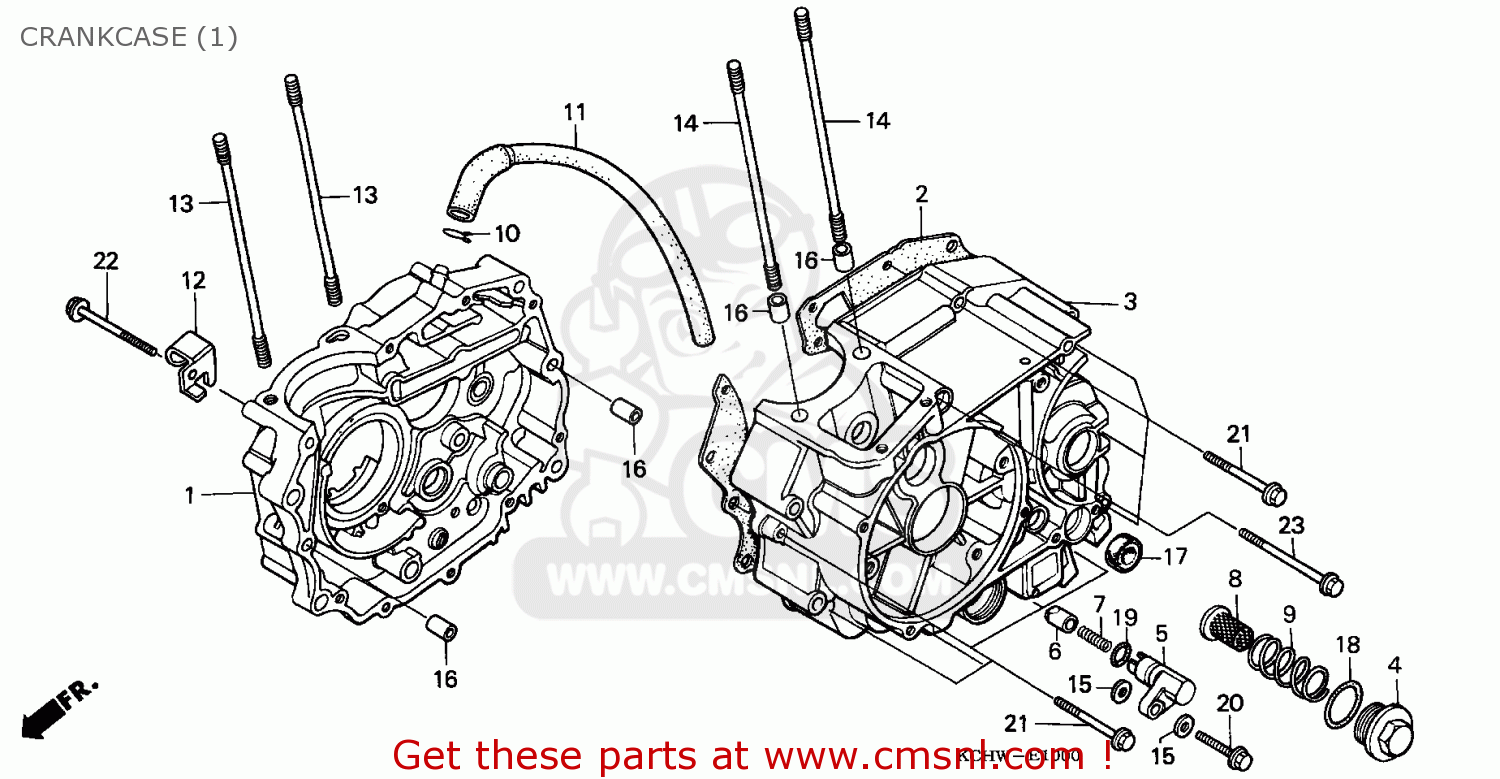

CRANKCASE (1)

ref

part #

description

quantity

1

11100KCS651
ref: 1

CRANK CASE COMP,R

€ 236.50

2

11191KY0600
ref: 2

GASKET,CRANK CASE (NAS)

€ 17.50

3

11200KCH680
ref: 3

CRANK CASE COMP,L

€ 361.00

4

12361383000
ref: 4

CAP,HOLE

€ 6.00

5

14511KCS650
ref: 5

HOLLDER,PUSH PLUG

€ 19.50

6

14521KCS650
ref: 6

PLUG,BRG PUSH

€ 9.50

7

14531KY0890
ref: 7

SPRING,BEARING PU

€ 2.50

8

15421107000
ref: 8

SCREEN,OIL.FILTER

€ 7.00

9

15426107000
ref: 9

SPRING,SCREEN

€ 3.00

10

15707634000
ref: 10

CLIP, OIL DRAIN TUBE

€ 3.50

11

15761KCS650
ref: 11

TUBE,BREATHER

€ 13.50

12

22838355000
ref: 12

HOLDER,CLUH.WIRE

€ 10.00

13

90032377010
ref: 13

BOLT,CYLIN 8X122

€ 8.00

14

90034397010
ref: 14

BOLT B,CYLIN.STUD

€ 8.50

15

90488425000
ref: 15

WASHER,SEALING 6

€ 2.50

16

90703HC4000
ref: 16

PIN,DOWEL,10X14

€ 2.00

17

91206286013
ref: 17

OIL SEAL,14X28X7

€ 4.50

18

91303KK3830
ref: 18

O-RING,35X3

€ 3.00

19

91335567000
ref: 19

O RING,13X2.5

€ 2.50

20

957010602500
ref: 20

BOLT,FLANGE,6X25

€ 1.50

21

960010605000
ref: 21

BOLT,FLANGE,6X50

€ 2.00

22

960010605500
ref: 22

BOLT,FLANGE,6X55

€ 2.00

23

960010609500
ref: 23

BOLT,FLANGE,6X95

€ 2.50
