WIRE HARNESS / BATTERY

CB450K1 1968 USA

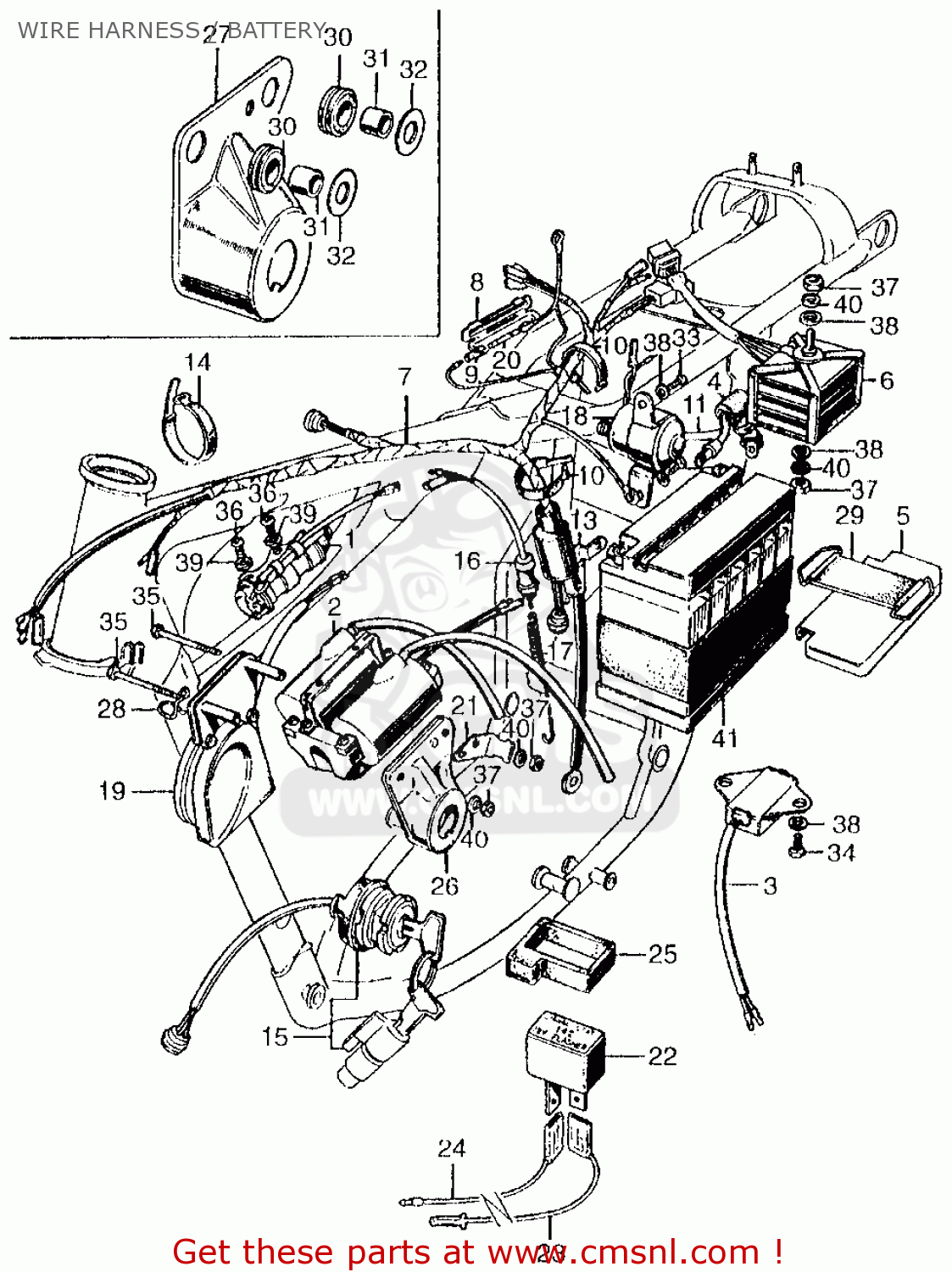

Wire harness / battery diagram CB450K1 1968 USA

WIRE HARNESS / BATTERY CB450K1 1968 USA
WIRE HARNESS / BATTERY CB450K1 1968 USA
prices are in EUR
ref
part #
description
quantity
1
30280292671
ref: 1
CONDENSER ASSY
30280292671
€ 73.50
1
30280292672
ref: 1
CONDENSER ASSY
30280292672
€ 73.50
2
30500292671
ref: 2
COIL IGNITION
€ 210.50
2
30500292672
ref: 2
COIL IGNITION
30500292672
€ 210.50
3
31400292670
ref: 3
POINTLESS
31400292670
€ 166.50
4
31468253000
ref: 4
COVER TERMINAL
31468253000
€ 3.50
4
31468268000
ref: 4
COVER
31468268000
€ 3.50
5
31532292000
ref: 5
3005572
COVER BATTERY
€ 11.00
5
31532292010
ref: 5
3005572
COVER BATTERY
31532292010
€ 11.00
6
31700292008
ref: 6
RECTIFIER,SILICON
31700292008
€ 134.50
6
31700455671
ref: 6
RECTIFIER,SILICON
31700455671
€ 134.50
7
32100292305
ref: 7
HARNESS,WIRE
€ 154.00
7
32100292672
ref: 7
HARNESS,WIRE
€ 154.00
8
32111230000
ref: 8
CASE,FUSE
32111230000
€ 5.00
9
32112230000
ref: 9
CONNECTOR,FUSE
32112230000
€ 6.00
10
32161286000
ref: 10
BAND,B1 WIRE
€ 3.00
10
32162283000
ref: 10
BAND B3,WIRE HARN
€ 4.00
10
32162286000
ref: 10
BAND B3,WIRE HARN
€ 4.00
10
9501462200
ref: 10
BAND,B1 WIRE
9501462200
€ 3.00
11
32401292000
ref: 11
CABLE,BATTERY
32401292000
€ 12.50
12
32411230000
ref: 12
COVER,TERMINAL
32411230000
€ 5.00
12
32411253000
ref: 12
COVER TERMINAL
32411253000
€ 5.00
13
32601292000
ref: 13
CABLE,EARTH
€ 15.50
14
32161268000
ref: 14
BAND A1,WIRE
32161268000
€ 3.50
14
32161404000
ref: 14
BAND,BI WIRE
32161404000
€ 3.50
14
32983268000
ref: 14
BAND A HARNESS
€ 3.00
14
9501461100
ref: 14
BAND A1,WIRE
9501461100
€ 3.50
15
35010292013
ref: 15
SWITCH KID
35010292013
€ 118.50
15
35010300003
ref: 15
KIT,COMB.SWITCH
€ 118.50
15
35010303003
ref: 15
KEY-SET
€ 118.50
15
35010315007
ref: 15
KEY SET.
35010315007
€ 118.50
15
35010315017
ref: 15
KEY,SET
35010315017
€ 118.50
15
35010336611
ref: 15
KEY-SET
35010336611
€ 118.50
16
35350KJ9405
ref: 16
SWITCH ASSY.,RR.S
35350KJ9405
€ 21.50
16
35350336000
ref: 16
SWITCH,STOP LAMP
35350336000
€ 21.50
17
35357292010
ref: 17
SPRING,STOPSWITCH
35357292010
€ 17.00
18
35850292017
ref: 18
SWITCH MAGNETIC
35850292017
€ 98.50
19
38100286014
ref: 19
HORN ASSY
€ 157.00
20
38201250000
ref: 20
FUSE,15A
38201250000
€ 1.00
20
9820011500
ref: 20
FUSE,15A
9820011500
€ 1.00
21
38300292670
ref: 21
SIGNAL STAT
38300292670
€ 42.00
21
38301KJ6741
ref: 21
RELAY,WINKER
€ 42.00
21
38301KJ6742
ref: 21
RELAY,WINKER
€ 42.00
21
38301KJ6743
ref: 21
RELAY COMP.,WINKE
38301KJ6743
€ 42.00
22
38301292670
ref: 22
3000629
STAY,WINKER RELAY
38301292670
€ 2.50
22
38301292671
ref: 22
3003133
STAY
€ 4.00
22
38301292672
ref: 22
STAY WINKER RELAY
€ 5.50
23
38304292670
ref: 23
3000629
SUB-WIRE A
38304292670
€ 2.50
24
38305292670
ref: 24
3000629
SUB CORD,RELAY
38305292670
€ 3.00
24
38305243670
ref: 24
CORD B WINKER
38305243670
€ 3.50
25
38306292670
ref: 25
SUSPENSION,RELAY
€ 1.00
26
50375292010Z
ref: 26
3003133
BRACKET, MAIN SWITCH
50375292010Z
€ 31.00
27
50375292020B
ref: 27
BRACKET SWITCH
50375292020B
€ 14.50
28
50402283000
ref: 28
CLAMPER CABLE
50402283000
€ 7.50
29
83631283010
ref: 29
BAND E,BATTERY
€ 9.00
29
83631310000
ref: 29
BAND E,BATTERY
€ 9.00
29
9501216000
ref: 29
BAND E,BATTERY
9501216000
€ 9.00
29
9501216001
ref: 29
BAND,E,BATTERY
9501216001
€ 9.00
30
84705292000
ref: 30
3006375
RUBBER,NU BRACKET
84705292000
€ 2.50
30
84705292000
ref: 30
RUBBER,NU BRACKET
84705292000
€ 2.50
31
84706286000
ref: 31
COLLAR NO BRACKET
84706286000
€ 3.00
32
90581701000
ref: 32
3006375
WASHER,18MM
90581701000
€ 2.50
32
90581701000
ref: 32
WASHER,18MM
90581701000
€ 2.50
32
90581831650
ref: 32
3006375
WASHER,18MM
90581831650
€ 3.50
32
90581831650
ref: 32
WASHER,18MM
90581831650
€ 3.50
33
9200006008
ref: 33
BOLT,HEX 6X8
9200006008
€ 1.00
33
92000060080A
ref: 33
BOLT,HEX 6X8
€ 1.00
33
92101060080A
ref: 33
BOLT,HEX.,6X8
92101060080A
€ 1.00
33
9200006020
ref: 33
BOLT,HEX 6X20
9200006020
€ 1.00
33
92101060200A
ref: 33
BOLT,HEX.,6X20
92101060200A
€ 1.00
34
9200006012
ref: 34
BOLT,HEX 6X12
9200006012
€ 1.00
34
9210106012
ref: 34
BOLT,HEX.,6X12
9210106012
€ 1.00
34
92101060120A
ref: 34
BOLT,HEX.,6X12
92101060120A
€ 1.00
35
9200006080
ref: 35
BOLT,HEX 6X80
9200006080
€ 2.00
35
92101060800A
ref: 35
BOLT,HEX,6X80
92101060800A
€ 2.00
35
9200006090
ref: 35
BOLT, HEX., 6X90
9200006090
€ 2.00
35
92000060900A
ref: 35
BOLT,HEX.,6X90
92000060900A
€ 2.00
35
92101060900A
ref: 35
BOLT,HEX 6X90
€ 2.00
36
93500050080A
ref: 36
SCREW,CROSS 5X8
93500050080A
€ 0.50
37
90310KA3711
ref: 37
NUT HEX 6MM
€ 1.00
37
94000060000S
ref: 37
NUT,HEX.,6MM
€ 1.00
37
9400106000
ref: 37
NUT,HEX 6MM
9400106000
€ 1.00
37
94001060000S
ref: 37
NUT,HEX 6MM
94001060000S
€ 1.00
37
94001060080S
ref: 37
NUT,HEX.,6MM
€ 1.00
37
94001062000S
ref: 37
NUT,HEX.,6MM
94001062000S
€ 1.00
37
9403006000
ref: 37
NUT,HEX 6MM
€ 1.00
38
9410106000
ref: 38
WASHER,PLAIN, 6MM
9410106000
€ 0.50
38
9410106080
ref: 38
WASHER PLAIN 6MM
9410106080
€ 1.00
39
9411105000
ref: 39
WASHER,SPG.,5MM
9411105000
€ 1.00
40
9411106000
ref: 40
WASHER,SPRING,6MM
9411106000
€ 1.00
41
31500460672
ref: 41
BATTERY (YB12A-A
31500460672
€ 98.00
41
9820322250
ref: 41
BATTERY ASSY.
€ 98.00
