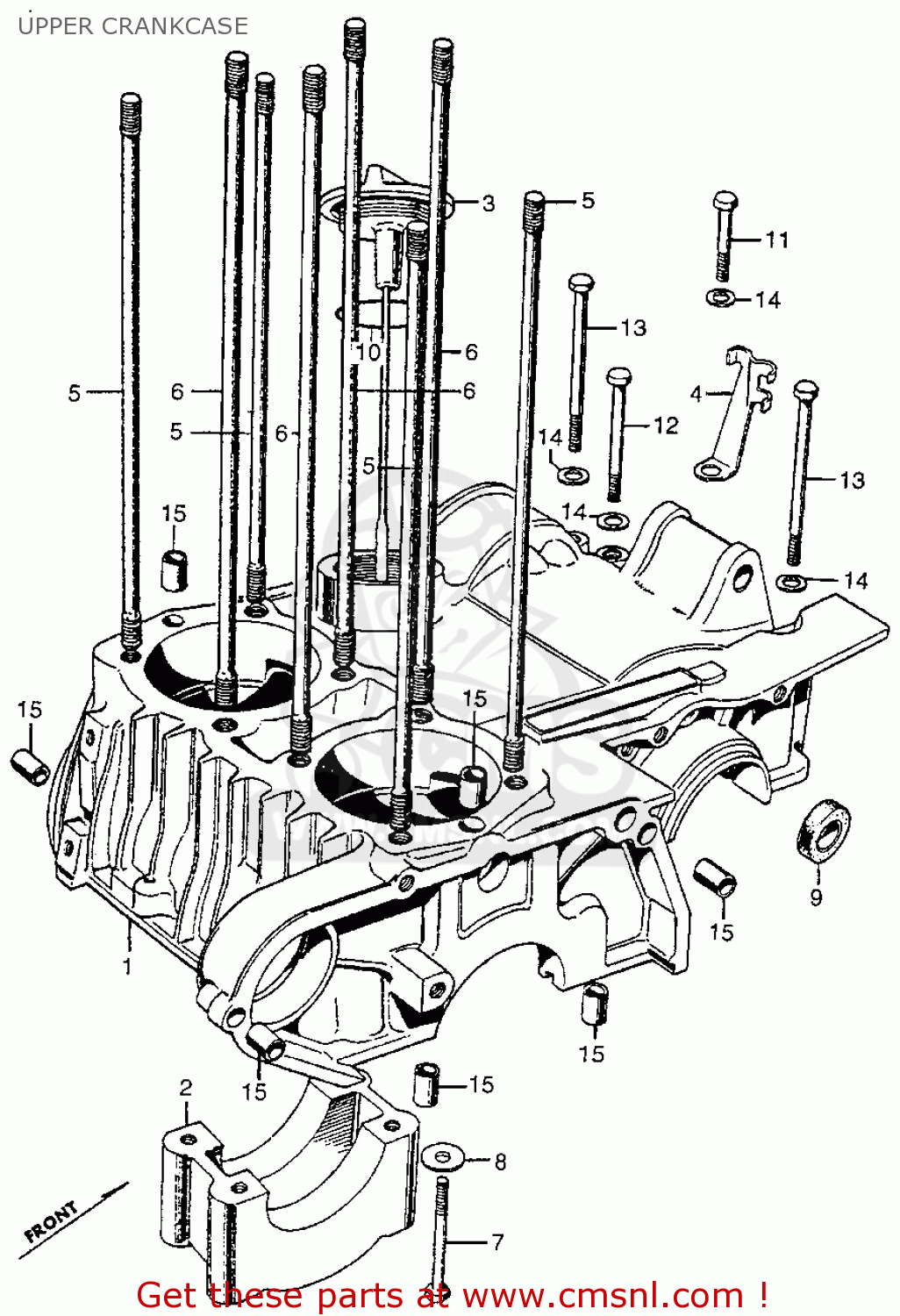

UPPER CRANKCASE

ref

part #

description

quantity

1

11100292080
ref: 1
3020234

CRANKCASE,UPPER

€ 222.50

2

13401292020
ref: 2

BEARINGCAP,CENTER

€ 42.50

3

15650292000
ref: 3

GAUGE,OIL LEVEL

€ 31.00

3

15650292010
ref: 3

GAUGE,OIL LEVEL

€ 31.00

4

32921283010
ref: 4

CLAMPER, DYNAMO CORD

€ 4.00

5

90031292000
ref: 5

BOLT,CYLINDERSTUD

€ 7.00

6

90032292000
ref: 6

BOLT,CYLINDERSTUD

€ 7.00

7

90083292000
ref: 7

BOLT,HEX 8X71

€ 4.50

8

90402822000
ref: 8

WASHER,HEAD,8MM

€ 2.00

9

91201283005
ref: 9

OIL SEAL,12X25X45

€ 6.00

9

91201292003
ref: 9

OIL SEAL 12X25X45

€ 6.00

9

91202426003
ref: 9

OILSEAL,12X25X4.5

€ 6.00

10

91303283000
ref: 10

O RING, 37.2X2.3

€ 4.00

10

91305KT7003
ref: 10

O-RING,37X2.4

€ 4.00

11

9200006040
ref: 11

BOLT,HEX 6X40

€ 1.00

11

92000060400A
ref: 11

BOLT,HEX., 6X40

€ 1.00

11

92101060400A
ref: 11

BOLT,HEX.,6X40

€ 1.00

12

9200006063
ref: 12

BOLT,HEX 6X63

€ 1.50

12

92000060630A
ref: 12

BOLT,HEX., 6X63

€ 1.50

12

9200006065
ref: 12

BOLT HEX 6X65

€ 1.50

12

92101060650A
ref: 12

BOLT,HEX,6X65

€ 1.50

13

9200006080
ref: 13

BOLT,HEX 6X80

€ 2.00

13

92101060800A
ref: 13

BOLT,HEX,6X80

€ 2.00

14

9410106000
ref: 14

WASHER,PLAIN, 6MM

€ 0.50

14

9410106080
ref: 14

WASHER PLAIN 6MM

€ 1.00

15

9430110140
ref: 15

DOWEL PIN

€ 3.00
