032 WATER RADIATOR ASSY

SBK998S 2002 EU (SUPERBIKE 998S BAYLISS) 9151-1531A

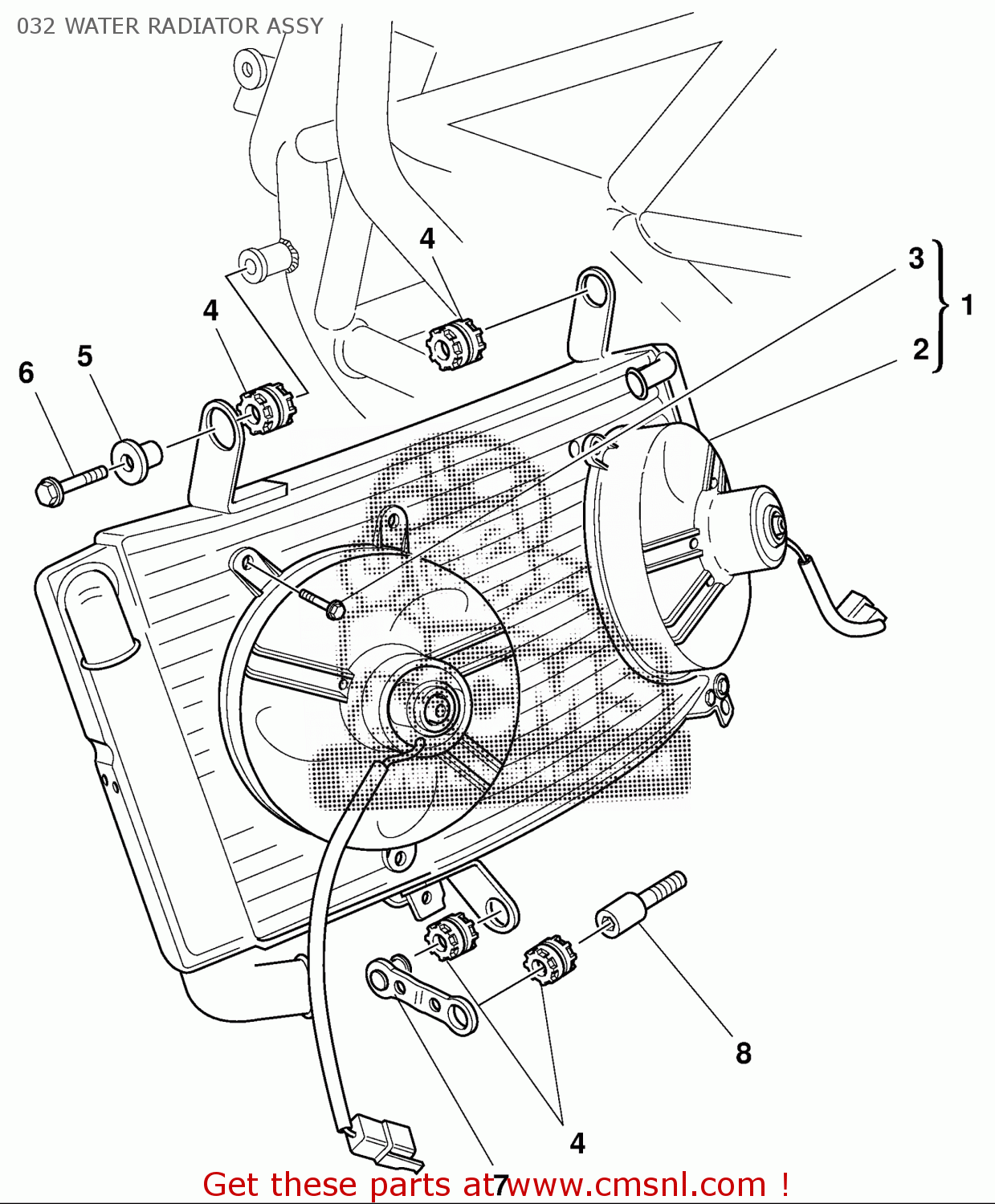

032 water radiator assy diagram SBK998S 2002 EU (SUPERBIKE 998S BAYLISS) 9151-1531A

032 WATER RADIATOR ASSY SBK998S 2002 EU (SUPERBIKE 998S BAYLISS) 9151-1531A

prices are in EUR

ref

part #

description

quantity

1

54840281A
ref: 1

WATER COOLER

€ 1,078.50

2

55040111A
ref: 2

ELECTRIC FAN

€ 174.50

3

77250251A
ref: 3

SCREW M6X10

€ 2.00

4

76410221A
ref: 4

VIBRATION DAMPER PAD

€ 2.00

5

000062652
ref: 5

SPACER

€ 2.00

6

000062729
ref: 6

SCREW TE M6X1.00X25 CH8

€ 1.00

7

83012101A
ref: 7

BRACKET

€ 32.00

8

77912021A
ref: 8

SCREW, SPECIAL

€ 11.00
