012 ELECTRIC STARTER AND IGNITION

SBK998S 2002 EU (SUPERBIKE 998S BAYLISS) 9151-1531A

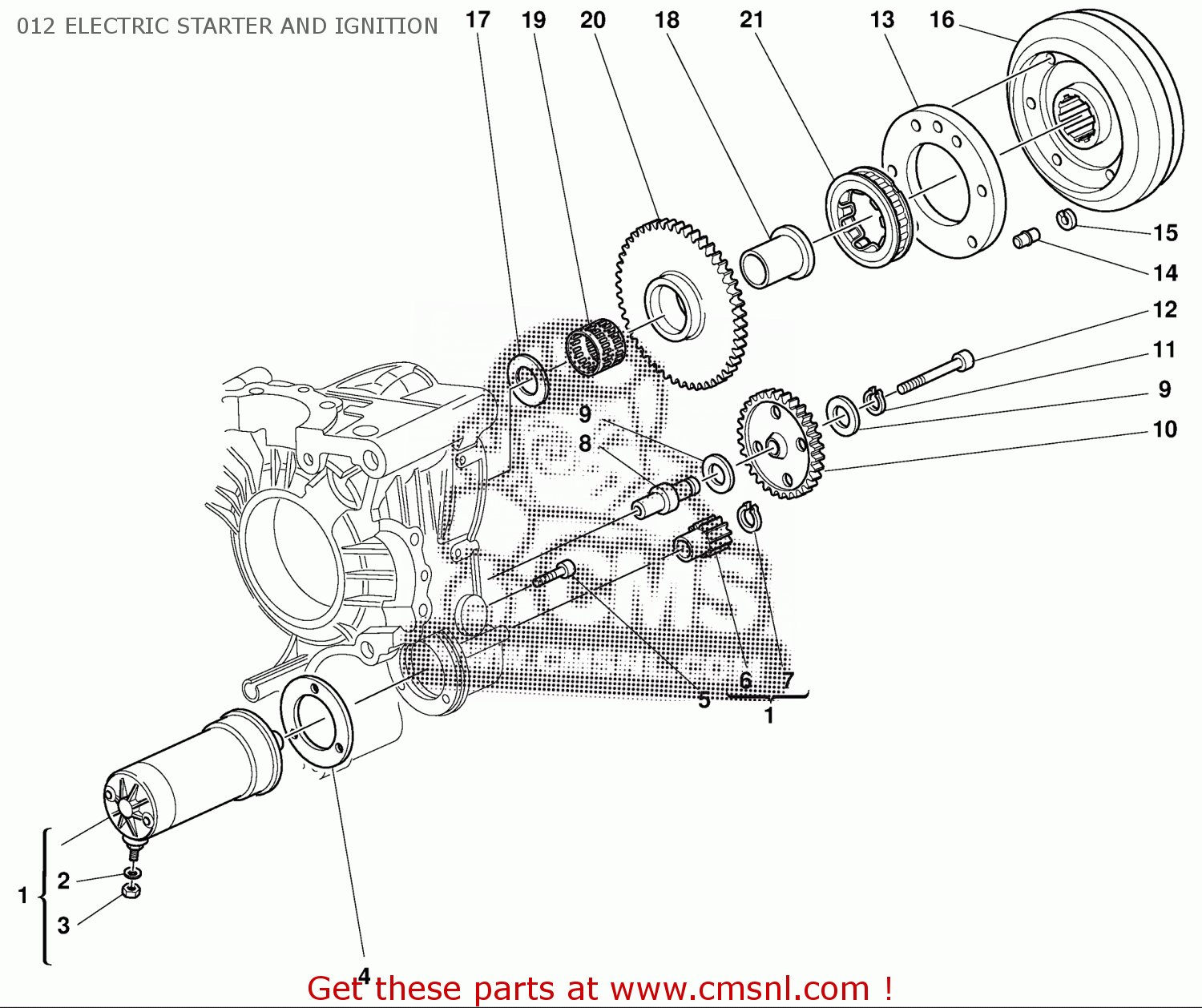

012 electric starter and ignition diagram SBK998S 2002 EU (SUPERBIKE 998S BAYLISS) 9151-1531A

prices are in EUR

ref

part #

description

quantity

27040011A
ref: 1

STARTING MOTOR

€ 447.50

734006N01
ref: 2

WASHER, SPRING

€ 1.00

41790506A
ref: 3

NUT

€ 1.00

78810541A
ref: 4

ENGINE STARTER GASKET

€ 3.00

60N102510
ref: 5

BOLT, SOCKET HEAD M6X25

€ 1.00

17610011A
ref: 6

PINION STARTER MOTOR

€ 24.00

735001237
ref: 7

CIRCLIP

€ 1.00

066050020
ref: 8

STARTER REDUCTION SHAFT

€ 22.00

85610711A
ref: 9

WASHER

€ 1.00

17610091A
ref: 10

IDLE GEAR

€ 113.50

735001440
ref: 11

CIRCLIP 14 DIN 471

€ 1.00

77150782B
ref: 12

SCREW M6X65

€ 1.00

16010571A
ref: 13

FLANGE STARTING CLUTCH

€ 82.00

86310021A
ref: 14

PIN DOWEL

€ 3.00

064729040
ref: 15

STOP RING

€ 1.00

27610251B
ref: 16

FLYWHEEL

€ 259.50

061950065
ref: 17

THRUST WASHER 35.5X48

€ 1.00

88110101C
ref: 18

BUSH

€ 22.00

70140031A
ref: 19

BEARING, NEEDLE

€ 24.00

17310123A
ref: 20

GEAR, ELECTRIC STARTER T71

€ 143.50

70140071A
ref: 21

CLUTCH, ONE WAY

€ 71.00
