STARTING MOTOR

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

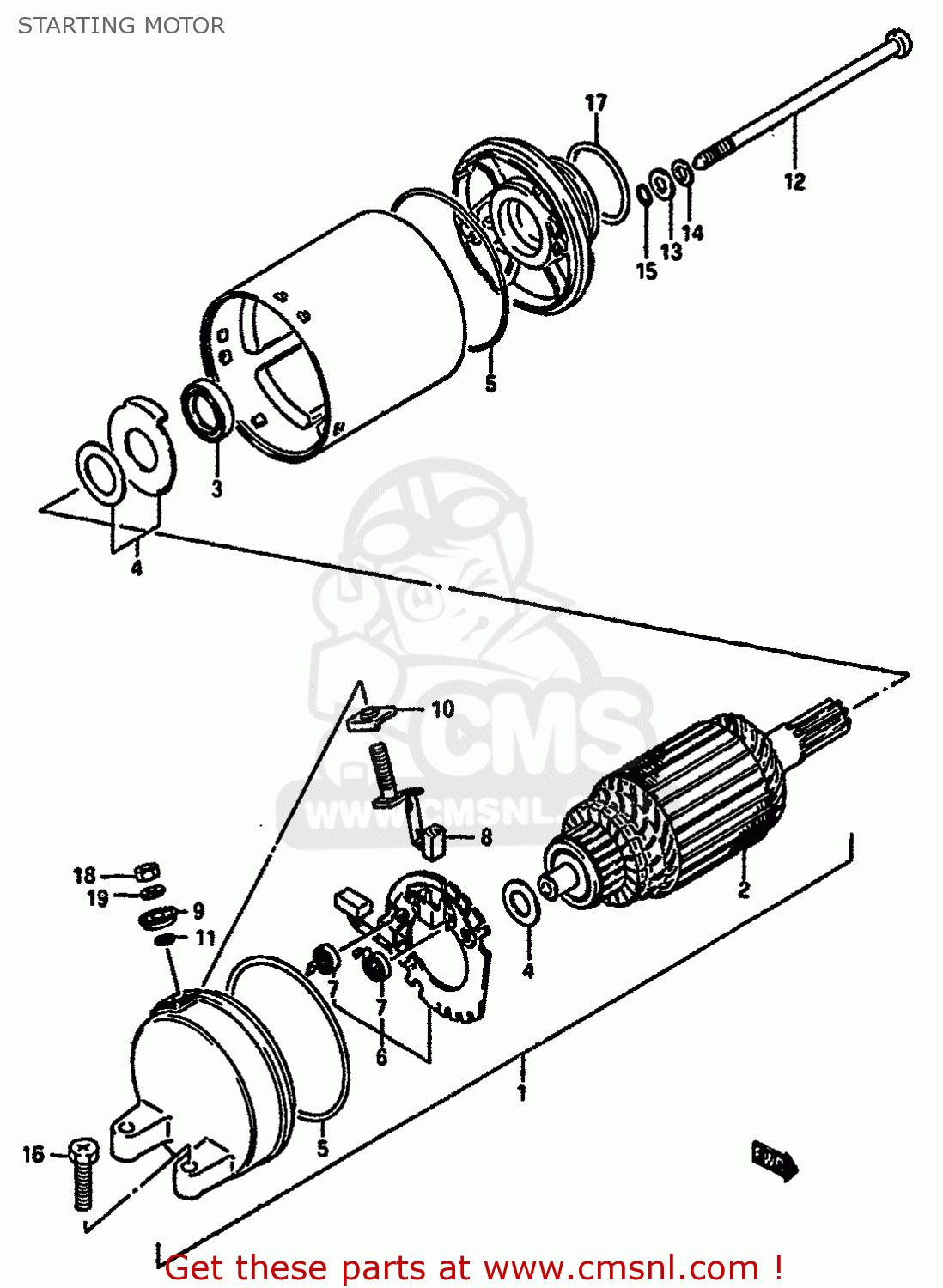

Starting motor Schaubild GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

STARTING MOTOR GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
STARTING MOTOR GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1
3110027A00
ref: 1
MOTOR ASSEMBLY,STARTING
3110027A00
€ 548.50
2
3131027A00
ref: 2
ARMATURE
€ 207.00
3
3115343400
ref: 3
SEAL,OIL
3115343400
€ 18.50
4
3117043400
ref: 4
SHIM SET,STARTING MOTOR
3117043400
€ 3.50
5
3126444110
ref: 5
O RING
3126444110
€ 7.50
6
3113244110
ref: 6
HOLDER,BRUSH
€ 44.00
7
3113565010
ref: 7
SPRING
3113565010
€ 3.00
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 11.50
9
3117238300
ref: 9
BUSHING
3117238300
€ 4.00
10
3117138300
ref: 10
BUSH,B
3117138300
€ 5.50
11
3114338300
ref: 11
O RING
3114338300
€ 3.50
12
3128105310
ref: 12
BOLT
€ 8.00
13
3116105310
ref: 13
WASHER
€ 2.50
14
0832121055
ref: 14
WASHER,LOCK
0832121055
€ 2.50
15
3115638300
ref: 15
O RING
3115638300
€ 3.00
16
0912806024
ref: 16
SCREW (6X25)
0912806024
€ 2.00
17
0928024003
ref: 17
O RING(D:3,ID:24.5)
0928024003
€ 1.50
18
0831011066
ref: 18
NUT
€ 1.50
19
0832121066
ref: 19
WASHER,LOCK
0832121066
€ 1.50
