OIL PAN

GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

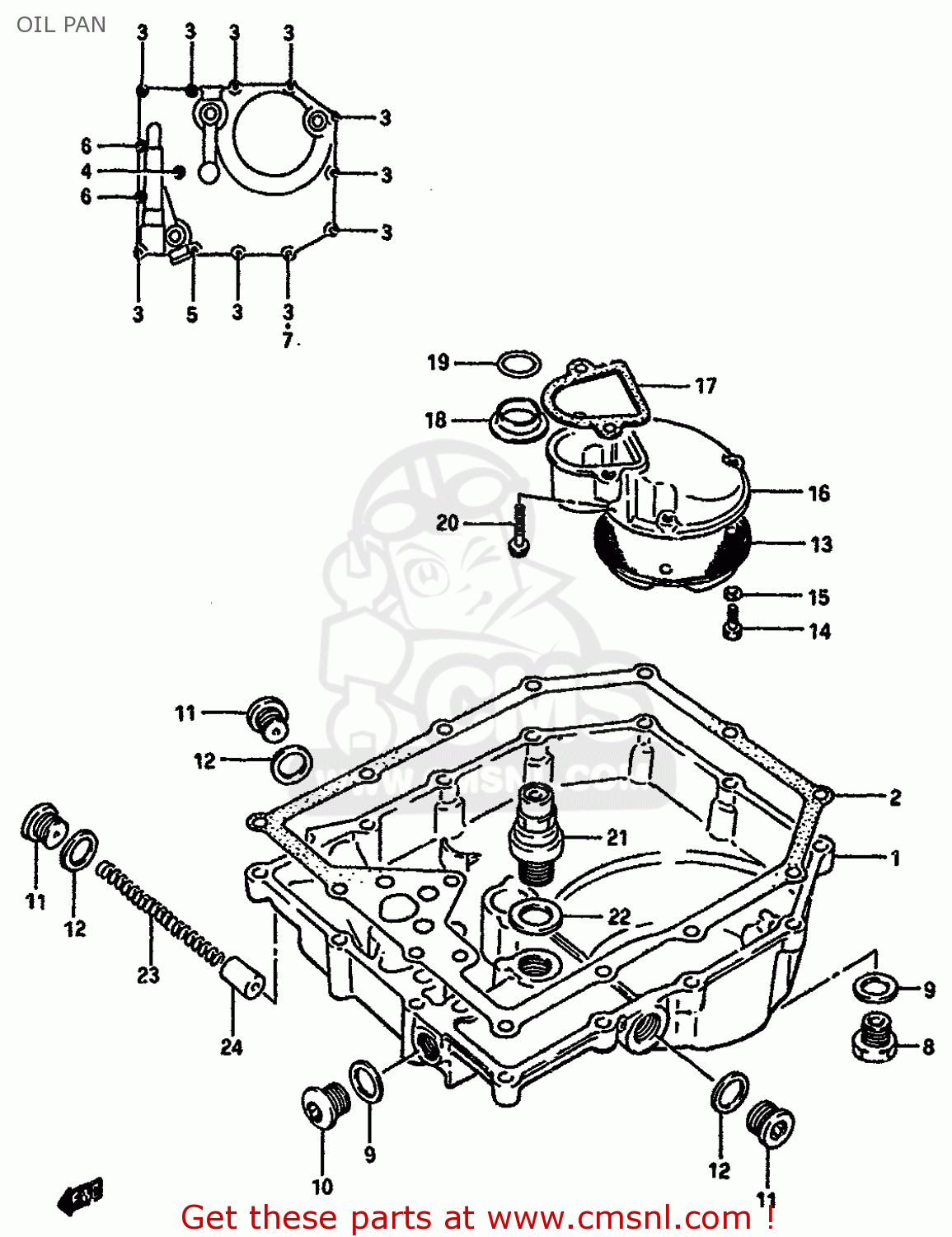

Oil pan Schaubild GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

OIL PAN GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
Preise sind in EUR
ref
Teil #
Beschreibung
Anzahl
1
1151127A01
ref: 1
PAN,OIL
1151127A01
€ 148.50
2
1148927A00
ref: 2
GASKET,OIL PAN (NAS)
1148927A00
€ 18.50
3
0711006255
ref: 3
BOLT
0711006255
€ 2.50
4
0711006355
ref: 4
BOLT
€ 3.00
5
0711006405
ref: 5
BOLT
0711006405
€ 3.00
6
0711006455
ref: 6
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 1.50
8
0924714001
ref: 8
PLUG
0924714001
€ 4.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.00
10
0924814004
ref: 10
PLUG
0924814004
€ 5.00
11
0924816010
ref: 11
PLUG
0924816010
€ 3.50
12
0916816D02
ref: 12
GASKET
€ 0.00
13
1652009300
ref: 13
STRAINER,ENGINE OIL
1652009300
€ 13.50
14
0110706127
ref: 14
BOLT
0110706127
€ 2.00
15
0832121067
ref: 15
WASHER,LOCK
0832121067
€ 1.50
16
1652527A00
ref: 16
PROTECTOR,OIL STRAINER
1652527A00
€ 19.50
17
1652827A02
ref: 17
GASKET,OIL STRAINER PROTECTOR (NAS)
1652827A02
€ 4.50
18
1652927A01
ref: 18
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
19
0928018009
ref: 19
O RING(D:3.2,ID:17.8)
0928018009
€ 6.50
20
0151706258
ref: 20
BOLT
0151706258
€ 1.50
21
1644027A00
ref: 21
VALVE ASSEMBLY,OIL RELIEF
1644027A00
€ 38.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
0916816002
€ 1.50
23
0944009023
ref: 23
SPRING
0944009023
€ 3.00
24
1644234301
ref: 24
PLUNGER,OIL CONTROLL
1644234301
€ 19.00
