CRANKCASE ('81-'82 A2/A3)

KDX175-A1 KDX175 1980 USA CANADA

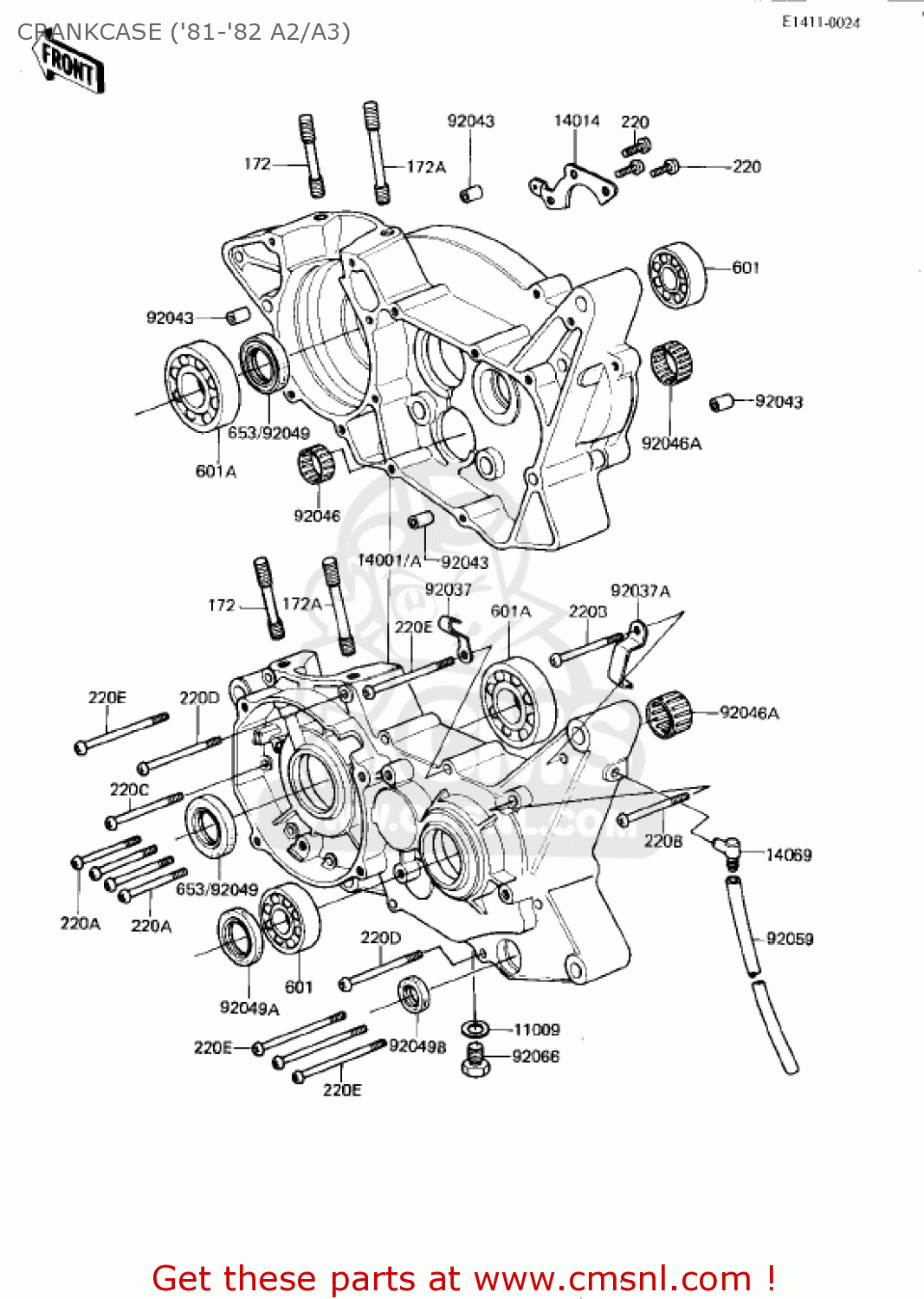

Crankcase ('81-'82 a2/a3) Schemat KDX175-A1 KDX175 1980 USA CANADA

CRANKCASE ('81-'82 A2/A3) KDX175-A1 KDX175 1980 USA CANADA
CRANKCASE ('81-'82 A2/A3) KDX175-A1 KDX175 1980 USA CANADA
ceny są w EUR
Ref
Część #
opis
Ilość
11009
92065058
Ref: 11009
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
14001
140015047
Ref: 14001
CRANKCASE SET
€ 421.50
14001A
140015074
Ref: 14001A
SET-CRANKCASE
€ 366.00
14014
140141003
Ref: 14014
PLATE POSITIONING
€ 3.00
14069
14069003
Ref: 14069
BREATHER
14069003
€ 6.50
92037
92037016
Ref: 92037
CLAMP,WIRING HARNESS
92037016
€ 1.50
92037A
920371073
Ref: 92037A
CLAMP
€ 2.50
92043
920431037
Ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92046
92046043
Ref: 92046
BEARING-NEEDLE,36BDM4
92046043
€ 16.00
92046A
920461007
Ref: 92046A
BEARING-NEEDLE,TLA161
920461007
€ 17.50
92049
920491068
Ref: 92049
SEAL-OIL,TBJ25407
920491068
€ 11.00
92049A
92050013
Ref: 92049A
OIL SEAL SC25376
92050013
€ 8.50
92049B
92051005A
Ref: 92049B
OIL SEAL,TB13225.5
92051005A
€ 5.00
92059
92059061
Ref: 92059
PIPE-BREATHER
€ 3.00
92066
92067001
Ref: 92066
PLUG-OIL DRAIN
92067001
€ 3.00
172
920041008
Ref: 172
STUD, 8X25
920041008
€ 3.00
172A
172G0860
Ref: 172A
STUD,8X60
172G0860
€ 3.50
220
220B0614
Ref: 220
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
220A
220B0645
Ref: 220A
SCREW-PAN HEAD,6X45
220B0645
€ 2.50
220B
220B0650
Ref: 220B
SCREW-PAN HEAD,6X50
220B0650
€ 2.00
220C
220B0655
Ref: 220C
SCREW-PAN HEAD,6X55
220B0655
€ 2.00
220D
220B0660
Ref: 220D
SCREW-PAN HEAD,6X60
220B0660
€ 2.50
220E
220B0670
Ref: 220E
SCREW-PAN HEAD,6X70
220B0670
€ 2.00
601
601B6204
Ref: 601
BEARING-BALL,#6204C3
601B6204
€ 7.50
601A
601B6305
Ref: 601A
BEARING-BALL,#6305C3
601B6305
€ 28.00
653
920491250
Ref: 653
SEAL-OIL
920491250
€ 11.00
