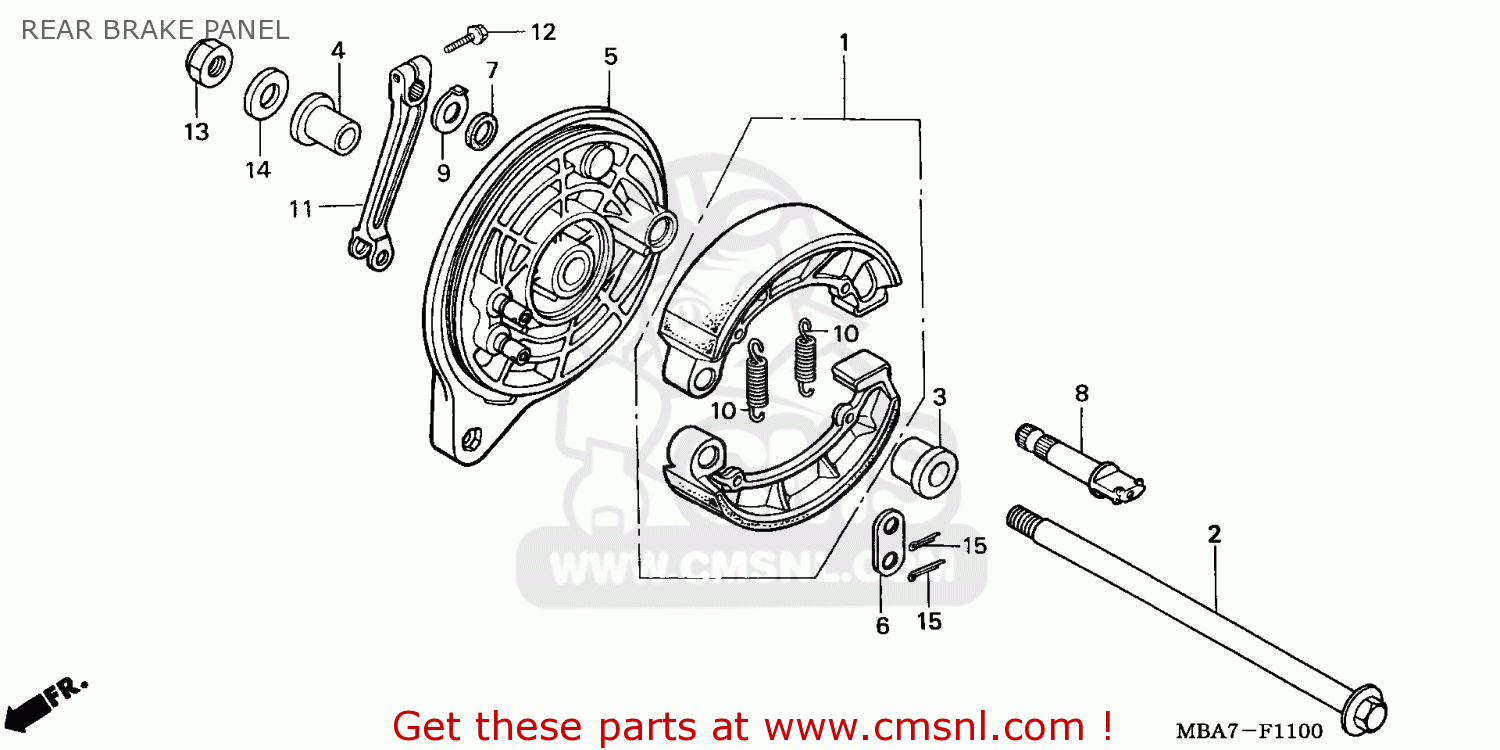

REAR BRAKE PANEL

VT750C SHADOW 2001 (1) AUSTRALIA / KPH

Rear brake panel Schemat VT750C SHADOW 2001 (1) AUSTRALIA / KPH

ceny są w EUR

Ref

Część #

opis

Ilość

06430MCL700
Ref: 1

SHOE SET,BRAKE (NAS)

€ 50.50

42301ML7000
Ref: 2

AXLE,RR WHEEL

€ 78.50

42311MBA000
Ref: 3

COLLAR,REAR WHEEL

€ 10.50

42311MG5670
Ref: 4

COLLAR,WHEEL SIDE

€ 28.00

43100MJ1832
Ref: 5

PANEL COMP.,REAR

€ 108.00

43102319000
Ref: 6

WASHER,ANCHER PIN

€ 3.50

43134300000
Ref: 7

SEAL BRAKE CAM

€ 2.00

43141MCL000
Ref: 8

CAM,REAR BRAKE

€ 27.00

43145ME5000
Ref: 9

INDICATOR,RR.BRK.

€ 4.00

43151346000
Ref: 10

SPRING,RR.BRAKE

€ 6.00

43410MJ1000
Ref: 11

ARM,REAR BRAKE

€ 48.00

90107MZ5000
Ref: 12

BOLT,FLANGE,8X25

€ 3.00

90305KZ4891
Ref: 13

NUT,U,18MM

€ 12.00

90401MBA000
Ref: 14

WASHER,18X32X2

€ 2.50

9420125200
Ref: 15

PIN COTTER 2.5MM

€ 1.00
