CRANKSHAFT/PISTON

VT750C SHADOW 2001 (1) AUSTRALIA / KPH

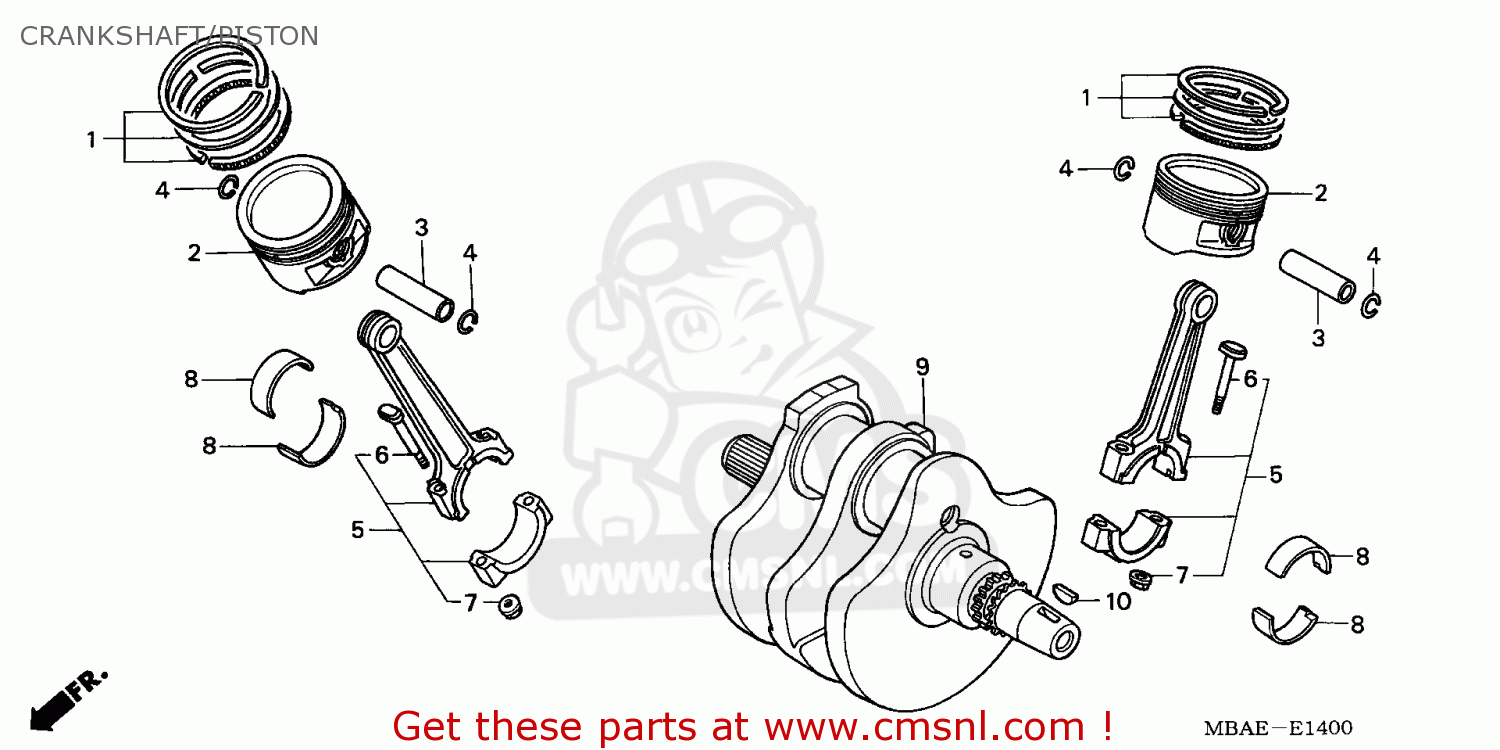

Crankshaft/piston Schemat VT750C SHADOW 2001 (1) AUSTRALIA / KPH

ceny są w EUR

Ref

Część #

opis

Ilość

13011MBAA40
Ref: 1

RING SET,PISTON

€ 46.50

13021MBAA40
Ref: 1

RING SET,PISTON O

€ 46.50

13031MBAA40
Ref: 1

RING SET,PISTON O

€ 46.50

13101MBA000
Ref: 2

PISTON

€ 90.50

13102MBA305
Ref: 2

PISTON,OSZ 0.25

€ 90.50

13103MBA305
Ref: 2

PISTON,OSZ 0.50

€ 90.50

13111MT3000
Ref: 3

PIN,PISTON

€ 14.50

13112MF5000
Ref: 4

CLIP 18MM,PISTON

€ 2.50

13210MBAA40
Ref: 5

CONN ROD ASSY

€ 167.00

13213463003
Ref: 6

BOLT CONN ROD

€ 8.00

13215ML7000
Ref: 7

NUT,CONNECTIONG R

€ 6.00

13216MF5003
Ref: 8

BRG A CONNROD

€ 16.50

13217MF5003
Ref: 8

BRG B CONNROD

€ 17.50

13218MF5003
Ref: 8

BRG C CONNROD

€ 16.50

13310MBAA40
Ref: 9

CRANKSHAFT COMP

€ 869.50

90741413000
Ref: 10

KEY,SPL.WOODRUFF

€ 3.50
