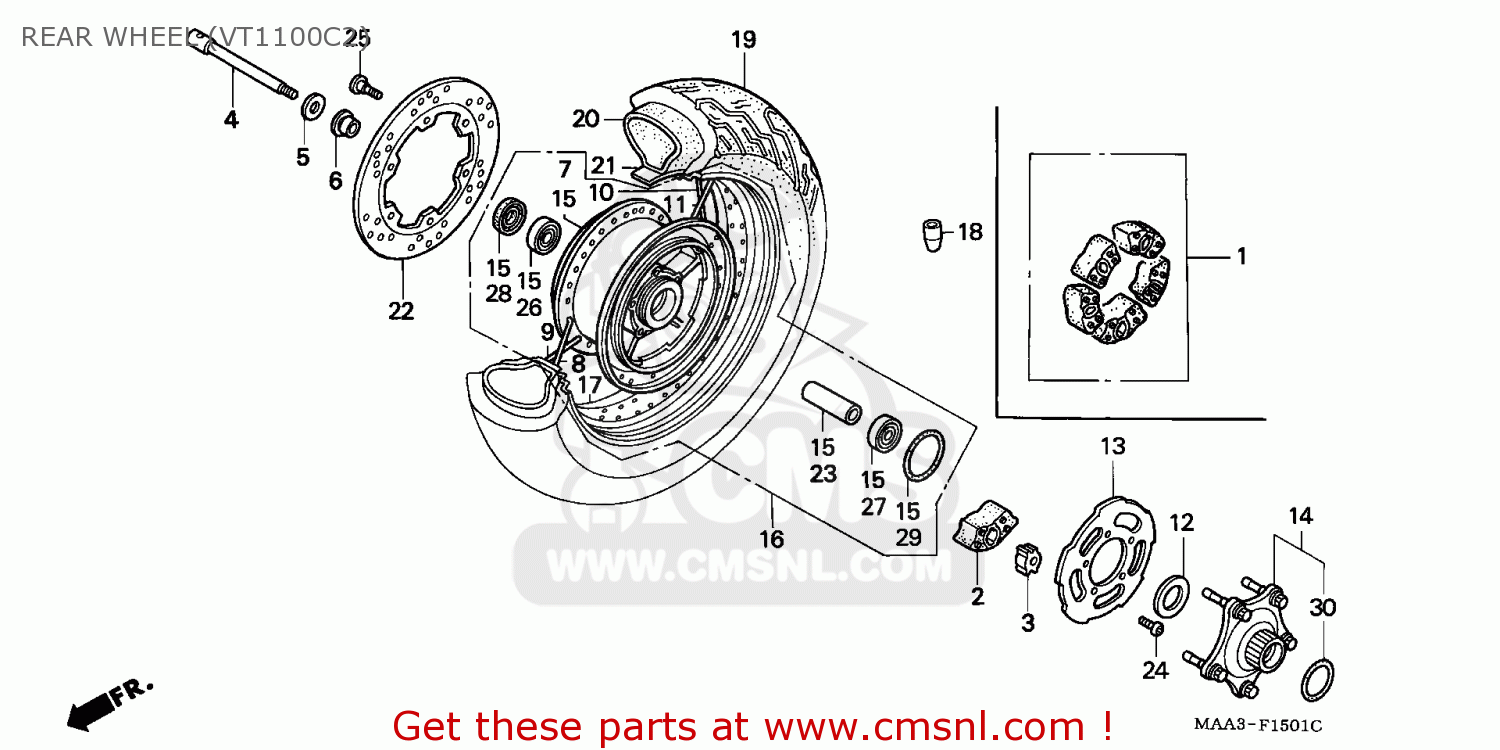

REAR WHEEL (VT1100C2)

Ref

Część #

opis

Ilość

2

41241MT8003
Ref: 2

DAMPER,RR WHEEL

€ 19.50

3

41242MR5000
Ref: 3

PIECE DAMPER WHEE

€ 13.00

4

42301MM8000
Ref: 4

AXLE,RR.WHEEL

€ 64.50

5

42312463000
Ref: 5

SPACER RR BRK

€ 5.50

6

42313422000
Ref: 6

COLLAR IRR BRKPNL

€ 25.50

7

42601MAH000
Ref: 7

HUB,RR WHEEL

€ 548.50

8

42604MAH405
Ref: 8

SPOKE SET,R RR IN

€ 4.50

9

42605MAH405
Ref: 9

SPOKE SET,R RR OU

€ 4.50

10

42606MAH405
Ref: 10

SPOKE SET,L RR IN

€ 4.50

11

42607MAH405
Ref: 11

SPOKE SET,L RR OU

€ 4.50

12

42616MT3000
Ref: 12

WASHER,THRUST

€ 6.00

13

42617MT8000
Ref: 13

HOLDER,DAMPER

€ 28.00

14

42630MAH305
Ref: 14

FLANGE SET,FINAL

€ 139.50

16

42650MAH305
Ref: 16

WHEEL SUB ASSY,RR

€ 875.00

17

42701MAH003
Ref: 17

RIM,RR WHEEL

€ 351.00

18

42707MR6670
Ref: 18

WEIGHT,BALANCER (

€ 7.00

18

42708MR1670
Ref: 18

WEIGHT,BALANCER (

€ 7.00

19

42711MAH671
Ref: 19

TIRE,RR (US DUN)

€ 491.50

20

42712MR1672
Ref: 20

TUBE,TIRE

€ 58.50

21

42713MR1672
Ref: 21

FLAP,TIRE

€ 8.00

22

43351MS2000
Ref: 22

DISK,RR BRAKE

€ 420.50

23

44620MT3000
Ref: 23

COLLAR,FR.AXLE DI

€ 14.00

24

90105KV3851
Ref: 24

BOLT,DISK,6X17

€ 3.00

24

90106MT3003
Ref: 24

BOLT,DISK,6X17

€ 3.00

25

90105MV9003
Ref: 25

BOLT,BRK DISK 8X24

€ 5.00

26

91052MAE004
Ref: 26

BEARING,BALL RADI

€ 22.50

27

91053MN5003
Ref: 27

B/BRG N/RAD N/COM

€ 56.50

28

91253443761
Ref: 28

DUST SEAL,30X47X8

€ 10.50

29

91302MA6003
Ref: 29

O-RING,61X2

€ 3.50

30

91358MB0000
Ref: 30

O-RING,46.5X3.5

€ 4.50
