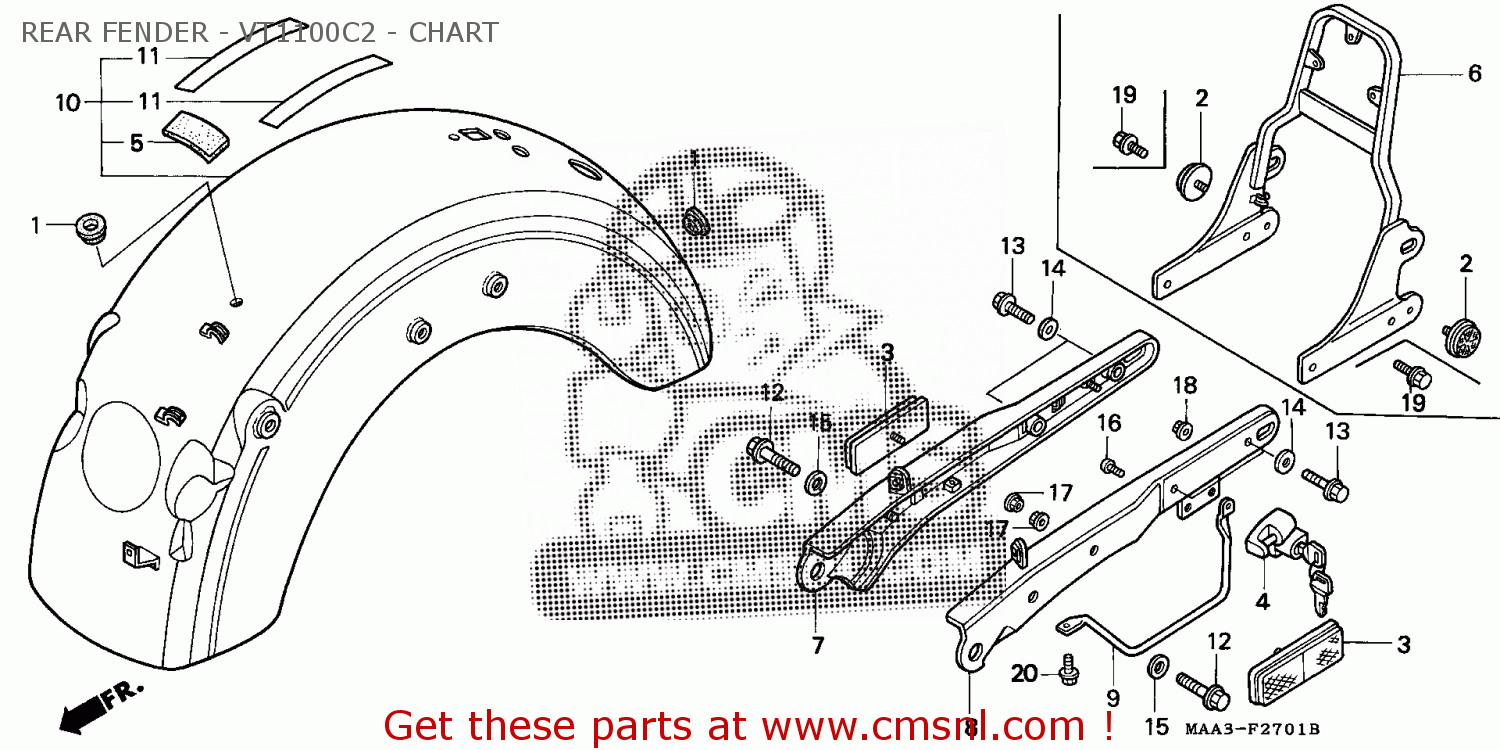

REAR FENDER (VT1100C2)

VT1100C2 SHADOW 1995 (S) EUROPEAN DIRECT SALES

Rear fender (vt1100c2) Schemat VT1100C2 SHADOW 1995 (S) EUROPEAN DIRECT SALES

REAR FENDER (VT1100C2) VT1100C2 SHADOW 1995 (S) EUROPEAN DIRECT SALES

ceny są w EUR

Ref

Część #

opis

Ilość

1

32983447000
Ref: 1

GROMMET,WIRE HORN

€ 3.50

4

50710086007
Ref: 4

HOLDER,HELMET

€ 33.50

5

64233MR7300
Ref: 5

PROTECTOR,HOSE

€ 4.50

7

77330MAH610
Ref: 7

RAIL,R GRAB

€ 114.50

8

77340MAH610
Ref: 8

RAIL,L GRAB

€ 110.50

9

77341MM8000
Ref: 9

WIRE,L.GRAB RAIL

€ 21.00

10

80110MAH610ZB
Ref: 10

SET ILLUST*TYPE5*

€ 487.50

10

80110MAH610ZD
Ref: 10

SET ILLUST*TYPE8*

€ 468.00

11

80115MAH300
Ref: 11

PROTECTOR,REAR FE

€ 5.50

12

90124KR3000
Ref: 12

BOLT,SPECIAL FLAN

€ 5.50

13

90183438000
Ref: 13

BOLT,FLANGE,8X26

€ 7.00

14

90501MM8610
Ref: 14

WASHER,PLAIN,8MM

€ 2.50

15

90502MM8610
Ref: 15

WASHER,PLAIN,10MM

€ 2.50

16

93500060120H
Ref: 16

SCREW,PAN,6X12

€ 1.00

18

9405006080
Ref: 18

NUT,FLANGE,6MM

€ 1.00

20

960010601607
Ref: 20

BOLT,FLANGE,6X16

€ 1.50
