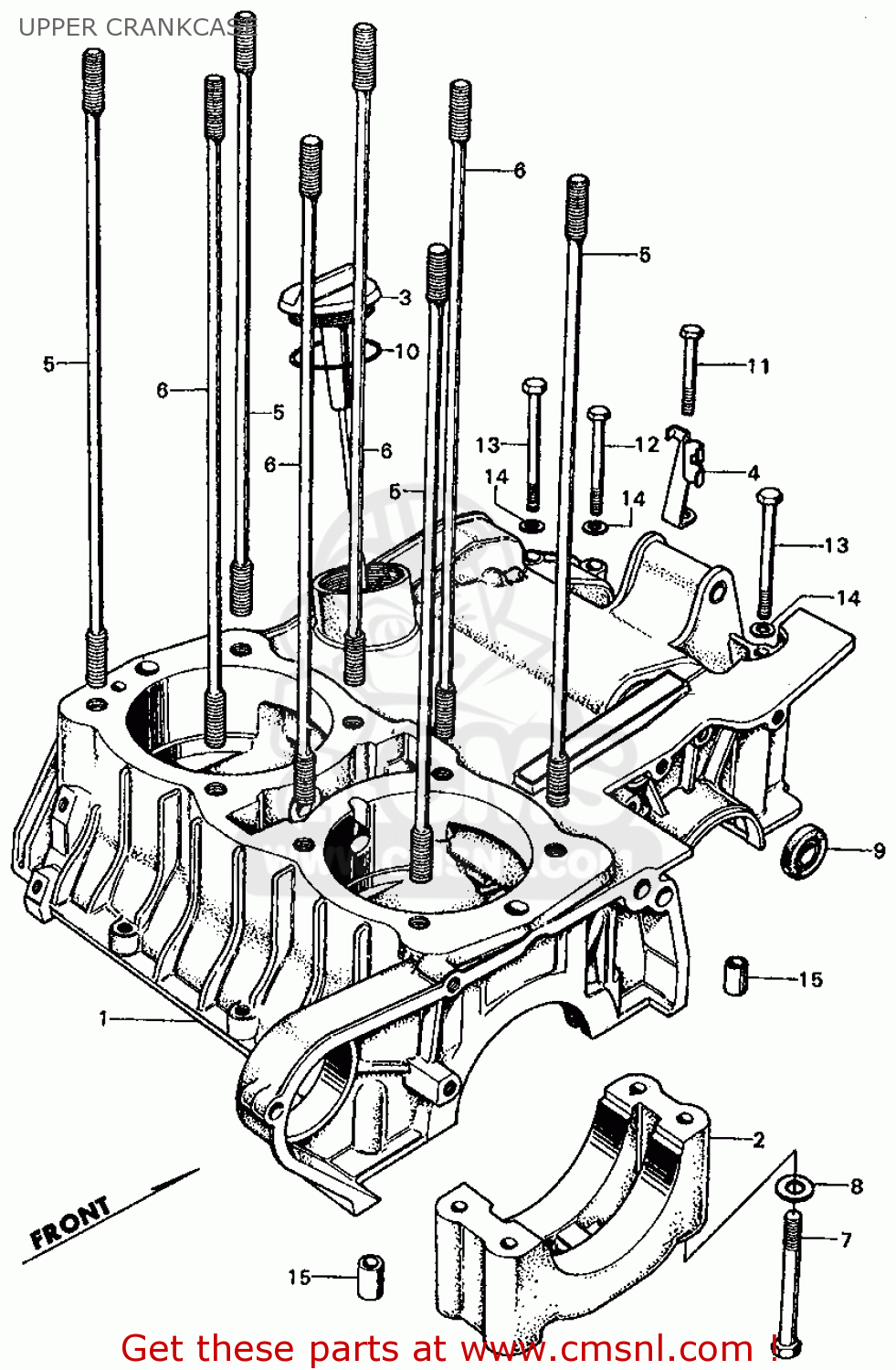

UPPER CRANKCASE

Ref

Część #

opis

Ilość

1

11100319000
Ref: 1
A

CASE,UPPER CRANK

€ 761.50

2

13401292020
Ref: 2
A

BEARINGCAP,CENTER

€ 42.50

3

15650292010
Ref: 3
A

GAUGE,OIL LEVEL

€ 31.00

4

32921283010
Ref: 4
A

CLAMPER, DYNAMO CORD

€ 4.00

5

90031292000
Ref: 5
A

BOLT,CYLINDERSTUD

€ 7.00

6

90032292000
Ref: 6
A

BOLT,CYLINDERSTUD

€ 7.00

7

90083292000
Ref: 7
A

BOLT,HEX 8X71

€ 4.50

8

90402822000
Ref: 8
A

WASHER,HEAD,8MM

€ 2.00

9

91201283005
Ref: 9
A

OIL SEAL,12X25X45

€ 6.00

9

91201292003
Ref: 9
A

OIL SEAL 12X25X45

€ 6.00

9

91202426003
Ref: 9
A

OILSEAL,12X25X4.5

€ 6.00

10

91303283000
Ref: 10
A

O RING, 37.2X2.3

€ 4.00

10

91305KT7003
Ref: 10
A

O-RING,37X2.4

€ 4.00

11

9200006040
Ref: 11
A

BOLT,HEX 6X40

€ 1.00

11

92000060400A
Ref: 11
A

BOLT,HEX., 6X40

€ 1.00

11

92101060400A
Ref: 11
A

BOLT,HEX.,6X40

€ 1.00

12

9200006063
Ref: 12
A

BOLT,HEX 6X63

€ 1.50

12

92000060630A
Ref: 12
A

BOLT,HEX., 6X63

€ 1.50

12

9200006065
Ref: 12
A

BOLT HEX 6X65

€ 1.50

12

92101060650A
Ref: 12
A

BOLT,HEX,6X65

€ 1.50

13

9200006080
Ref: 13
A

BOLT,HEX 6X80

€ 2.00

13

92101060800A
Ref: 13
A

BOLT,HEX,6X80

€ 2.00

14

9410106000
Ref: 14
A

WASHER,PLAIN, 6MM

€ 0.50

14

9410106080
Ref: 14
A

WASHER PLAIN 6MM

€ 1.00

15

9430110140
Ref: 15
A

DOWEL PIN

€ 3.00
