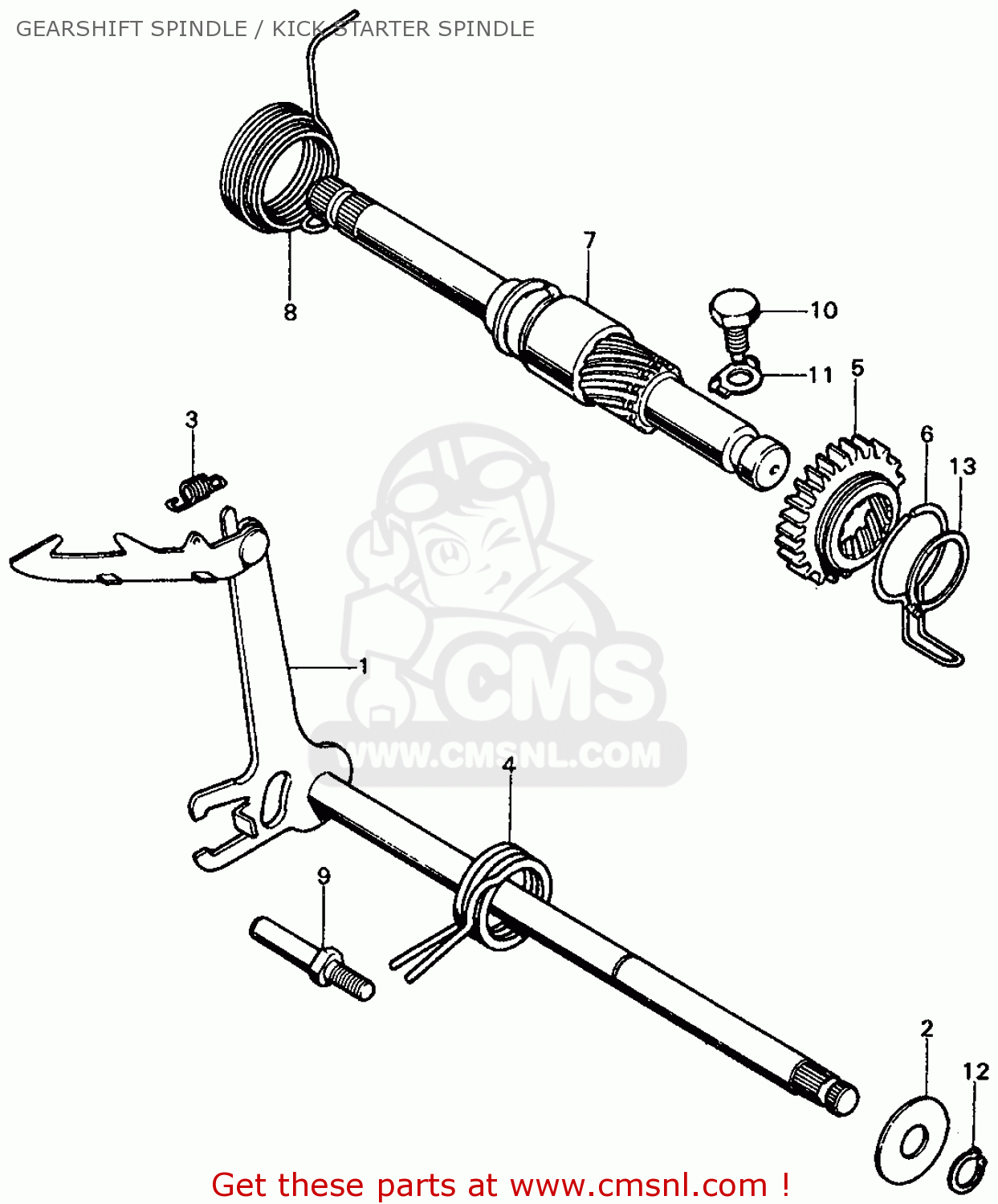

GEARSHIFT SPINDLE / KICK STARTER SPINDLE

CL450 SCRAMBLER 1972 K5 USA

Gearshift spindle / kick starter spindle Schemat CL450 SCRAMBLER 1972 K5 USA

ceny są w EUR

Ref

Część #

opis

Ilość

24610292030
Ref: 1
A

SPINDLE,GEARSHIF

€ 124.50

24621200000
Ref: 2
A

STOPPER SPINDLE

€ 1.00

24641292000
Ref: 3
A

SPRING,SHIFT ARM

€ 1.00

24651319000
Ref: 4
A

SPRING,GEARRETURN

€ 21.00

28212292040
Ref: 5
A

PINION,KICK

€ 68.50

28239292000
Ref: 6
A

SPRING,FRICTION

€ 4.00

28250292010
Ref: 7
A

SPINDLE,COMP,KICK

€ 127.50

28261292000
Ref: 8
A

SPRING,STARTER

€ 7.00

90015286000
Ref: 9
A

PIN,RETURN SPRING

€ 6.00

90081283000
Ref: 10
A

BOLT 8 MM

€ 5.00

90432283010
Ref: 11
A

WASHER 8 MM

€ 4.50

9451012000
Ref: 12
A

CIRCLIP,EX,12

€ 1.00

9451025000
Ref: 13
A

CIRCLIP, 25M/M

€ 1.50
