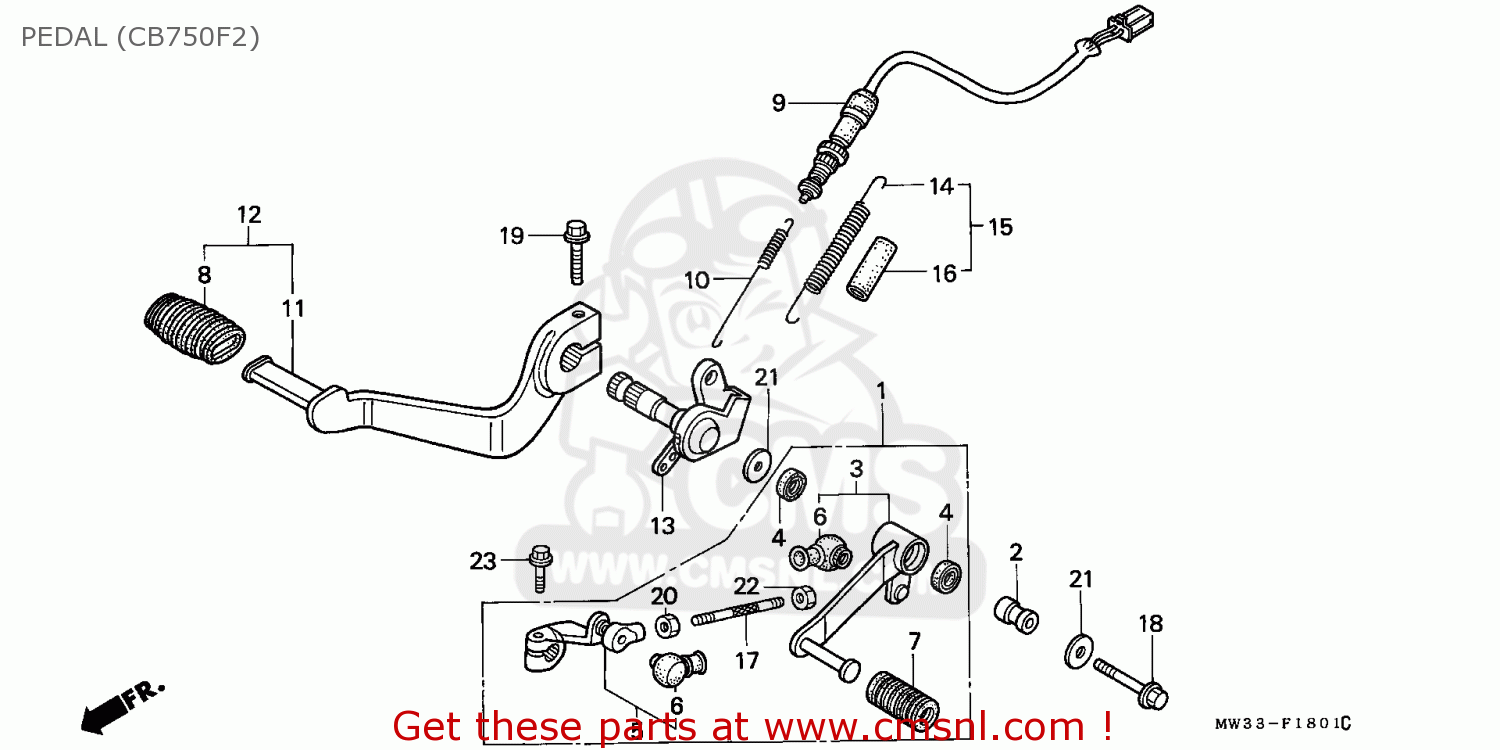

PEDAL (CB750F2)

CB750F2 SEVEN FIFTY 1995 (S) EUROPEAN DIRECT SALES / KPH

Pedal (cb750f2) Schemat CB750F2 SEVEN FIFTY 1995 (S) EUROPEAN DIRECT SALES / KPH

ceny są w EUR

Ref

Część #

opis

Ilość

24705MK3000
Ref: 2

COLLAR,GEAR CHNGE

€ 6.00

24705MW3670
Ref: 3

PEDAL COMP.,CHANG

€ 90.00

24706MK3770
Ref: 4

RUBBER,DUST SEAL

€ 4.00

24721MW3670
Ref: 5

ARM COMP.,CHANGE

€ 49.00

24724422000
Ref: 6

COVER DUST

€ 7.50

24781KR3770
Ref: 7

RUBBER,CHANGE PED

€ 4.00

24781371000
Ref: 8

RUBBER,CHANGE

€ 5.00

35350MT4000
Ref: 9

SWITCH ASSY.,RR.S

€ 21.50

35357MW3600
Ref: 10

SPRING,STOP SW

€ 3.50

46501MW3600
Ref: 12

PEDAL ASSY,REAR B

€ 81.50

46505MW3600
Ref: 13

SPINDLE COMP.,RR.

€ 83.00

46513KY7000
Ref: 15

SPRING SET,BRK PE

€ 7.00

46515KY7000
Ref: 16

TUBE,BRK PEDAL SP

€ 4.00

90065MN0000
Ref: 17

BOLT,TIE-ROD

€ 14.00

90109MR7000
Ref: 18

BOLT,FLANGE,8X45

€ 5.00

90122GR2010
Ref: 19

BOLT,FLANGE 8X35

€ 4.00

90201700000
Ref: 20

NUT,GOVERNOR ARM

€ 1.50

90514921000
Ref: 21

WASHER,8MM

€ 3.00

94002060200S
Ref: 22

NUT.,HEX.,6MM

€ 1.00

960010602000
Ref: 23

BOLT FLANG 6X20

€ 1.50

PEDAL (CB750F2)

wszystkie zespoły
