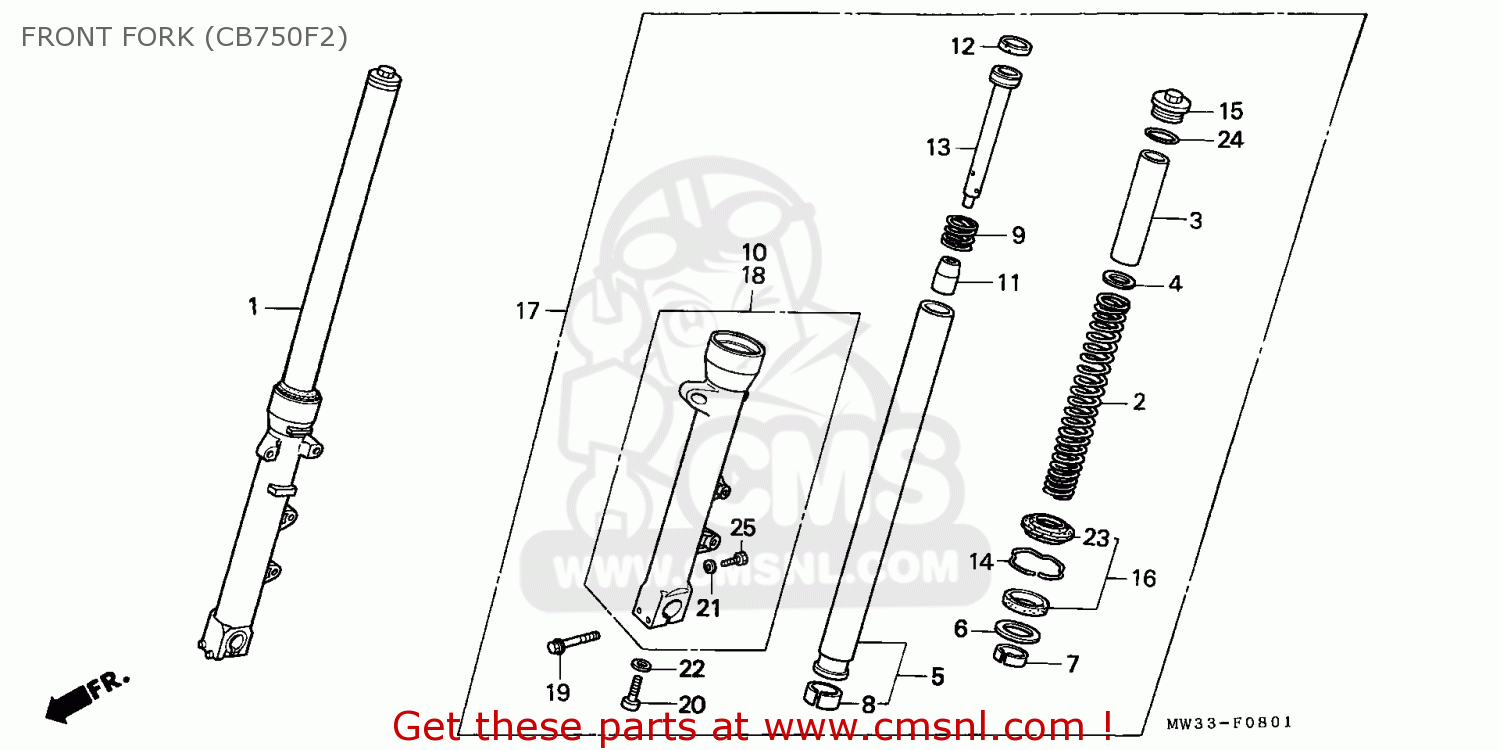

FRONT FORK (CB750F2)

Ref

Część #

opis

Ilość

1

51400MW3971
Ref: 1

FORK ASSY,R FR

€ 633.50

2

51401MW3601
Ref: 2

SPRING,FR FORK

€ 67.50

3

51402MN8911
Ref: 3

SPRING,FR.FORK

€ 22.50

4

51403KF0003
Ref: 4

SEAT,SPRING

€ 4.00

5

51410MW3601
Ref: 5

PIPE COMP,FR FORK

€ 230.50

6

51412MB4003
Ref: 6

RING,BACK UP

€ 7.00

7

51414MN5003
Ref: 7

BUSH,GUIDE

€ 7.50

8

51415MM8003
Ref: 8

BUSH,SLIDER (SHOW

€ 15.00

9

51416KF0003
Ref: 9

SPG,FR.REBOUND

€ 5.00

10

51420MY9003
Ref: 10

CASE COMP,R BOT

€ 319.50

11

51432KV3701
Ref: 11

PIECE,OIL LOCK (S

€ 15.00

12

51437MM5003
Ref: 12

RING,PISTON (SHOW

€ 7.00

13

51440MW3601
Ref: 13

PIPE,SEAT

€ 55.00

14

51447KA4711
Ref: 14

RING,OIL STOP.

€ 4.50

15

51454MM9671
Ref: 15

BOLT,FR FORK

€ 47.00

16

51490MN8305
Ref: 16

SEAL SET,FR.FORK

€ 35.50

17

51500MW3971
Ref: 17

FORK ASSY,L FR

€ 633.50

18

51520MY9003
Ref: 18

CASE COMP,L BOT

€ 319.50

19

90109MR7000
Ref: 19

BOLT,FLANGE,8X45

€ 5.00

20

90116KV3701
Ref: 20

BOLT,SOCKET 8MM

€ 3.00

21

90543273000
Ref: 21

PACKING, DRAIN

€ 2.00

22

90544283000
Ref: 22

WASHER,SPL.,8MM

€ 2.50

23

91254MM8003
Ref: 23

SEAL,DUST

€ 20.00

24

91356KF0003
Ref: 24

O-RING

€ 4.50

25

92101060080A
Ref: 25

BOLT,HEX.,6X8

€ 1.00
