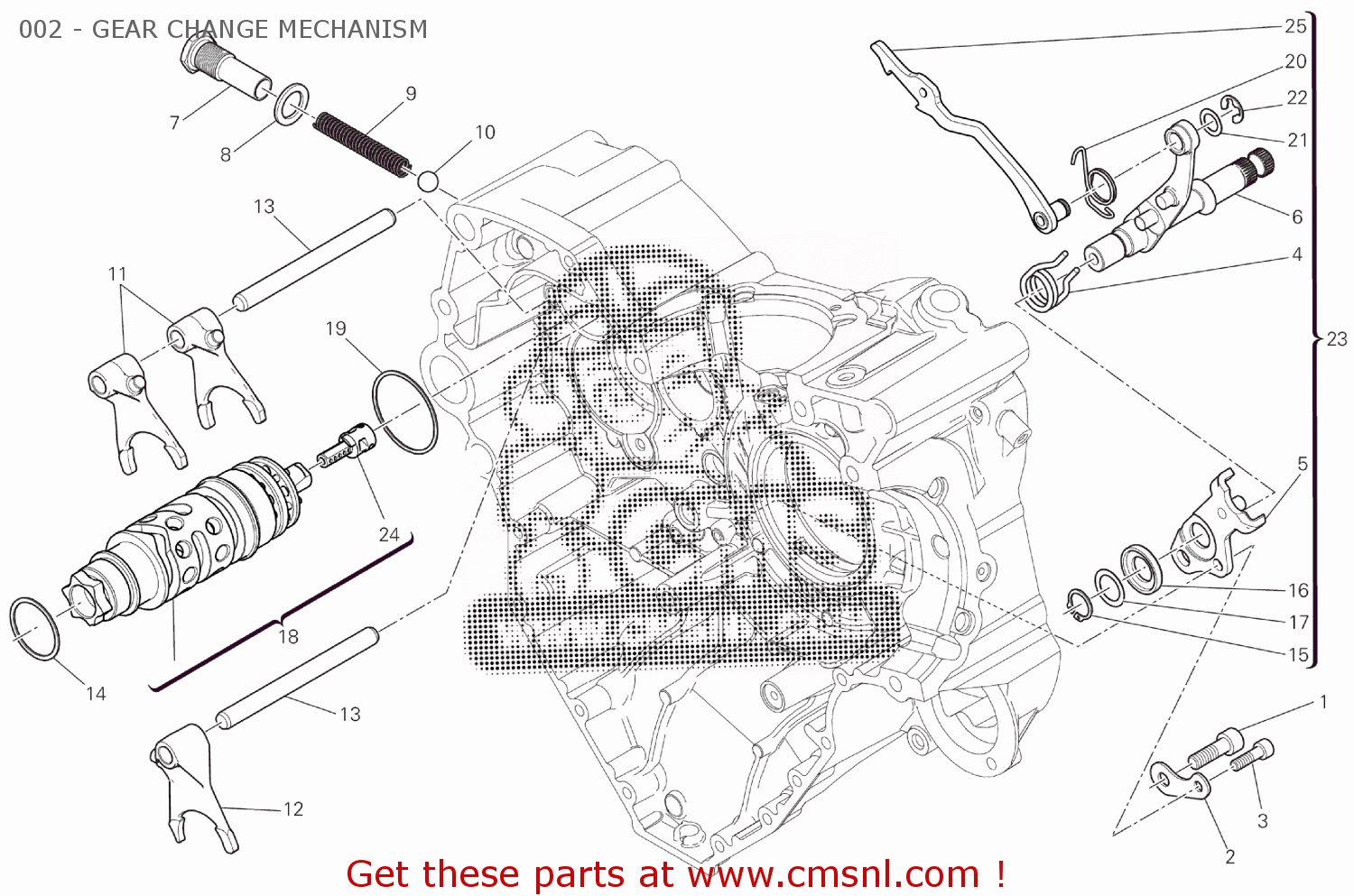

002 - GEAR CHANGE MECHANISM - XDIAVEL 2017 (XDIAVEL) D240-00017

Ref

Część #

opis

Ilość

1

77151250ZF
Ref: 1

SCREW

€ 1.00

2

71319151A
Ref: 2

SPACER

€ 3.00

3

77150670ZF
Ref: 3

SCREW

€ 1.00

4

79915061A
Ref: 4

SPRING, SHIFT RETURN

€ 4.50

5

82610251A
Ref: 5

STOPPER PLATE

€ 21.00

6

82114731A
Ref: 6

GEAR SELECTOR SHAFT

€ 111.00

7

77912033A
Ref: 7

SCREW M16X1.5

€ 7.00

8

027291090
Ref: 8

GASKET 16.2X24X2

€ 1.00

9

066013143
Ref: 9

GEAR SELECTOR SPRING

€ 2.00

10

768351134
Ref: 10

BALL 11MM

€ 1.00

11

180Z0031A
Ref: 11

GEAR SELECTOR FORK,1ST/4TH-2ND/3RD

€ 67.50

12

180Z0041A
Ref: 12

FORK-SHIFT, 5TH&6TH

€ 67.50

13

82113881A
Ref: 13

FORK PIN

€ 8.50

14

85210051A
Ref: 14

THRUST WASHER 1 MM

€ 2.00

15

735001542
Ref: 15

CIRCLIP 15 DIN 471

€ 1.00

16

88110121A
Ref: 16

CENTERING RING

€ 19.00

17

040029126
Ref: 17

THRUST WASHER 15.5X22X0.5

€ 2.00

18

18220611B
Ref: 18

COMPLETE GEARBOX DRUM

€ 231.50

19

85210941A
Ref: 19

THRUST WASHER 45.2X49X0.9

€ 3.00

20

79912961A
Ref: 20

RETURN SPRING

€ 3.00

21

040009050
Ref: 21

THRUST WASHER 10.5X16X0.5

€ 1.00

22

88450341B
Ref: 22

SPRING RING

€ 1.00

23

82120131A
Ref: 23

CONTROL FORK

€ 148.00

24

55214911A
Ref: 24

MAGNETE

€ 66.00

25

18020401A
Ref: 25

CONTROL FORK

€ 19.50

002 - GEAR CHANGE MECHANISM
