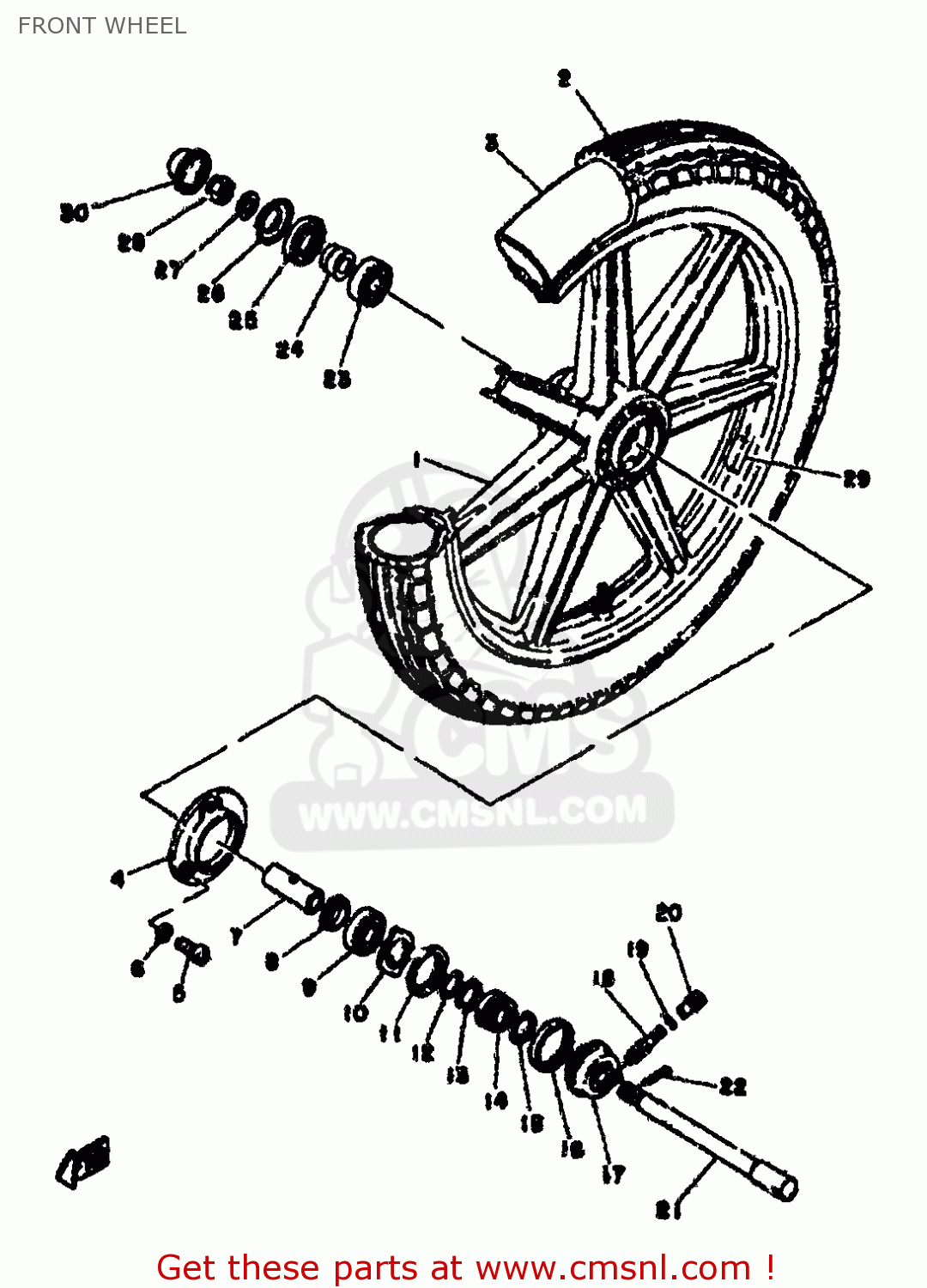

FRONT WHEEL

ref

onderdeelnr

omschrijving

hoeveelheid

1

1J32516820
ref: 1

CAST WHEEL, FRONT (1.85-19) ~102259 CANADA

€ 0.00

2

9413219173
ref: 2

TIRE (5A8)

€ 214.50

3

9423219029
ref: 3

TUBE (1V2)

€ 27.50

4

3712584700
ref: 4

COVER, HOUSING

€ 14.50

5

9250108012
ref: 5

SCREW PAN HEAD

€ 1.50

6

9290108100
ref: 6

WASHER, SPRING

€ 1.00

7

9056017125
ref: 7

SPACER 351251170000

€ 7.50

8

1A12511500
ref: 8

FLANGE, SPACER

€ 3.50

9

9330630309
ref: 9

BRG,R-B 6303Z 47MM 116G KY

€ 33.50

10

3412514900
ref: 10

CLUTCH, METER (371,447)

€ 4.00

11

3412584600
ref: 11

RETAINER, CLUTCH (371,447)

€ 3.00

12

3412513700
ref: 12

RING, STOP (371,447)

€ 1.50

13

9020125286
ref: 13

WASHER PLATE 341251470000

€ 2.00

14

3412513501
ref: 14

GEAR, DRIVE (371,447)

€ 30.50

15

9020125490
ref: 15

WASHER PLATE 152172260000

€ 4.00

17

3412519101
ref: 17

HOUSING, GEAR UNIT (371,447)

€ 109.50

18

3062513800
ref: 18

GEAR,METER

€ 19.50

19

1021841600
ref: 19

SHIM, ROD (B)

€ 3.50

20

3062513600
ref: 20

BUSHING

€ 6.50

21

3512518100
ref: 21

SHAFT,WHEEL

€ 41.00

22

9140130030
ref: 22

PIN,COTTER

€ 2.00

23

9330630303
ref: 23

BRG,R-B 6303Z 47MM 120G NT

€ 33.50

24

9038717433
ref: 24

COLLAR 341251830000

€ 7.00

25

9310228022
ref: 25

OIL SEAL (28X47X7-102)

€ 8.00

26

3412511800
ref: 26

COVER, DUST (447)

€ 3.50

27

9290114200
ref: 27

WASHER, PLAIN

€ 3.00

27

9020914136
ref: 27

WASHER (521)

€ 7.00

28

9017114006
ref: 28

NUT, CASTLE (214-25182-01)

€ 9.00

29

1A12539800
ref: 29
UN

BALANCER, WHEEL (20G)

€ 10.50

30

5212512700
ref: 30

521-25188-00

€ 4.50

alle samenstellingen
