23 FRONT FORK 2

WR125X 2011 22B6 EUROPE 1K22B-300EB

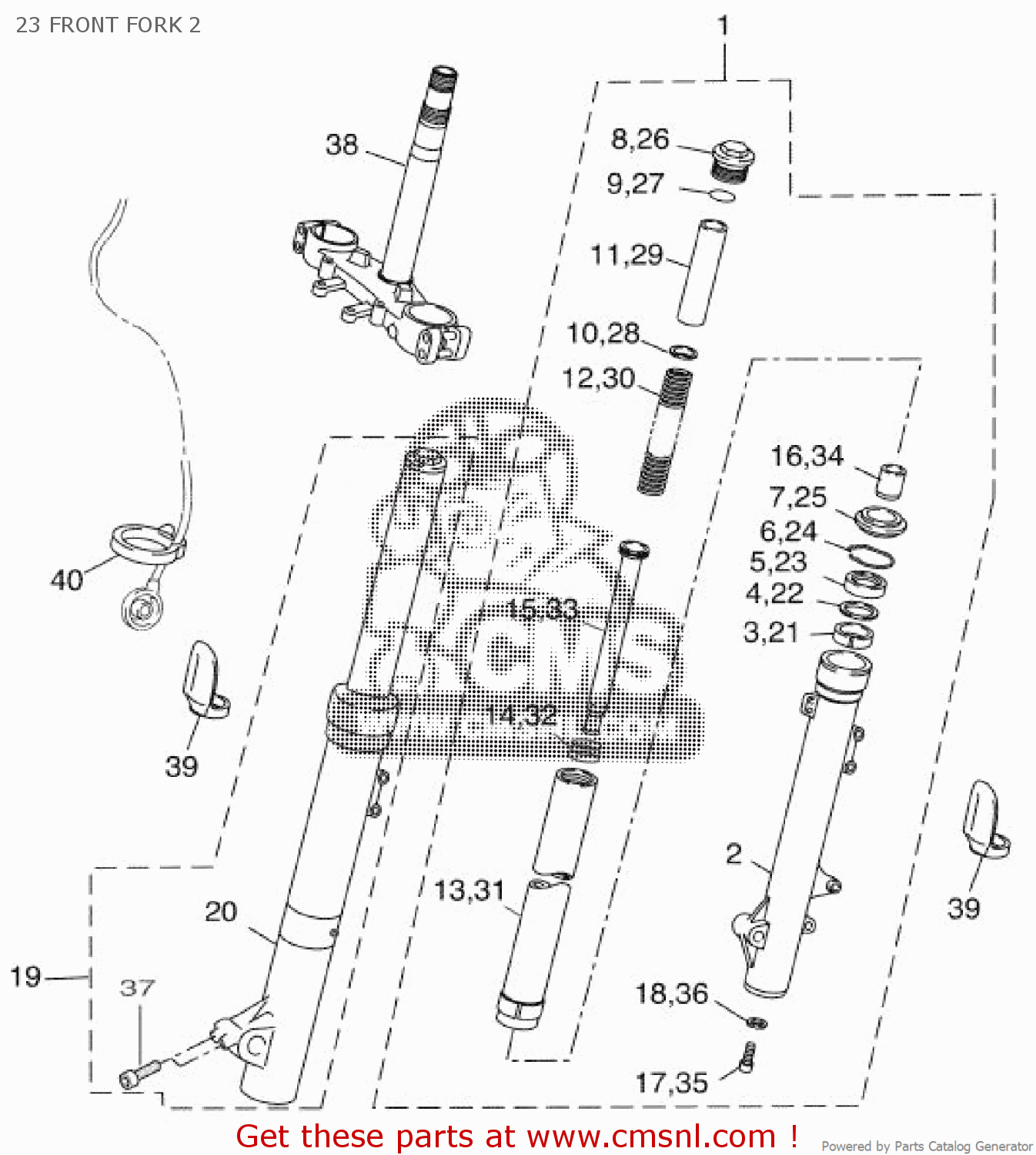

23 front fork 2 technisch schema WR125X 2011 22B6 EUROPE 1K22B-300EB

23 FRONT FORK 2 WR125X 2011 22B6 EUROPE 1K22B-300EB
23 FRONT FORK 2 WR125X 2011 22B6 EUROPE 1K22B-300EB
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
22B2310220
ref: 1
FRONT FORK ASSY (L.H)
€ 415.50
2
22B2312610
ref: 2
(KAYABA MODEL)
TUBE, OUTER (LEFT)
22B2312610
€ 201.50
3
4FM2312540
ref: 3
METAL, SLIDE 1
4FM2312540
€ 21.00
4
36Y2314610
ref: 4
WASHER, OIL SEAL
36Y2314610
€ 8.50
5
4EB2314501
ref: 5
OIL SEAL
4EB2314501
€ 14.00
6
26H2315600
ref: 6
CLIP, OIL SEAL
26H2315600
€ 3.50
7
4EB2314400
ref: 7
SEAL, DUST
4EB2314400
€ 19.00
8
1D02311100
ref: 8
BOLT, CAP
1D02311100
€ 53.50
9
43F2318810
ref: 9
O-RING
43F2318810
€ 3.50
10
4DW2314940
ref: 10
WASHER, SPRING UPPER
4DW2314940
€ 3.50
11
22B2311820
ref: 11
SPACER
€ 19.50
12
22B2314120
ref: 12
SPRING, FRONT FORK
22B2314120
€ 42.00
13
22B2311020
ref: 13
INNER TUBE COMP.1
22B2311020
€ 194.50
14
5BN2317100
ref: 14
PISTON, FRONT FORK
5BN2317100
€ 16.50
15
22B2317020
ref: 15
CYLINDER COMP., FRONT FORK
€ 194.00
16
4YR2317300
ref: 16
SPINDLE, TAPER
4YR2317300
€ 29.50
17
2782318150
ref: 17
BOLT
2782318150
€ 4.50
18
50923158L0
ref: 18
GASKET (NAS)
50923158L0
€ 2.00
19
22B2310320
ref: 19
FRONT FORK ASSY (R.H)
€ 415.50
20
22B2313610
ref: 20
(KAYABA MODEL)
TUBE, OUTER (RIGHT)
22B2313610
€ 201.50
21
4FM2312540
ref: 21
METAL, SLIDE 1
4FM2312540
€ 21.00
22
36Y2314610
ref: 22
WASHER, OIL SEAL
36Y2314610
€ 8.50
23
4EB2314501
ref: 23
OIL SEAL
4EB2314501
€ 14.00
24
26H2315600
ref: 24
CLIP, OIL SEAL
26H2315600
€ 3.50
25
4EB2314400
ref: 25
SEAL, DUST
4EB2314400
€ 19.00
26
1D02311100
ref: 26
BOLT, CAP
1D02311100
€ 53.50
27
43F2318810
ref: 27
O-RING
43F2318810
€ 3.50
28
4DW2314940
ref: 28
WASHER, SPRING UPPER
4DW2314940
€ 3.50
29
22B2311820
ref: 29
SPACER
€ 19.50
30
22B2314120
ref: 30
SPRING, FRONT FORK
22B2314120
€ 42.00
31
22B2311020
ref: 31
INNER TUBE COMP.1
22B2311020
€ 194.50
32
5BN2317100
ref: 32
PISTON, FRONT FORK
5BN2317100
€ 16.50
33
22B2317020
ref: 33
CYLINDER COMP., FRONT FORK
€ 194.00
34
4YR2317300
ref: 34
SPINDLE, TAPER
4YR2317300
€ 29.50
35
2782318150
ref: 35
BOLT
2782318150
€ 4.50
36
50923158L0
ref: 36
GASKET (NAS)
50923158L0
€ 2.00
37
9131208025
ref: 37
BOLT (401)
€ 1.00
38
22B2334000
ref: 38
(KAYABA MODEL)
UNDER BRACKET COMP.
€ 292.00
39
4PU2331G00
ref: 39
COVER
4PU2331G00
€ 13.00
40
4PX2331800
ref: 40
HOLDER, CABLE 1
4PX2331800
€ 27.50
