REAR SHOCK ABSORBER (MODEL K3)

RM125 2006 (K6) USA (E03)

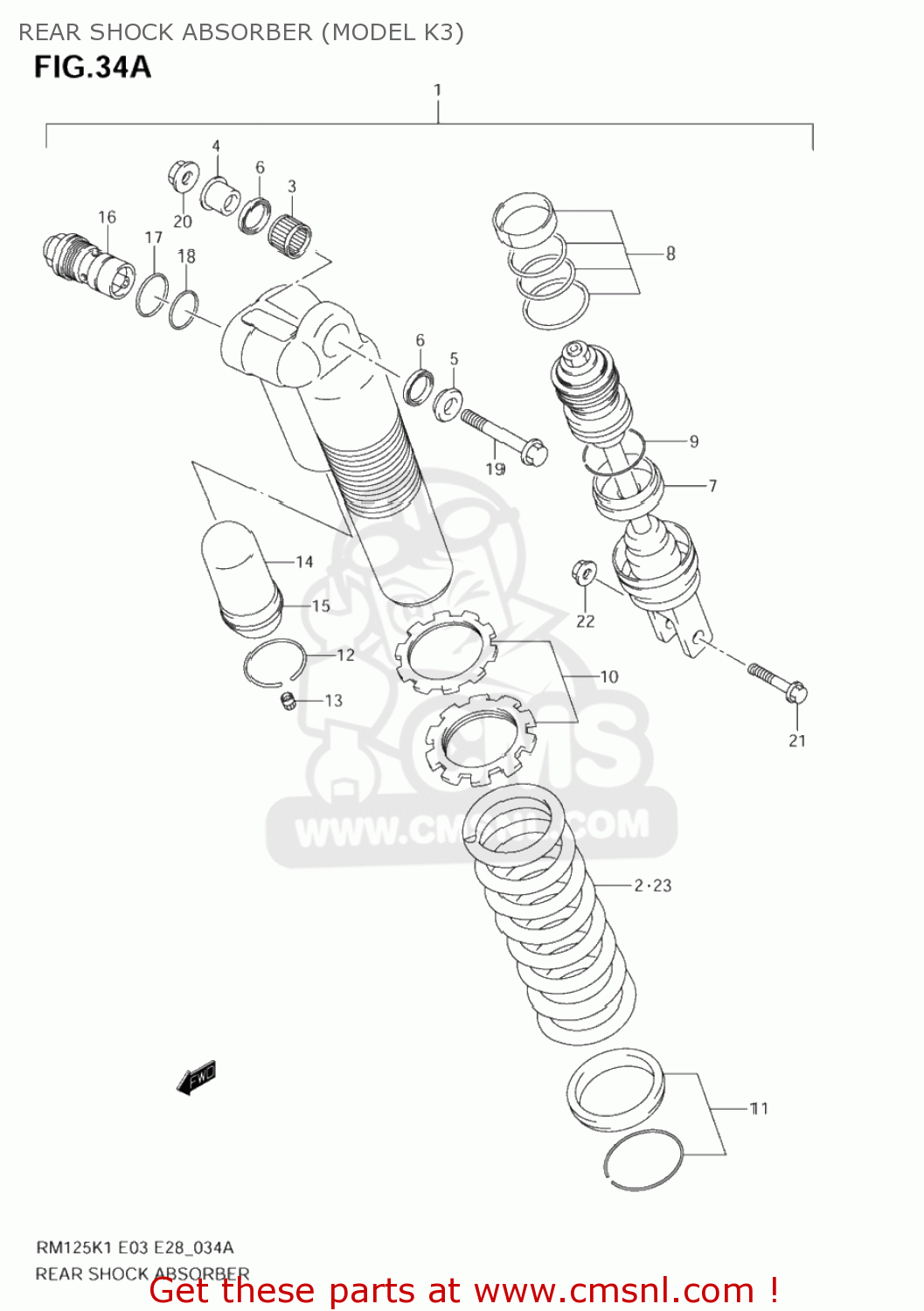

Rear shock absorber (model k3) technisch schema RM125 2006 (K6) USA (E03)

REAR SHOCK ABSORBER (MODEL K3) RM125 2006 (K6) USA (E03)

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

1-1

6210036F8037W
ref: 1-1

ABSORBER ASSY,RR SHOCK

€ 0.00

1-1

6210036F8037W
ref: 1-1

ABSORBER ASSY,RR SHOCK

€ 0.00

1-2

6210036F7037W
ref: 1-2

ABSORBER ASSY,RR SHOCK

€ 1,173.00

1-2

6210036F7037W
ref: 1-2

ABSORBER ASSY,RR SHOCK

€ 1,173.00

2

6221136F30
ref: 2

SPRING,RR(K=4.9)

€ 275.00

3

0926316033
ref: 3

BEARING(16X22X12)

€ 15.50

4

6268436F00
ref: 4

SPACER,UPPER BRG,R

€ 11.50

5

6268536F00
ref: 5

SPACER,UPPER BRG,L

€ 8.00

6

0928416005
ref: 6

SEAL,OIL(16X22X2.5)

€ 4.50

7

6212036F70
ref: 7

ROD,PISTON

€ 640.00

8

6215036EB0
ref: 8

O RING SET

€ 42.00

9

6227936E80
ref: 9

RING,STOPPER

€ 5.00

10

6219036F00
ref: 10

ADJUSTER SET

€ 69.00

11

6222036F00
ref: 11

SPRING SEAT SET

€ 39.00

12

6227836E00
ref: 12

RING,STOPPER

€ 5.50

13

5129420400
ref: 13

CAP

€ 3.50

14

6227336F00
ref: 14

BLADDER

€ 44.00

15

6227536F00
ref: 15

CAP, CHAMBER

€ 0.00

16

6213036F60
ref: 16

BOLT,PLUG

€ 124.50

17

6213128E00
ref: 17

O RING

€ 3.50

18

5117443D00
ref: 18

O RING,CTR BOLT UPR

€ 3.00

19

0910310329
ref: 19

BOLT(10X60)

€ 3.50

20

0915910058
ref: 20
09159-10115

NUT

€ 3.00

21

0910310325
ref: 21

BOLT(10X44.5)

€ 4.00

22

0915910067
ref: 22

NUT

€ 4.00

23-1

6221136EB0
ref: 23-1

SPRING,RR(K=4.6)

€ 156.00

23-2

6221136F00
ref: 23-2

SPRING(HARD,K:5.0)

€ 261.00

23-3

6221136E80
ref: 23-3

SPRING,RR(K=5.2)

€ 156.00

23-4

6221136F10
ref: 23-4

SPRING,RR(K=4.8)

€ 275.00
