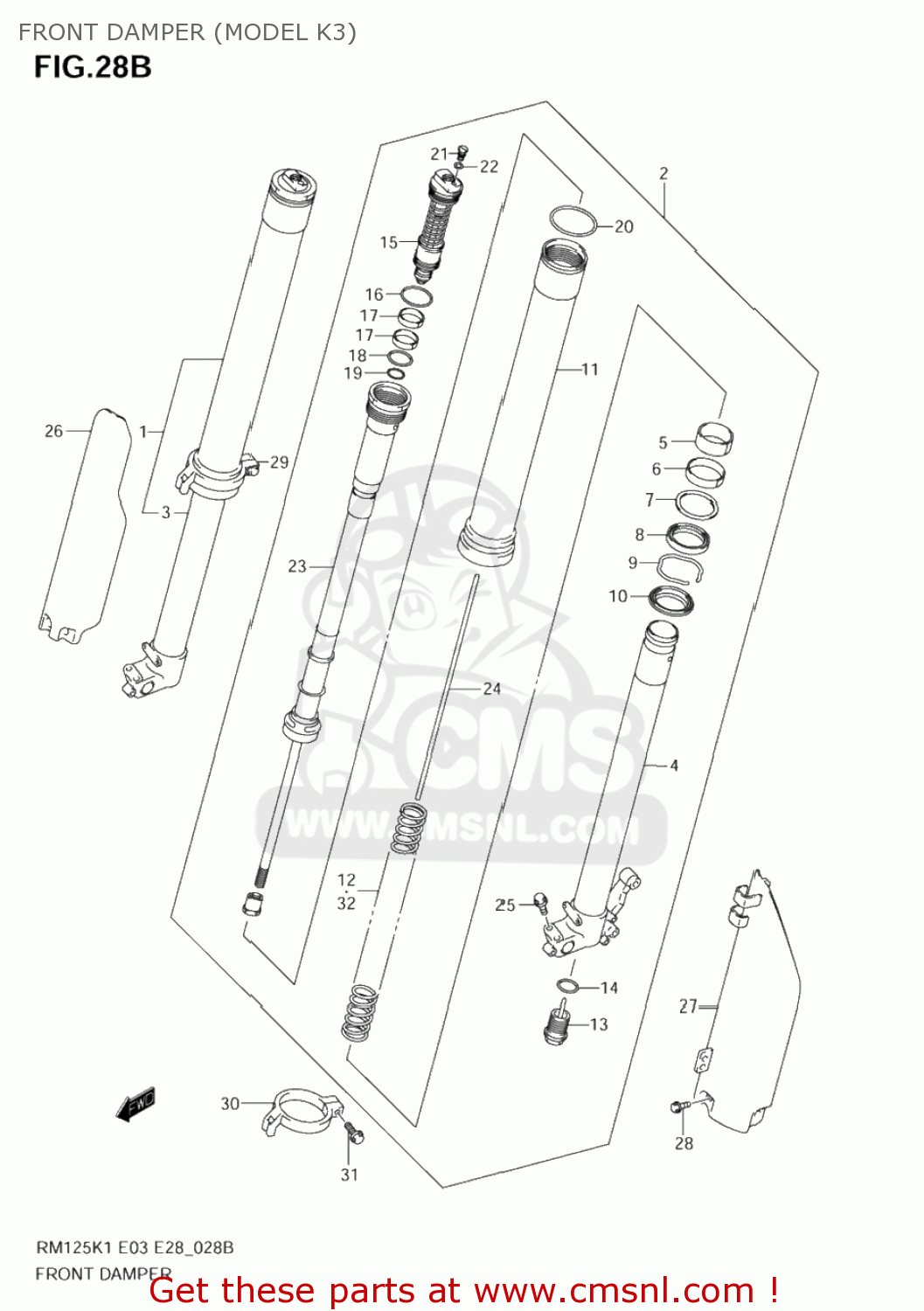

FRONT DAMPER (MODEL K3)

RM125 2006 (K6) USA (E03)

Front damper (model k3) technisch schema RM125 2006 (K6) USA (E03)

FRONT DAMPER (MODEL K3) RM125 2006 (K6) USA (E03)

prijzen zijn in EUR

ref

onderdeelnr

omschrijving

hoeveelheid

1

5110336F50
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,294.00

2

5110436F50
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,500.00

3

5111036F40
ref: 3

TUBE,INNER,R

€ 416.00

4

5112036F40
ref: 4

TUBE,INNER,L

€ 416.00

5

5112136F00
ref: 5

BUSH,SLIDE

€ 13.50

6

5116736F20
ref: 6

BUSH,GUIDE

€ 17.00

7

5115836F00
ref: 7

SPACER,SEAL

€ 4.50

8

5115336F00
ref: 8

SEAL,OIL

€ 20.00

9

5115636F00
ref: 9
51156-27C40

RING,OIL SEAL

€ 3.50

10

5117336F00
ref: 10

SEAL,DUST

€ 18.00

11

5113036F20
ref: 11

TUBE,OUTER

€ 529.50

12

5117136F10
ref: 12

SPRING,FR(K=0.42)

€ 63.50

13

5117036F40
ref: 13

BOLT,CTR

€ 112.00

14

5117736E20
ref: 14

O RING

€ 2.50

15

5135136F50
ref: 15

BOLT,FORK

€ 214.50

16

5111736E00
ref: 16

O RING

€ 3.50

17

5112328E30
ref: 17

BUSH,FORK BOLT SLIDE

€ 9.00

18

5117436E40
ref: 18

O RING

€ 2.50

19

5117536F00
ref: 19
51175-36E20

O RING

€ 2.50

20

5111736E60
ref: 20

O RING

€ 4.00

21

5135736F20
ref: 21

BOLT,PLUG

€ 7.00

22

5135828E30
ref: 22

O RING,PLUG

€ 2.50

23

5119036F40
ref: 23

ROD,DAMPER

€ 601.00

24

5119136F40
ref: 24

ROD,PUSH

€ 14.00

25

5132836F20
ref: 25

BOLT

€ 6.50

26

5150136E60
ref: 26

PROTECTOR FORK,R

€ 89.50

27

5151136E60
ref: 27

PROTECTOR,FORK,L

€ 89.50

28

0910306256
ref: 28

BOLT(6X10)

€ 2.00

29

5122036E61
ref: 29

GUIDE,PROTECTOR,R

€ 27.50

30

5121036E61
ref: 30

GUIDE,PROTECTOR,L

€ 27.50

31

0154706207
ref: 31

BOLT

€ 1.50

32-1

5117136F30
ref: 32-1

SPRING,FR(K=0.44)

€ 162.50

32-2

5117136F00
ref: 32-2

SPRING,FR(K=0.40)

€ 61.50
