De online onderdelen catalogus

STARTING MOTOR

GS550ESE 1983 (D) USA (E03)

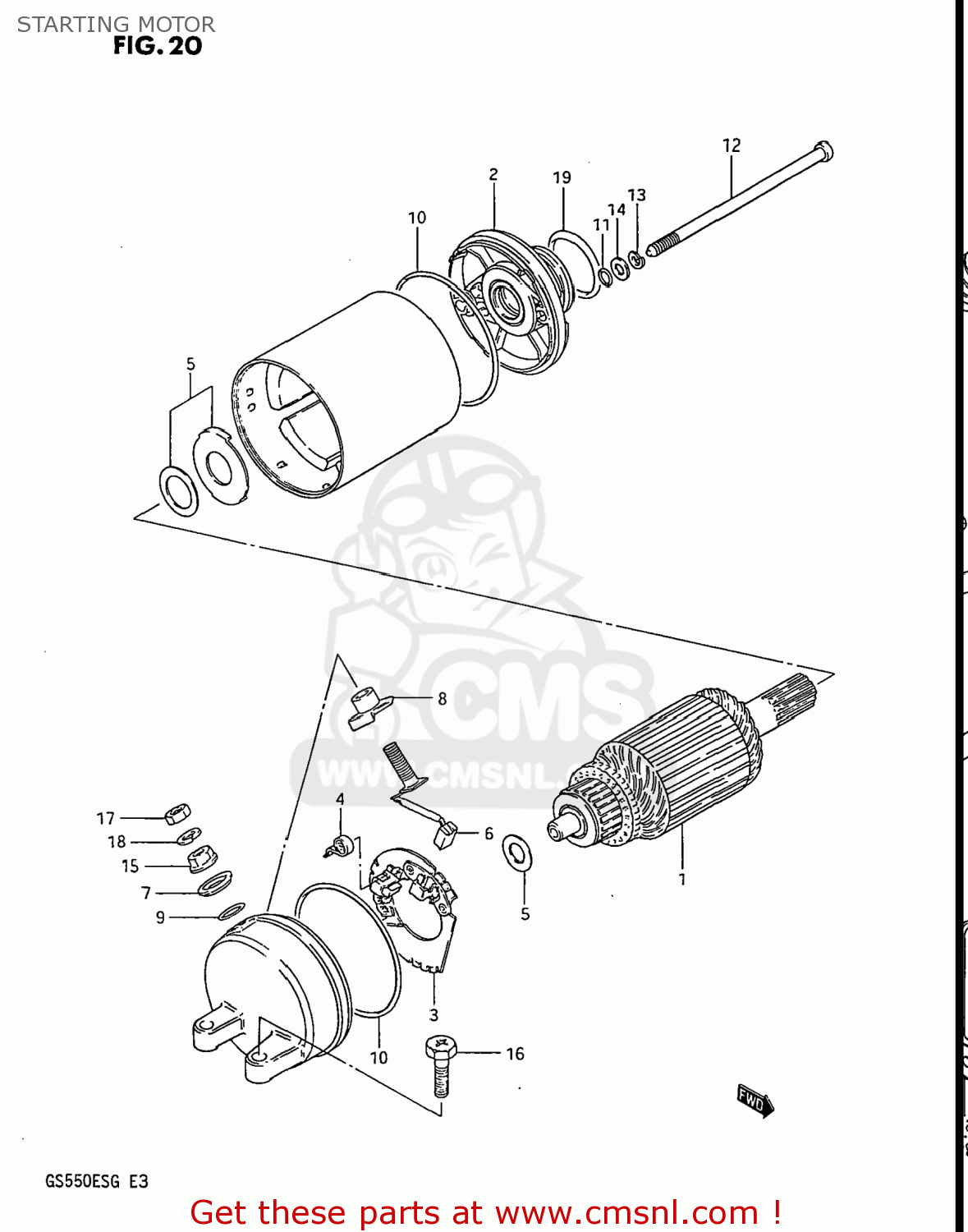

Starting motor technisch schema GS550ESE 1983 (D) USA (E03)

STARTING MOTOR GS550ESE 1983 (D) USA (E03)
STARTING MOTOR GS550ESE 1983 (D) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid

3110043401
ref:
31100-30B00-H17
MOTOR ASSEMBLY,STARTING
3110043401
€ 731.50
1
3131043400
ref: 1
31310-43401-H17
ARMATURE
€ 173.00
2
3115043400
ref: 2
BRACKET SET,STARTING MOTOR
€ 83.50
3
3113244110
ref: 3
31132-27A01
HOLDER,BRUSH
€ 44.00
4
3113565010
ref: 4
SPRING
3113565010
€ 3.00
5
3117043400
ref: 5
SHIM SET,STARTING MOTOR
3117043400
€ 3.50
6
3113038300
ref: 6
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 11.50
7
3117238300
ref: 7
BUSHING
3117238300
€ 4.00
8
3117138300
ref: 8
BUSH,B
3117138300
€ 5.50
9
3114338300
ref: 9
O RING
3114338300
€ 3.50
10
3126444110
ref: 10
O RING
3126444110
€ 7.50
11
3115638300
ref: 11
O RING
3115638300
€ 3.00
12
3128105300
ref: 12
31281-88C00
BOLT
€ 8.00
13
0832121057
ref: 13
08321-0105A
LOCK WASHER
0832121057
€ 2.00
14
3116138300
ref: 14
WASHER
3116138300
€ 2.50
15
0915906017
ref: 15
08319-31067
NUT
0915906017
€ 1.50
16
3121533400
ref: 16
BOLT
€ 2.00
17
0831011066
ref: 17
08310-0006A
NUT
€ 1.50
18
0832121066
ref: 18
08321-0106A
WASHER,LOCK
0832121066
€ 1.50
19
0928024003
ref: 19
O RING(D:3,ID:24.5)
0928024003
€ 1.50
