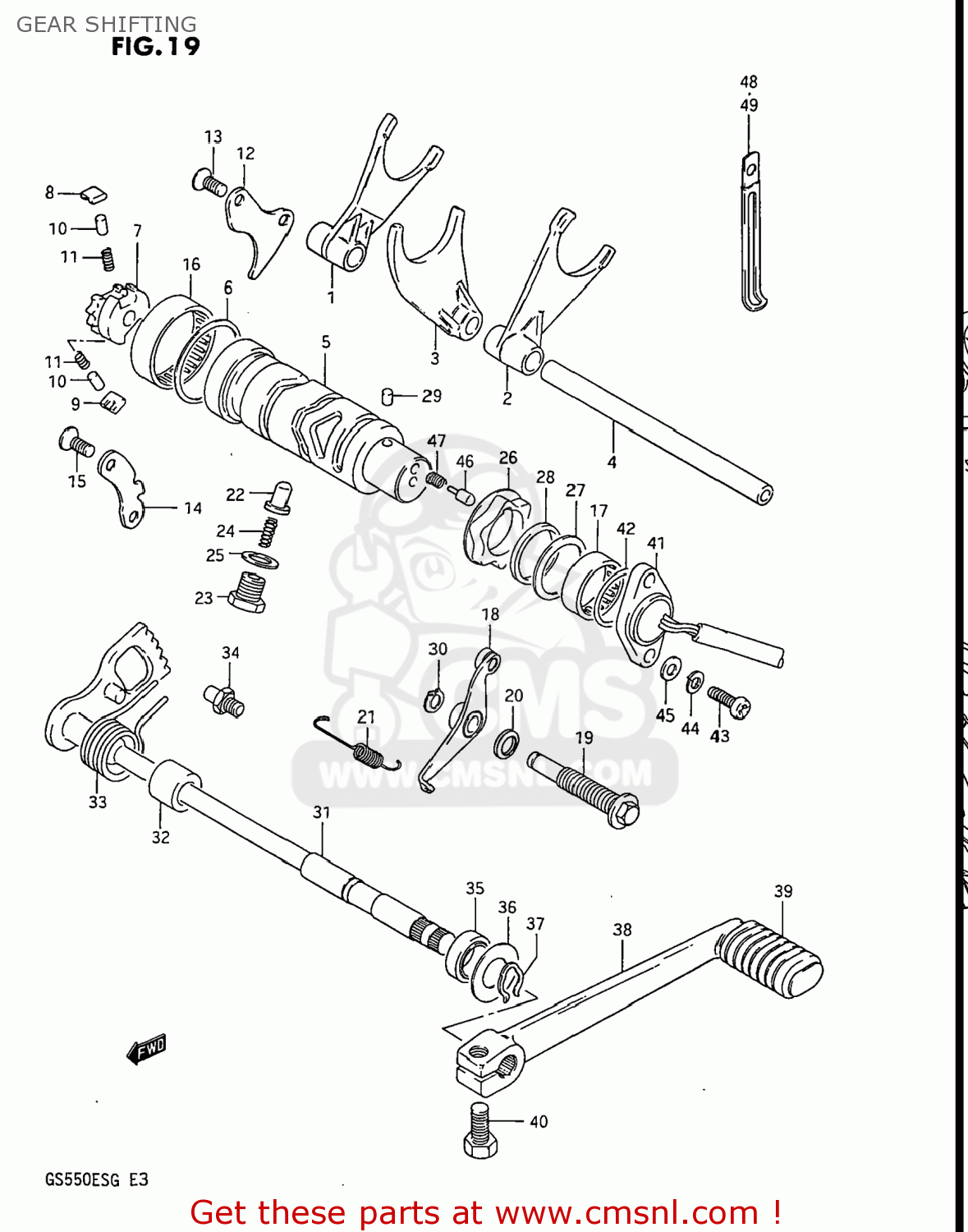

GEAR SHIFTING

ref

onderdeelnr

omschrijving

hoeveelheid

1

2521143400
ref: 1
25211-43401

FORK,GEAR SHIFT NO.1

€ 33.50

2

2522143400
ref: 2
25221-43401

FORK,GEAR SHIFT NO.2

€ 65.50

3

2523143400
ref: 3
25231-43401

FORK,GEAR SHIFT NO.3

€ 22.00

4

2541115501
ref: 4
25411-15510

SHAFT,GEAR SHIFT FORK

€ 15.50

5

2531043400
ref: 5

CAM,GEAR SHIFT

€ 116.50

6

0916040006
ref: 6

WASHER (40X49X1)

€ 1.50

7

2532231301
ref: 7
25322-31310

GEAR,GEARSHIFT CAM DRIVE

€ 15.00

8

2532334200
ref: 8
25323-34201

PAWL,GEAR SHIFT NO.1

€ 5.50

9

2532434200
ref: 9
25324-34201

PAWL,GEAR SHIFT NO.2

€ 5.50

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533115500
ref: 12
25331-15501

LIFTER,GEAR SHIFT PAWL

€ 3.00

13

0212206128
ref: 13
02122-06127

SCREW

€ 2.00

14

2534143400
ref: 14

GUIDE,GEAR SHIFT CAM

€ 4.50

15

0212206128
ref: 15
02122-06127

SCREW

€ 2.00

16

0926343001
ref: 16

BEARING(43X49X12)

€ 26.50

17

0926325018
ref: 17

BEARING(25X32X12)

€ 14.00

18

2535043400
ref: 18

STOPPER,GEAR SHIFTING

€ 11.50

19

2535343400
ref: 19

HOLDER,SHIFTING CAM STOPPER

€ 0.00

20

0916810002
ref: 20

GASKET(10X14X3.6) (NAS)

€ 1.50

21

0944308032
ref: 21

SPRING

€ 2.50

22

2535131302
ref: 22
25351-30010

STOPPER,GEAR SHIFTING

€ 7.00

23

2535430000
ref: 23

HOLDER,GEAR SHIFT CAM STOP SPR

€ 7.00

24

0944006027
ref: 24

SPRING

€ 3.00

25

0916814004
ref: 25

GASKET(14X19.2X2) (NAS)

€ 2.00

26

2538104700
ref: 26

PLATE,GEAR SHIFT CAM STOPPER

€ 13.00

27

0821125321
ref: 27

WASHER

€ 3.00

28

0821225305
ref: 28

WASHER

€ 0.00

29

0621104063
ref: 29
04221-04069

PIN 4X6

€ 1.50

30

0833131086
ref: 30
08331-3108A

CIRCLIP

€ 1.50

31

2551043400
ref: 31
25510-434V0

SHAFT,GEAR SHIFT

€ 63.00

32

0918012068
ref: 32

SPACER(12X20X15.3)

€ 3.00

33

0944426013
ref: 33

SPRING

€ 3.50

34

2567101000
ref: 34
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.50

35

0928512002
ref: 35
09285-12006

OIL SEAL

€ 5.50

36

0916012020
ref: 36
09160-12089

WASHER (12.5X27X1.6)

€ 2.00

37

0938412001
ref: 37
08331-3112A

SPRING,RETAINER

€ 1.50

38

2560043402
ref: 38
25600-45130

LEVER ASSEMBLY,GEAR SHIFTING

€ 50.00

39

2565249300
ref: 39

RUBBER,PEDAL

€ 5.00

40

0110708208
ref: 40
01500-08207

BOLT

€ 3.00

41

3772043400
ref: 41

TERMINAL BASE ASSY,GEAR SHIFT

€ 59.00

42

0928026003
ref: 42
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.00

43

0912505102
ref: 43

SCREW(5X14)

€ 1.50

44

0832121057
ref: 44
08321-0105A

LOCK WASHER

€ 2.00

45

0832221058
ref: 45
08322-01057

WASHER

€ 2.00

46

0920905011
ref: 46

PIN(5X15.5)

€ 1.50

47

0944004010
ref: 47

SPRING

€ 1.50

48

0940406401
ref: 48
09404-06432

CLAMP L:35

€ 2.00

49

0940406415
ref: 49
09404-06433

CLAMP

€ 3.00
