De online onderdelen catalogus

FRONT WHEEL (DL650K7/K8/K9)

DL650 VSTROM 2008 (K8) USA (E03)

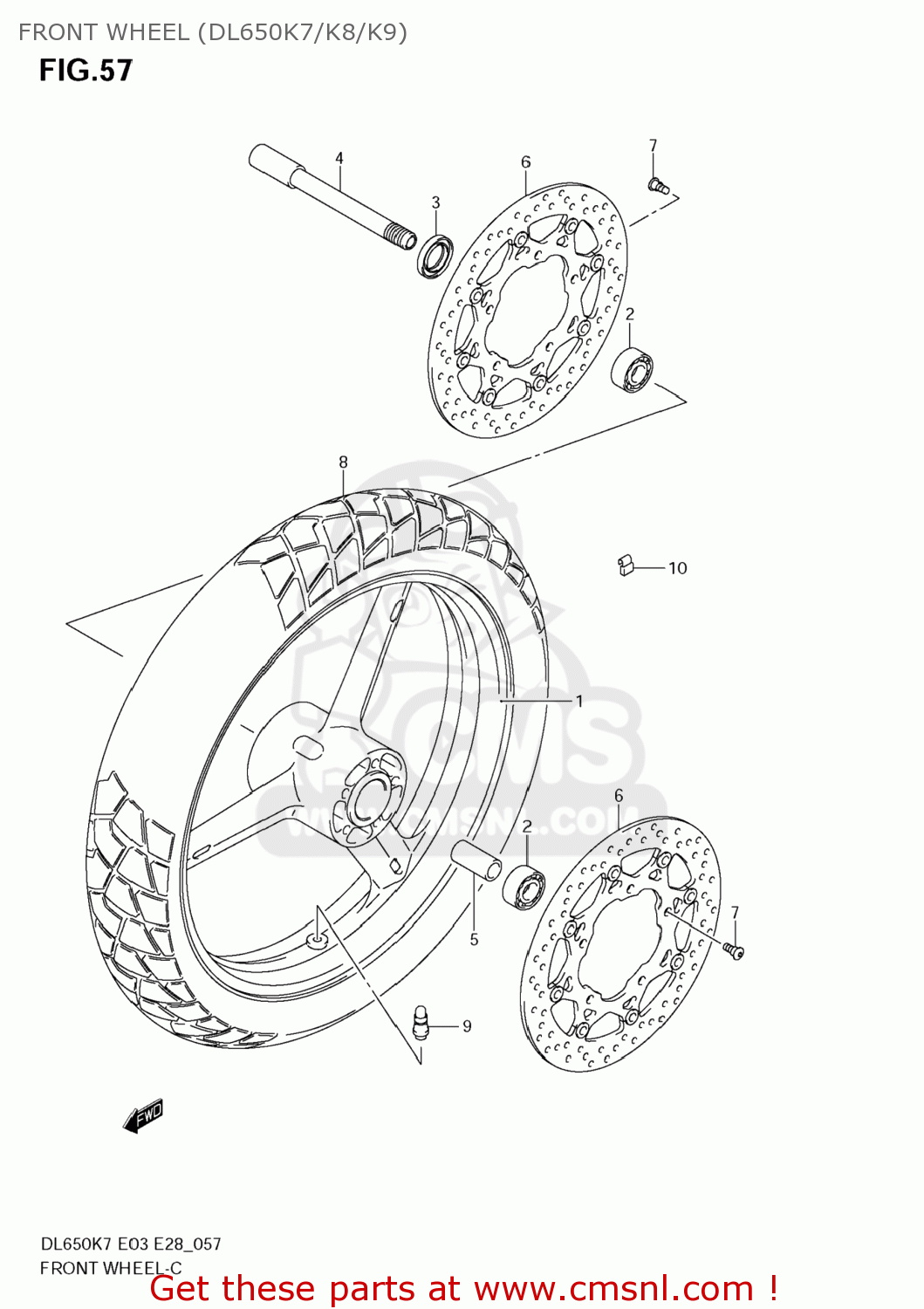

Front wheel (dl650k7/k8/k9) technisch schema DL650 VSTROM 2008 (K8) USA (E03)

FRONT WHEEL (DL650K7/K8/K9) DL650 VSTROM 2008 (K8) USA (E03)
FRONT WHEEL (DL650K7/K8/K9) DL650 VSTROM 2008 (K8) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1-1
5411127G10019
ref: 1-1
54111-27G30-019
WHEEL,FR(19M/C
€ 828.00
1-1
5411127G10019
ref: 1-1
54111-27G30-019
WHEEL,FR(19M/C
€ 828.00
1-2
5411127G10YD8
ref: 1-2
WHEEL FR SILVER
€ 944.00
1-2
5411127G10YD8
ref: 1-2
WHEEL FR SILVER
€ 944.00
2
0813362037
ref: 2
BEARING
0813362037
€ 19.50
3
0928522004
ref: 3
SEAL,OIL(22X40X7)
0928522004
€ 4.50
4
5471108F00
ref: 4
AXLE,FR
5471108F00
€ 63.00
5
0918017067
ref: 5
SPACER(17.5X25X88)
0918017067
€ 13.50
6
5921044G10
ref: 6
59210-44G11
DISC,FRONT BRA
€ 178.00
7
0910608160
ref: 7
BOLT(8X21)
0910608160
€ 3.00
8
5511006G10
ref: 8
TIRE,FRONT,110
5511006G10
€ 166.00
8
5511006G10
ref: 8
TIRE,FRONT,110
5511006G10
€ 166.00
9
4313024A00
ref: 9
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 6.50
10-1
4322273H10
ref: 10-1
WEIGHT,WHEEL BALANCE 10G
4322273H10
€ 4.00
10-2
4322473H10
ref: 10-2
WEIGHT,WHEEL BALANCE 20G
4322473H10
€ 5.00
10-3
4322673H10
ref: 10-3
WEIGHT,WHEEL BALANCE 30G
€ 6.00
