CAM CHAIN

DL650 VSTROM 2008 (K8) USA (E03)

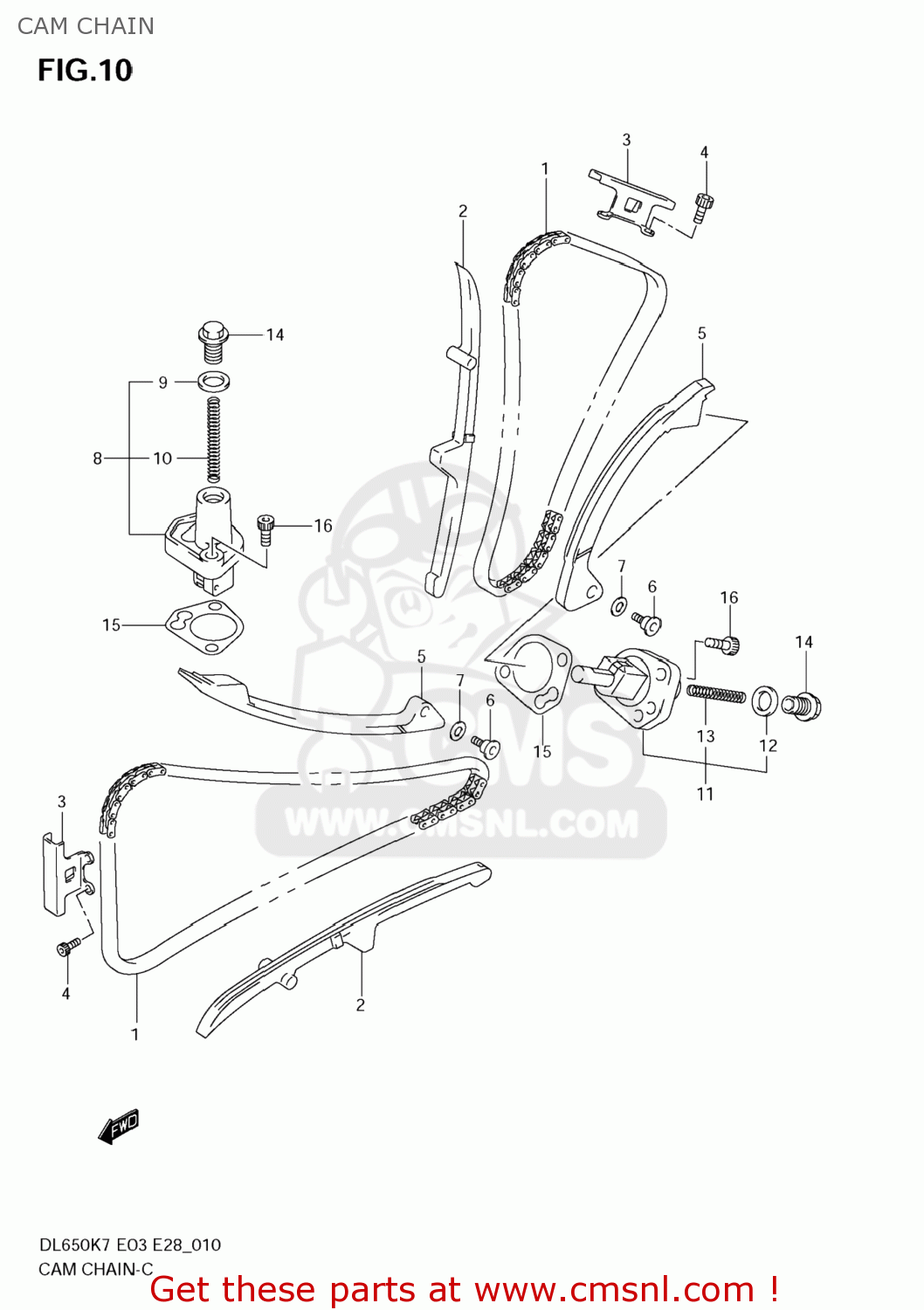

Cam chain technisch schema DL650 VSTROM 2008 (K8) USA (E03)

CAM CHAIN DL650 VSTROM 2008 (K8) USA (E03)
CAM CHAIN DL650 VSTROM 2008 (K8) USA (E03)
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
1
1276019F01
ref: 1
CHAIN,CAMSHAFT DRIVE
1276019F01
€ 113.00
2
1277119F00
ref: 2
GUIDE,CAM CHAIN NO.1
1277119F00
€ 36.00
3
1278219F00
ref: 3
GUIDE,CAM CHAIN NO.2
€ 27.00
4
071300612B
ref: 4
BOLT
071300612B
€ 3.00
5
1281117G00
ref: 5
TENSIONER,CAM CHAIN
€ 43.50
6
1281235C00
ref: 6
BOLT,CAM CHAIN TENSIONER
1281235C00
€ 6.50
7
0821106181
ref: 7
WASHER
0821106181
€ 2.00
8
1283027G00
ref: 8
ADJUSTER ASSY,TENSIONER FR
1283027G00
€ 55.50
9
1283724F10
ref: 9
GASKET,TENSIONER ADJUSTER (NAS)
1283724F10
€ 3.50
10
1283139F00
ref: 10
SPRING
1283139F00
€ 3.50
11
1283027G10
ref: 11
ADJUSTER ASSY,TENSIONER RR
1283027G10
€ 71.00
12
1283724F10
ref: 12
GASKET,TENSIONER ADJUSTER (NAS)
1283724F10
€ 3.50
13
1283139F00
ref: 13
SPRING
1283139F00
€ 3.50
14
1283317G00
ref: 14
PLUG,TENSIONER ADJUSTER
1283317G00
€ 4.00
15
1283727G00
ref: 15
GASKET,TENSIONER ADJUSTER (NAS)
1283727G00
€ 3.50
16
071300625B
ref: 16
BOLT
071300625B
€ 2.50
