RADLATOR

ZX500A3 1987 NORWAY AR / KPH

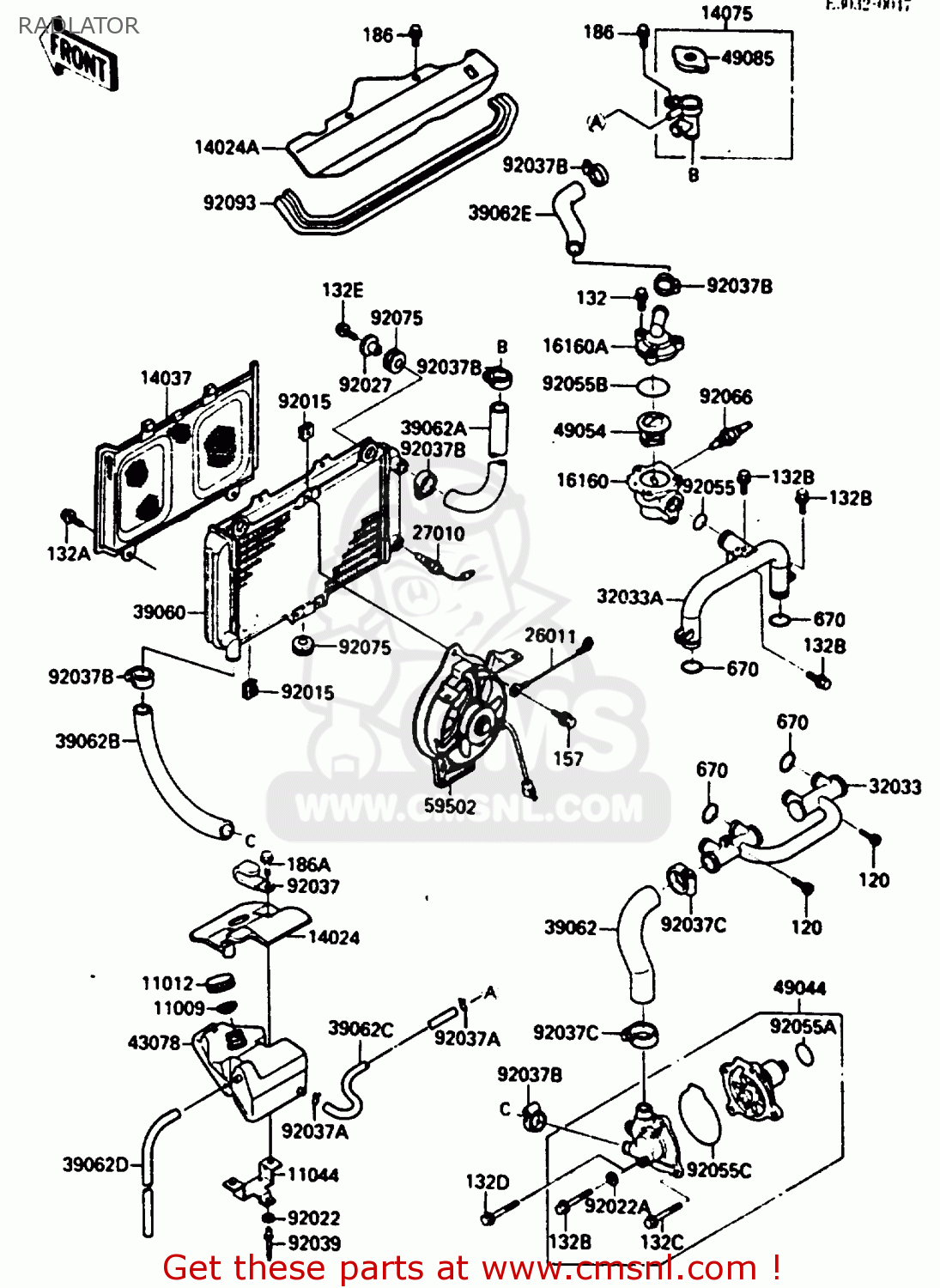

Radlator technisch schema ZX500A3 1987 NORWAY AR / KPH

RADLATOR ZX500A3 1987 NORWAY AR / KPH
RADLATOR ZX500A3 1987 NORWAY AR / KPH
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11044
110441170
ref: 11044
BRACKET,RESERVOIR
110441170
€ 7.00
14024
140241090
ref: 14024
COVER,RESERVOIR
140241090
€ 8.50
14024A
140241137
ref: 14024A
COVER,RADIATOR
140241137
€ 15.50
14037
140371083
ref: 14037
SCREEN
140371083
€ 69.50
14075
140751061
ref: 14075
CAP-ASSY
140751061
€ 119.00
16160
161601092
ref: 16160
BODY,THERMOSTAT,LWR
161601092
€ 43.00
16160A
161601129
ref: 16160A
BODY,THERMOSTAT,UPP
€ 37.00
26011
260111360
ref: 26011
WIRE-LEAD,GROUND
€ 3.00
27010
270101180
ref: 27010
SWITCH,FAN
270101180
€ 97.00
32033
320331593
ref: 32033
PIPE
€ 87.00
32033A
320331594
ref: 32033A
PIPE
€ 68.50
39060
390601067
ref: 39060
RADIATOR
390601067
€ 557.00
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
390621111
€ 20.00
39062A
390621113
ref: 39062A
HOSE-COOLING
€ 12.00
39062B
390621114
ref: 39062B
HOSE-COOLING
390621114
€ 23.00
39062C
390621115
ref: 39062C
HOSE-COOLING
€ 17.00
39062D
390621116
ref: 39062D
HOSE-COOLING
€ 17.00
39062E
390621130
ref: 39062E
HOSE-COOLING
390621130
€ 11.00
43078
430781062
ref: 43078
RESERVOIR
430781062
€ 30.50
49044
490441054
ref: 49044
PUMP-WATER
490441054
€ 274.50
49054
490541055
ref: 49054
THERMOSTAT
490541055
€ 36.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
490851003
€ 22.00
59502
595021057
ref: 59502
FAN-ASSY
595021057
€ 397.00
92015
920151487
ref: 92015
NUT
920151487
€ 2.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
25009004
€ 2.50
92022A
920221627
ref: 92022A
WASHER,6MM
920221627
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
920271134
€ 6.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.00
92037B
920371589
ref: 92037B
CLAMP,COOLING HOSE
920371589
€ 12.00
92037C
920371600
ref: 92037C
CLAMP,COOLING HOSE
€ 4.00
92039
920391038
ref: 92039
RIVET
920391038
€ 2.00
92055
920551081
ref: 92055
RING-O,FORK TOP
920551081
€ 2.50
92055A
920551266
ref: 92055A
RING-O,33.8MM
920551266
€ 11.00
92055B
920551279
ref: 92055B
RING-O,45MM
920551279
€ 4.00
92055C
920551315
ref: 92055C
RING-O,WATER PUMP
920551315
€ 7.50
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 36.00
92075
920751569
ref: 92075
DAMPER,HEAD LAMP FITT
920751569
€ 3.00
92093
920931189
ref: 92093
SEAL,RADIATOR COVER
920931189
€ 10.00
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
132E0620
€ 3.00
132A
132W0610
ref: 132A
BOLT-FLANGED-SMALL
132W0610
€ 1.50
132B
132W0612
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132W0625
ref: 132C
BOLT-FLANGED-SMALL
132W0625
€ 2.50
132D
132W0645
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132W0825
ref: 132E
BOLT-FLANGED-SMALL
132W0825
€ 2.00
157
157J0616
ref: 157
BOLT-WSP
€ 1.00
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0650
ref: 186A
BOLT-UPSET-WP
€ 2.00
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
