FRONT FORK

ZX500A3 1987 NORWAY AR / KPH

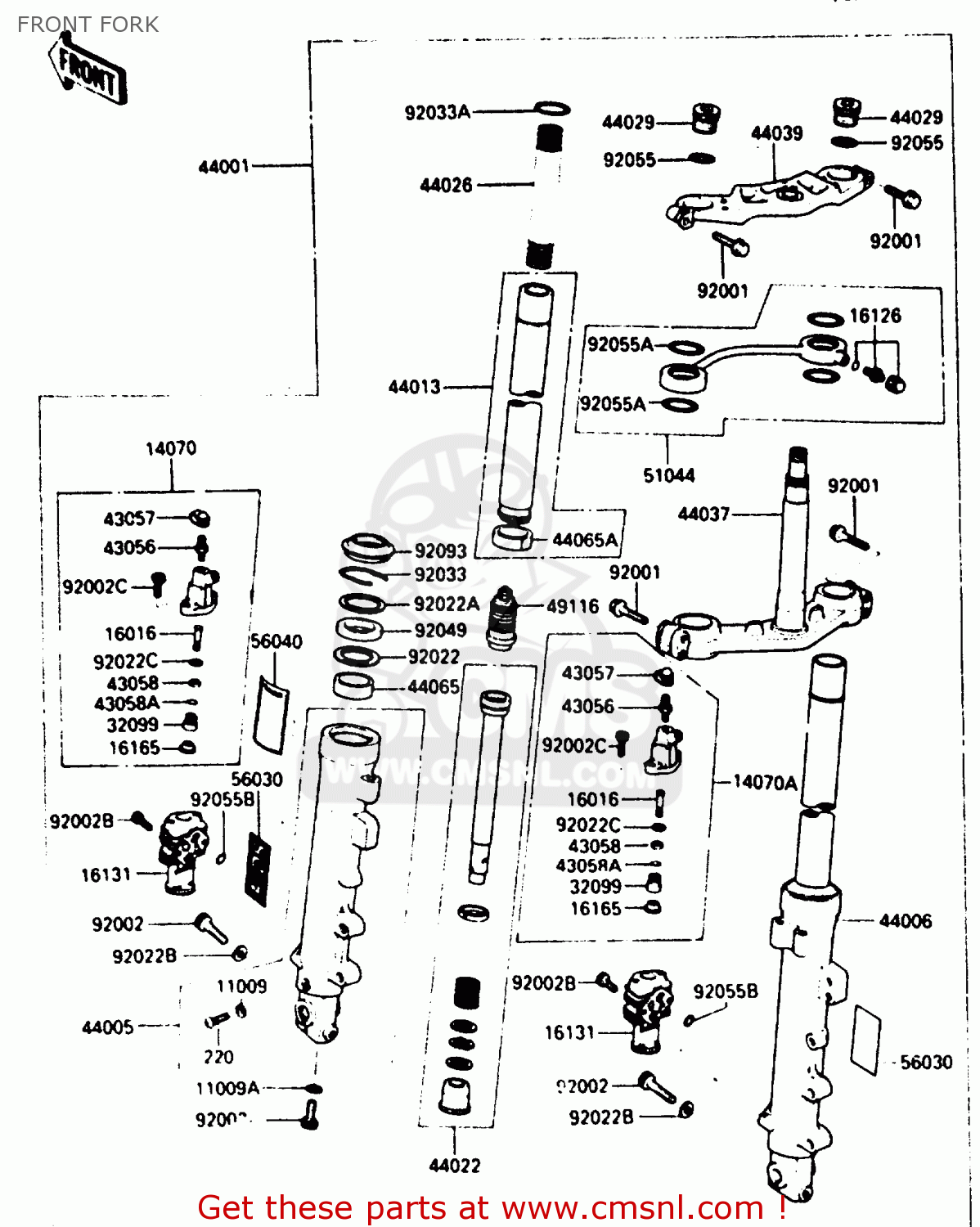

Front fork technisch schema ZX500A3 1987 NORWAY AR / KPH

FRONT FORK ZX500A3 1987 NORWAY AR / KPH
FRONT FORK ZX500A3 1987 NORWAY AR / KPH
prijzen zijn in EUR
ref
onderdeelnr
omschrijving
hoeveelheid
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
44045057
€ 3.00
14070
140701059
ref: 14070
BODY-BREATHER,ANTI-DI
140701059
€ 166.00
14070A
140701060
ref: 14070A
BODY-BREATHER,ANTI-DI
140701060
€ 166.00
16016
160161067
ref: 16016
PLUNGER,ANTI-DIVE
160161067
€ 23.00
16126
161261052
ref: 16126
VALVE,AIR
161261052
€ 20.50
16131
161311058
ref: 16131
BODY-VALVE,FORK,ANTI-
161311058
€ 133.00
16165
161651051
ref: 16165
SEPARATOR,ANTI-DIVE
161651051
€ 5.50
32099
320991067
ref: 32099
CASE,PLUG,ANTI-DIVE
320991067
€ 27.50
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 15.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43058
430581052
ref: 43058
RING,SEAL,14X18X2.5
430581052
€ 3.50
43058A
430581053
ref: 43058A
RING,SEAL,6.2X11X3.2
430581053
€ 2.50
44001
440011661
ref: 44001
FORK FRONT
€ 2,172.50
44005
440051232
ref: 44005
PIPE-LEFT FORK OUTER
440051232
€ 271.00
44006
440061232
ref: 44006
PIPE-RIGHT FORK OUTER
440061232
€ 231.50
44013
440131231
ref: 44013
PIPE-FORK INNER
440131231
€ 127.50
44022
440221181
ref: 44022
CYLINDER-FORK
440221181
€ 73.00
44026
440261302
ref: 44026
SPRING-FRONT FORK,K=0
€ 53.00
44029
440291121
ref: 44029
SEAT-FORK SPRING
440291121
€ 22.50
44037
440371180
ref: 44037
HOLDER-FORK UNDER
440371180
€ 195.00
44039
440391157
ref: 44039
HOLDER-FORK UPPER
440391157
€ 102.00
44065
440651051
ref: 44065
BUSHING-FRONT FORK
440651051
€ 14.00
44065A
440651058
ref: 44065A
BUSHING-FRONT FORK,IN
440651058
€ 18.50
49116
491161058
ref: 49116
VALVE-ASSY,FORK
€ 76.00
51044
510441069
ref: 51044
TUBE-ASSY
510441069
€ 73.50
56030
560301057
ref: 56030
LABEL,AVDS MARK
560301057
€ 2.50
56040
560401117
ref: 56040
LABEL-WARNING,SHOCKAB
€ 2.50
92001
920011188
ref: 92001
BOLT,8X40
920011188
€ 5.00
92002
920021316
ref: 92002
BOLT
920021316
€ 3.50
92002A
920021317
ref: 92002A
BOLT
€ 4.50
92002B
920021564
ref: 92002B
BOLT
€ 5.00
92002C
920021565
ref: 92002C
BOLT
€ 5.50
92022
920221455
ref: 92022
WASHER,FORK OUTER PIP
920221455
€ 4.00
92022A
920221524
ref: 92022A
WASHER,FORK OUTER PIP
920221524
€ 3.50
92022B
920221598
ref: 92022B
WASHER
920221598
€ 4.00
92022C
920221636
ref: 92022C
WASHER,6.5X18X1
920221636
€ 2.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
920331047
€ 3.50
92033A
920331202
ref: 92033A
RING-SNAP
920331202
€ 4.50
92049
920491177
ref: 92049
SEAL-OIL,FORK
920491177
€ 14.00
92055
920551051
ref: 92055
ORING,FORK TOP CAP
920551051
€ 3.00
92055A
920551164
ref: 92055A
RING-O,TUBE ASSY
920551164
€ 5.00
92055B
920551201
ref: 92055B
RING-O,AND
920551201
€ 1.00
92093
920931160
ref: 92093
SEAL,FORK
920931160
€ 15.50
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
220E0408
€ 2.50
